Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXND5050WDL4R7MMGFIXED IND 4.7UH 2A 55 MOHM SMD |
2,239 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 2 A | 2.7A | Shielded | 66mOhm Max | - | 37MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
ASPI-5040S-3R3N-TFIXED IND 3.3UH 3.8A 27 MOHM |
2,021 |
|
Datasheet |
ASPI-5040S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 3.3 A | 3.8A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
BWVH002016102R2TH1INDUCTOR POWER |
2,000 |
|
Datasheet |
BWVH | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 970 mA | 1.2A | Shielded | 205mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.040" (1.02mm) |
|
LSBHB1608KKTR68NGFIXED IND 680NH 1.2A 120MOHM SMD |
2,000 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±30% | 1.2 A | 950mA | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
SDET32251B-3R3MSIND SMD 3.3UH SEALED CHOKE |
2,000 |
|
Datasheet |
SDET32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.17 A | 1.53A | Shielded | 246mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
NLV25T-3R9J-EFDFIXED IND 3.9UH 180MA 2.1OHM SMD |
1,700 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 180 mA | - | Unshielded | 2.1Ohm Max | 30 @ 7.96MHz | 48MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AOTA-B201610SR68MTIND 0.68UH 3.5A 35M |
1,650 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 3.5 A | 4.8A | Shielded | 35mOhm Max | - | 68MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
AOTA-B201610SR47MTIND 0.47UH 4.8A 21M |
1,612 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 4.8 A | 5.6A | Shielded | 21mOhm Max | - | 72MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSXND5050YAL6R8MMGFIXED IND 6.8UH 2.4A 63.7MOHM SM |
1,553 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 2.4 A | 2.8A | Shielded | 63.7mOhm Max | - | 21MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LSXND5050YKL470MMGFIXED IND 47UH 900MA 403MOHM SMD |
1,507 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 900 mA | 1.1A | Shielded | 403mOhm Max | - | 6MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
|
LQW2UAS6R8J0CLFIXED IND 6.8UH 200MA 4.9OHM SMD |
1,456 |
|
Datasheet |
LQW15 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 6.8 µH | ±5% | 200 mA | - | Unshielded | 4.9Ohm Max | 18 @ 7.9MHz | 40MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
AOTA-B201610S1R5MTIND 1.5UH 2.8A 74M |
1,245 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.8 A | 3.2A | Shielded | 74mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
BKPB002016104R7MA6INDUCTOR POWER |
23,940 |
|
Datasheet |
BKPB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 800 mA | 200mA | Shielded | 210mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
BWVC00201612150M00INDUCTOR POWER |
9,785 |
|
Datasheet |
BWVC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 400 mA | 430mA | Shielded | 900mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.049" (1.25mm) |
|
|
BWVF00303015470M00INDUCTOR POWER |
9,552 |
|
Datasheet |
BWVF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 370 mA | 460mA | Shielded | 1.5Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
AISC-0402HP-2N0B-TFIXED IND 2NH 2.1A 38 MOHM SMD |
6,710 |
|
Datasheet |
AISC-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±0.2nH | 2.1 A | - | Unshielded | 38mOhm Max | 22 @ 250MHz | 8.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|

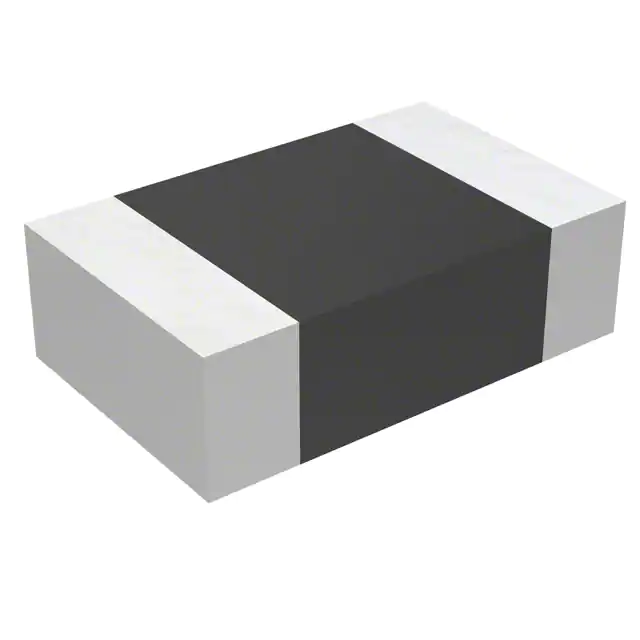

ASMPL-0805-1R0M-TFIXED IND 1UH 800MA 238 MOHM SMD |
4,676 |
|
Datasheet |
ASMPL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1 µH | ±20% | 800 mA | 700mA | Unshielded | 238mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
L02011R8BHSTRFIXED INDUCTOR |
4,555 |
|
Datasheet |
Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.8 nH | ±0.1nH | 250 mA | - | Unshielded | 500mOhm | 7 @ 450MHz | 20GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 | 0.024" L x 0.013" W (0.60mm x 0.33mm) | 0.011" (0.28mm) |
|
|
ASMPL-0805-2R2M-TFIXED IND 2.2UH 600MA 400MOHM SM |
4,404 |
|
Datasheet |
ASMPL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 µH | ±20% | 600 mA | 350mA | Unshielded | 400mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
LQH32MN100K23LFIXED IND 10UH 190MA 1.8 OHM SMD |
4,000 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 190 mA | - | Unshielded | 1.8Ohm Max | 35 @ 1MHz | 20MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
