Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOTA-B201208SR33MTIND 0.33UH 4A 28MOHM |
2,915 |
|
Datasheet |
AOTA-B201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 4 A | 5.6A | Shielded | 28mOhm Max | - | 125MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
LSQPB160807T4R7MFIXED IND 4.7UH 310MA 1.3OHM SMD |
2,800 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 310 mA | 240mA | Unshielded | 1.3Ohm Max | - | 150MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
NLCV32T-331K-EFDFIXED IND 330UH 70MA 15.99OHM SM |
2,750 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 70 mA | - | Unshielded | 15.99Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
AISC-1008-R22G-TFIXED IND 220NH 500MA 800MOHM SM |
2,738 |
|
Datasheet |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 500 mA | - | Unshielded | 800mOhm Max | 50 @ 100MHz | 630MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AOTA-B252008S1R0MTFIXED IND 1.0UH 3.5A 46MOHM SMD |
2,700 |
|
Datasheet |
AOTA-B252008S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.5 A | 4.3A | Shielded | 46mOhm Max | - | 56MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
AOTA-B201610SR33MTIND 0.33UH 4.8A 21M |
2,670 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 4.8 A | 6.8A | Shielded | 21mOhm Max | - | 110MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
AOTA-B201608SR47MTFIXED IND 0.47UH 3.6A 24MOHM SMD |
2,665 |
|
Datasheet |
AOTA-B201608S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.6 A | 5A | Shielded | 24mOhm Max | - | 104MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|

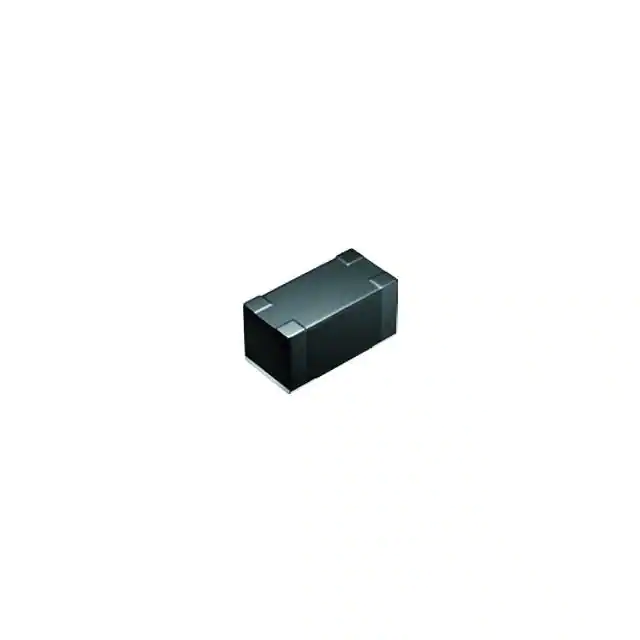

LSQPB160808T1R0M06FIXED IND 1UH 680MA 188 MOHM SMD |
2,599 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 680 mA | 890mA | Unshielded | 188mOhm | - | 550MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
AOTA-B201208SR11MTIND 0.11UH 5.6A 13MOHM |
2,560 |
|
Datasheet |
AOTA-B201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 110 nH | ±20% | 5.6 A | 10A | Shielded | 13mOhm Max | - | 185MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
AOTA-B201608S2R2MTFIXED IND 2.2UH 1.8A 148MOHM SMD |
2,550 |
|
Datasheet |
AOTA-B201608S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.8 A | 2.3A | Shielded | 148mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
AOTA-B201610S4R7MTIND 4.7UH 1.3A 235M |
2,504 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.3 A | 1.6A | Shielded | 235mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSXND5050WDL330MMGFIXED IND 33UH 630MA 370MOHM SMD |
2,500 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±20% | 630 mA | 1A | Shielded | 444mOhm Max | - | 11MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
|
AOTA-B201208SR47MTIND 0.47UH 4A 25MOHM |
2,495 |
|
Datasheet |
AOTA-B201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 4 A | 45A | Shielded | 25mOhm Max | - | 96MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
LSXND5050WDL2R2NMGFIXED IND 2.2UH 3.1A 29 MOHM SMD |
2,485 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3.1 A | 4.1A | Shielded | 34.8mOhm Max | - | 51MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
LSXND5050WDL220MMGFIXED IND 22UH 820MA 230MOHM SMD |
2,485 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 820 mA | 1.2A | Shielded | 276mOhm Max | - | 15MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
LSXND5050WDL100MMGFIXED IND 10UH 1.2A 125 MOHM SMD |
2,480 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.7A | Shielded | 150mOhm Max | - | 21MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
LSXND5050WDL6R8MMGFIXED IND 6.8UH 1.6A 80 MOHM SMD |
2,475 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.6 A | 2.2A | Shielded | 96mOhm Max | - | 28MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
|
AOTA-B252008S100MTFIXED IND 10UH 0.95A 570MOHM SMD |
2,430 |
|
Datasheet |
AOTA-B252008S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 950 mA | 1.2A | Shielded | 570mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
LSQPB160808TR60M06FIXED IND 600NH 940MA 99MOHM SMD |
2,407 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 600 nH | ±20% | 940 mA | 1.1A | Unshielded | 99mOhm | - | 630MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSXND5050WDL150MMGFIXED IND 15UH 1A 170 MOHM SMD |
2,350 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1 A | 1.4A | Shielded | 204mOhm Max | - | 18MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
