Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-1008-R75G-TFIXED IND 750NH 360MA 1.54OHM SM |
4,000 |
|
Datasheet |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 750 nH | ±2% | 360 mA | - | Unshielded | 1.54Ohm Max | 45 @ 100MHz | 360MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
NLV25T-270J-EFDFIXED IND 27UH 115MA 6.3 OHM SMD |
4,000 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 115 mA | - | Unshielded | 6.3Ohm Max | 25 @ 2.52MHz | 21MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-R82J-EFDFIXED IND 820NH 260MA 1 OHM SMD |
3,990 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±5% | 260 mA | - | Unshielded | 1Ohm Max | 30 @ 25.2MHz | 260MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLV32T-1R5J-EFDFIXED IND 1.5UH 370MA 850MOHM SM |
3,900 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 370 mA | - | Unshielded | 850mOhm Max | 30 @ 7.96MHz | 85MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISC-1008HQ-10NJ-TFIXED IND 10NH 1.3A 80 MOHM SMD |
3,886 |
|
Datasheet |
AISC-1008HQ | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 1.3 A | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 3.6GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
NLV25T-R68J-EFDFIXED IND 680NH 300MA 850MOHM SM |
3,870 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±5% | 300 mA | - | Unshielded | 850mOhm Max | 30 @ 25.2MHz | 300MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV25T-680J-EFDFIXED IND 68UH 70MA 16.6 OHM SMD |
3,828 |
|
Datasheet |
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 70 mA | - | Unshielded | 16.6Ohm Max | 20 @ 2.52MHz | 15MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLCV32T-R22M-EFRDFIXED IND 220NH 2.4A 32.4MOHM SM |
3,715 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 2.4 A | - | Unshielded | 32.4mOhm Max | 10 @ 25.2MHz | 400MHz | AEC-Q200 | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ADCC00201612R47MC1FIXED IND 470NH 3.9A 0.03OHM SMD |
3,195 |
|
Datasheet |
ADCC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 3.9 A | 4.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LSQPB160808TR45MFIXED IND 450NH 800MA 90MOHM SMD |
3,000 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 450 nH | ±20% | 800 mA | 1.25A | Unshielded | 117mOhm Max | - | 200MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSXND5050YAL2R2NMGFIXED IND 2.2UH 3.7A 28.6MOHM SM |
3,000 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3.7 A | 5A | Shielded | 28.6mOhm Max | - | 42MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LSQPB160808TR20MFIXED IND 200NH 980MA 60MOHM SMD |
2,990 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 200 nH | ±20% | 980 mA | 1.75A | Unshielded | 78mOhm Max | - | 400MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

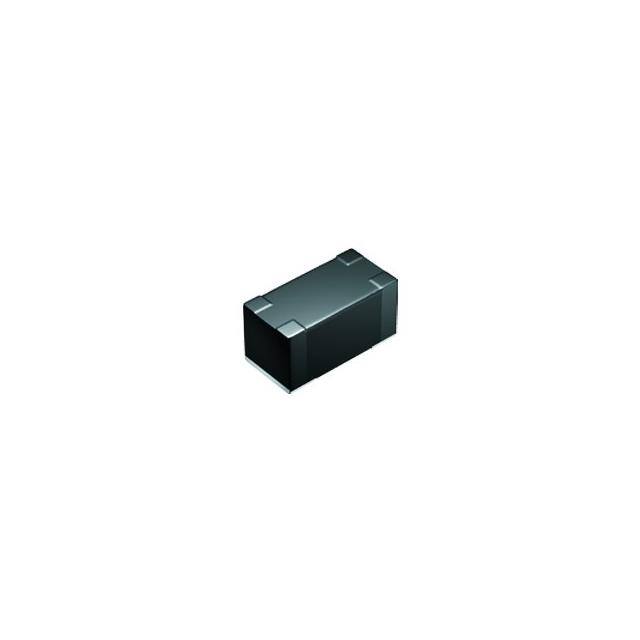

LSQPB160808T1R0MFIXED IND 1UH 520MA 234 MOHM SMD |
2,988 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 520 mA | 850mA | Unshielded | 234mOhm Max | - | 140MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB160808TR77MFIXED IND 770NH 660MA 110MOHM SM |
2,980 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 770 nH | ±20% | 660 mA | 1A | Unshielded | 143mOhm Max | - | 150MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB160808TR72M06FIXED IND 720NH 810MA 144MOHM SM |
2,980 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 720 nH | ±20% | 810 mA | 1A | Unshielded | 187.2mOhm Max | - | 600MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB160808TR43M06FIXED IND 430NH 1.1A 82 MOHM SMD |
2,970 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 430 nH | ±20% | 1.1 A | 1.4A | Unshielded | 82mOhm | - | 740MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB160808TR50M06FIXED IND 500NH 1.05A 90MOHM SMD |
2,952 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 500 nH | ±20% | 1.05 A | 1.2A | Unshielded | 117mOhm Max | - | 710MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB160807T150MFIXED IND 15UH 200MA 3.328OHM SM |
2,940 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 200 mA | 150mA | Unshielded | 3.328Ohm Max | - | 32MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
AOTA-B201208SR24MTIND 0.24UH 5.4A 19MOHM |
2,925 |
|
Datasheet |
AOTA-B201208S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 5.4 A | 6.5A | Shielded | 19mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
AOTA-B201610SR24MTIND 0.24UH 5A 15M |
2,915 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 5 A | 7A | Shielded | 15mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
