Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWVC002016102R2M00INDUCTOR POWER |
4,000 |
|
Datasheet |
BWVC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 1.17 A | 1.17A | Shielded | 190mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
BWVF00303015101M00INDUCTOR POWER |
3,990 |
|
Datasheet |
BWVF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 270 mA | 320mA | Shielded | 2.7Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
NLCV32T-R33M-EFRDFIXED IND 330NH 2.1A 42 MOHM SMD |
3,970 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 2.1 A | - | Unshielded | 42mOhm Max | 10 @ 25.2MHz | 300MHz | AEC-Q200 | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LQH32CNR15M33LFIXED IND 150NH 1.45A 36.4 MOHM |
3,543 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 1.45 A | - | Unshielded | 36.4mOhm Max | - | 400MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32CN101K53LFIXED IND 100UH 100MA 4.55OHM SM |
3,207 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 100 mA | - | Unshielded | 4.55Ohm Max | - | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQH32MN1R0M23LFIXED IND 1UH 445MA 500 MOHM SMD |
3,100 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 445 mA | - | Unshielded | 500mOhm Max | 20 @ 1MHz | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32MN470J23LFIXED IND 47UH 100MA 4.3 OHM SMD |
3,032 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 100 mA | - | Unshielded | 4.3Ohm Max | 40 @ 1MHz | 11MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LSBHB1608KKT2R2MGFIXED IND 2.2UH 750MA 345MOHM SM |
2,960 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 750 mA | 520mA | Unshielded | 345mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB160807T1R5MFIXED IND 1.5UH 590MA 364MOHM SM |
2,915 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 590 mA | 440mA | Unshielded | 364mOhm Max | - | 600MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
LSQPB251812T1R0MFIXED IND 1UH 1A 104 MOHM SMD |
2,815 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 1 A | 1.6A | Unshielded | 104mOhm Max | - | 130MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.047" (1.20mm) |
|

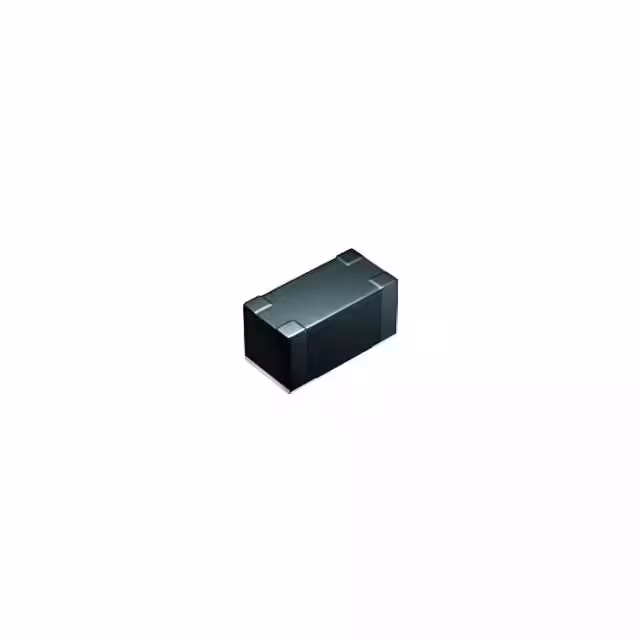

LSQPB160808TR82M06FIXED IND 820NH 730MA 176MOHM SM |
2,770 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 nH | ±20% | 730 mA | 950mA | Unshielded | 17.6mOhm | - | 560MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB160807T2R2MFIXED IND 2.2UH 500MA 520MOHM SM |
2,740 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 500 mA | 360mA | Unshielded | 520mOhm Max | - | 400MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
LSQPB160807T3R3MFIXED IND 3.3UH 390MA 650MOHM SM |
2,633 |
|
- |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 390 mA | 290mA | Unshielded | 845mOhm Max | - | 300MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
|
LQH32MN2R2K23LFIXED IND 2.2UH 370MA 800MOHM SM |
2,003 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 370 mA | - | Unshielded | 800mOhm Max | 20 @ 1MHz | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32MN391J23LFIXED IND 390UH 50MA 22 OHM SMD |
2,000 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 50 mA | - | Unshielded | 22Ohm Max | 50 @ 796kHz | 5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32MN470K23LFIXED IND 47UH 100MA 4.3 OHM SMD |
2,000 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 100 mA | - | Unshielded | 4.3Ohm Max | 40 @ 1MHz | 11MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
IMC1008ER1R5JFIXED IND 1.5UH 220MA 1.65OHM SM |
2,000 |
|
Datasheet |
IMC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 220 mA | - | Unshielded | 1.65Ohm Max | 20 @ 7.96MHz | 250MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
LQH32MN181J23LFIXED IND 180UH 65MA 10.2OHM SMD |
2,000 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 65 mA | - | Unshielded | 10.2Ohm Max | 40 @ 796kHz | 6MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32MN680J23LFIXED IND 68UH 80MA 5.5 OHM SMD |
2,000 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 80 mA | - | Unshielded | 5.5Ohm Max | 40 @ 1MHz | 9MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQH32MN820J23LFIXED IND 82UH 70MA 6.2 OHM SMD |
2,000 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 70 mA | - | Unshielded | 6.2Ohm Max | 40 @ 1MHz | 8.5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
