Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTEG20161B-R47MDRIND SMD 0.47U HOT PRESSED CHOKE |
2,000 |
|
Datasheet |
HTEG20161B | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 5.1 A | 6A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
HMLE25201D-3R3MSRIND SMD 3.3UH HOT PRESSED CHOKE |
2,000 |
|
Datasheet |
HMLE25201D | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 1.7 A | 2.1A | Unshielded | 128mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.055" (1.40mm) |
|
|
HTEG25201B-2R2MIRIND SMD 2.2UH HOT PRESSED CHOKE |
1,988 |
|
Datasheet |
HTEG25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.3 A | 3.7A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
744760133AFIXED IND 33NH 500MA 150MOHM SMD |
1,980 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 500 mA | - | Unshielded | 150mOhm Max | 60 @ 500MHz | 2.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|

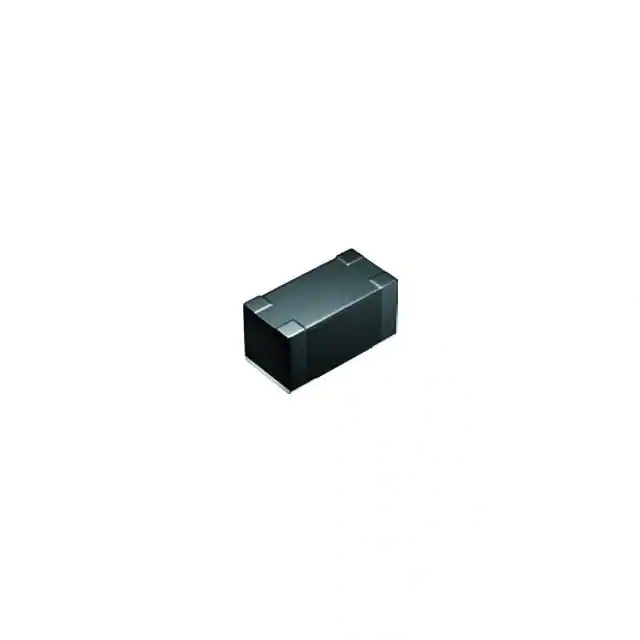

LSQPB251818T101KFIXED IND 100UH 190MA 3.6OHM SMD |
1,975 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 190 mA | 300mA | Unshielded | 4.68Ohm Max | - | 4.5MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
LQH32DN330K53LFIXED IND 33UH 200MA 1.43OHM SMD |
1,973 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 200 mA | 200mA | Unshielded | 1.43Ohm Max | - | 17MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LQW2UAS56NG00LFIXED IND 56NH 1A 180 MOHM SMD |
1,965 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±2% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
LSQPB251815T2R2MFIXED IND 2.2UH 1A 149.5MOHM SMD |
1,955 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.5A | Unshielded | 149.5mOhm Max | - | 300MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.059" (1.50mm) |
|
LSQPB251818T470KFIXED IND 47UH 300MA 1.885OHM SM |
1,937 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 300 mA | 410mA | Unshielded | 1.885Ohm Max | - | 6.5MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
LQH32DN220K23LFIXED IND 22UH 250MA 923MOHM SMD |
1,900 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 250 mA | - | Unshielded | 923mOhm Max | - | 19MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LSQPB201214T3R3MDFIXED IND 3.3UH 870MA 221MOHM SM |
1,882 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 870 mA | 800mA | Unshielded | 221mOhm Max | - | 300MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
LQW2UASR68G00LFIXED IND 680NH 400MA 1.47OHM SM |
1,854 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±2% | 400 mA | - | Unshielded | 1.47Ohm Max | 45 @ 100MHz | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR22G00LFIXED IND 220NH 500MA 840MOHM SM |
1,852 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±2% | 500 mA | - | Unshielded | 840mOhm Max | 45 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
LSQPB201214T1R5MDFIXED IND 1.5UH 1.1A 117MOHM SMD |
1,840 |
|
- |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.1 A | 1.2A | Unshielded | 117mOhm Max | - | 390MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
LQW2UASR82G00LFIXED IND 820NH 400MA 1.61OHM SM |
1,800 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±2% | 400 mA | - | Unshielded | 1.61Ohm Max | 45 @ 100MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UASR10G00LFIXED IND 100NH 650MA 560MOHM SM |
1,793 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±2% | 650 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
|
LQW2UAS27NG00LFIXED IND 27NH 1A 130 MOHM SMD |
1,772 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 27 nH | ±2% | 1 A | - | Unshielded | 130mOhm Max | 55 @ 350MHz | 1.6GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|

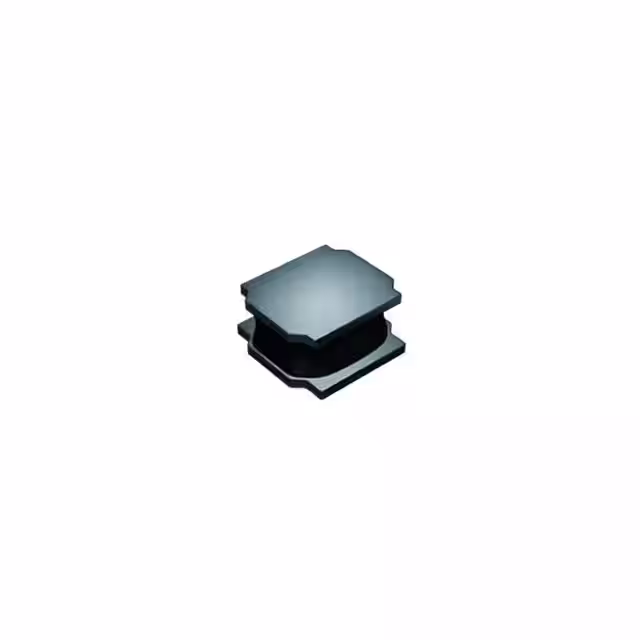

LSXND3030QKT4R7MNGFIXED IND 4.7UH 1.04A 120MOHM SM |
1,729 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.04 A | 1.02A | Shielded | 144mOhm Max | - | 40MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQH32DN390K23LFIXED IND 39UH 200MA 1.56OHM SMD |
1,590 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 200 mA | - | Unshielded | 1.56Ohm Max | - | 16MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
LQW2UASR62G00LFIXED IND 620NH 300MA 1.4OHM SMD |
1,552 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 620 nH | ±2% | 300 mA | - | Unshielded | 1.4Ohm Max | 45 @ 100MHz | 375MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
