Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW2UASR12G00LFIXED IND 120NH 650MA 630MOHM SM |
1,540 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±2% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
744760182AFIXED IND 82NH 500MA 320MOHM SMD |
1,518 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 500 mA | - | Unshielded | 320mOhm Max | 60 @ 500MHz | 1.35GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
LQH32DN4R7M53LFIXED IND 4.7UH 650MA 130MOHM SM |
1,373 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 650 mA | - | Unshielded | 130mOhm Max | - | 43MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
744760156AFIXED IND 56NH 500MA 150MOHM SMD |
1,350 |
|
Datasheet |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 500 mA | - | Unshielded | 150mOhm Max | 60 @ 500MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
LQH32DN100K53LFIXED IND 10UH 450MA 390MOHM SMD |
1,290 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 450 mA | - | Unshielded | 390mOhm Max | - | 26MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQW2UAS1R0G00LFIXED IND 1UH 370MA 1.75 OHM SMD |
1,189 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±2% | 370 mA | - | Unshielded | 1.75Ohm Max | 35 @ 50MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
ASCH00160808R22J00INDUCTOR RF |
27,978 |
|
Datasheet |
ASCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±5% | 250 mA | - | Shielded | 2Ohm Max | 8 @ 100MHz | 500MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ADCC002016121R0MC1FIXED IND 1UH 3.1A 0.05OHM SMD |
15,000 |
|
Datasheet |
ADCC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 3.1 A | 3.3A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
ADCC00201612R24MC1FIXED IND 240NH 5A 0.021OHM SMD |
6,000 |
|
Datasheet |
ADCC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±20% | 5 A | 5.9A | Shielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|

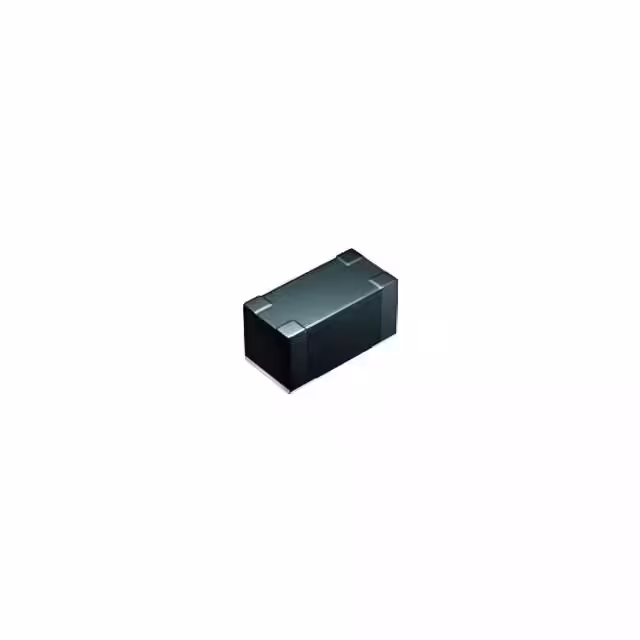

LSQPB160808TR56MFIXED IND 560NH 760MA 95MOHM SMD |
5,980 |
|
Datasheet |
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 nH | ±20% | 760 mA | 1.15A | Unshielded | 123.5mOhm Max | - | 170MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPB251812T2R2MFIXED IND 2.2UH 850MA 175.5 MOHM |
5,965 |
|
- |
LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 850 mA | 1A | Unshielded | 175.5mOhm Max | - | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.047" (1.20mm) |
|
|
ADCC00201612R33MC1FIXED IND 330NH 4.3A 0.027OHM SM |
5,935 |
|
Datasheet |
ADCC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 4.3 A | 5.2A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
ADCC00201612R15MC1FIXED IND 150NH 5.5A 0.016OHM SM |
5,932 |
|
Datasheet |
ADCC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 150 nH | ±20% | 5.5 A | 7.7A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
NLV32T-015J-EFDFIXED IND 15NH 450MA 160MOHM SMD |
5,794 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 nH | ±5% | 450 mA | - | Unshielded | 160mOhm Max | 10 @ 100MHz | 2.1GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ADCC002016121R5MC1FIXED IND 1.5UH 2.3A 0.095OHM SM |
5,295 |
|
Datasheet |
ADCC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 2.3 A | 2.5A | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
NLV32T-1R0J-EFDFIXED IND 1UH 400MA 700 MOHM SMD |
4,940 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 120MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLCV32T-1R0M-EFDFIXED IND 1UH 1A 78 MOHM SMD |
4,870 |
|
Datasheet |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1 A | - | Unshielded | 78mOhm Max | 10 @ 7.96MHz | 100MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

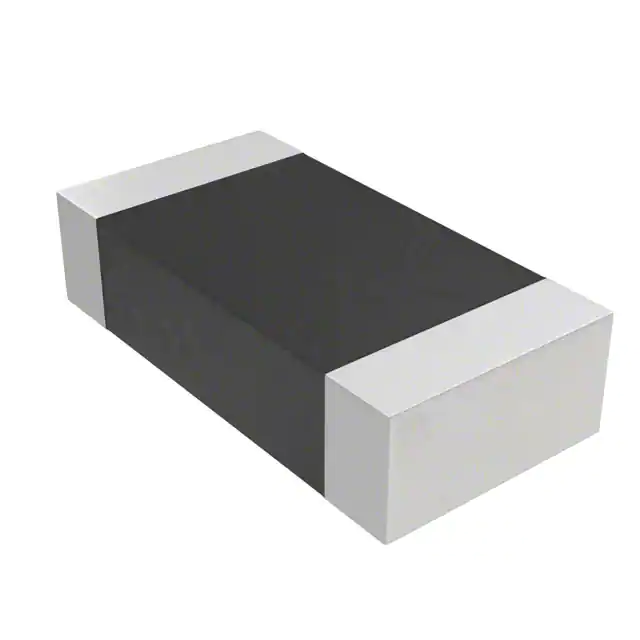

ASMPL-0603-R22N-TFIXED IND 220NH 1.2A 150MOHM SMD |
4,843 |
|
Datasheet |
ASMPL | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±30% | 1.2 A | 1.45A | Unshielded | 150mOhm Max | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
AOTA-B201608SR24MTFIXED IND 0.24UH 5.5A 22MOHM SMD |
4,580 |
|
Datasheet |
AOTA-B201608S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 5.5 A | 7.5A | Shielded | 22mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
AISC-1008HQ-22NJ-TFIXED IND 22NH 1.4A 70 MOHM SMD |
4,521 |
|
Datasheet |
AISC-1008HQ | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 1.4 A | - | Unshielded | 70mOhm Max | 62 @ 350MHz | 2.05GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
