Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP2510TMA-R68MIND METAL POWDER 0.68UH 5.1A |
2,791 |
|
Datasheet |
SRP2510TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 5.1 A | 5.2A | Shielded | 30mOhm Max | 15 @ 1MHz | 70MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
AISC-0603-R011G-TFIXED IND 11NH 600MA 130MOHM SMD |
2,750 |
|
Datasheet |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±2% | 600 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
MLF2012E6R8JTD25FIXED IND 6.8UH 15MA 650MOHM SMD |
2,000 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±5% | 15 mA | - | Shielded | 650mOhm Max | 50 @ 4MHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSXND3030QKT220MNGFIXED IND 22UH 470MA 624MOHM SMD |
2,000 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 470 mA | 470mA | Shielded | 624mOhm Max | - | 20MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LCXNE3030MKT220MNFIXED IND 22UH 500MA 756MOHM SMD |
2,000 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 500mA | Unshielded | 630mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSXNE3030KKT150MNFIXED IND 15UH 480MA 660MOHM SMD |
2,000 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 480 mA | 450mA | Shielded | 660mOhm Max | - | 25MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRP2510TMA-1R5MIND METAL POWDER 1.5UH 3.3A |
1,990 |
|
Datasheet |
SRP2510TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 3.3 A | 3.5A | Shielded | 72mOhm Max | 15 @ 1MHz | 45MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SRP2510TMA-R33MIND METAL POWDER 0.33UH 6.6A |
1,980 |
|
Datasheet |
SRP2510TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 6.6 A | 7.2A | Shielded | 19mOhm Max | 15 @ 1MHz | 110MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SRP2010TMA-R24MIND METAL POWDER 0.24UH 6.5A |
1,975 |
|
Datasheet |
SRP2010TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 240 nH | ±20% | 6.5 A | 7.7A | Shielded | 20.5mOhm Max | 15 @ 1MHz | 130MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

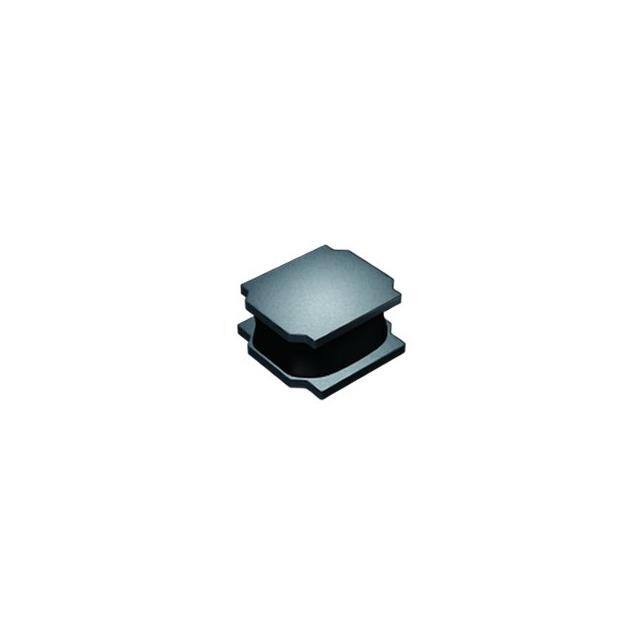

LSXND3030QKT470MNGFIXED IND 47UH 325MA 1.32OHM SMD |
1,970 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 350 mA | 325mA | Shielded | 1.32Ohm Max | - | 17MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LCXNE3030MKT2R2MNFIXED IND 2.2UH 1.37A 90MOHM SMD |
1,939 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.37 A | 1.5A | Unshielded | 75mOhm | - | 78MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SRP2012TMA-1R5MIND METAL POWDER 1.5UH 2.9A |
1,905 |
|
Datasheet |
SRP2012TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 2.9 A | 3.1A | Shielded | 84mOhm Max | 10 @ 1MHz | 52MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LSXNE3030KKT2R2MNFIXED IND 2.2UH 1.3A 99.6MOHM SM |
1,900 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.3 A | 1.3A | Shielded | 99.6mOhm Max | - | 86MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SRP2010TMA-R33MIND METAL POWDER 0.33UH 5.7A |
1,887 |
|
Datasheet |
SRP2010TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 5.7 A | 7A | Shielded | 26mOhm Max | 15 @ 1MHz | 112MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRP2010TMA-1R5MIND METAL POWDER 1.5UH 2.6A |
1,881 |
|
Datasheet |
SRP2010TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 2.6 A | 3A | Shielded | 96mOhm Max | 15 @ 1MHz | 52MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRP2012TMA-R68MIND METAL POWDER 0.68UH 4.2A |
1,870 |
|
Datasheet |
SRP2012TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 4.2 A | 5A | Shielded | 36mOhm Max | 10 @ 1MHz | 80MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
SRP2512TMA-R33MFIXED IND 330NH 6.8A 0.017OHM SM |
1,829 |
|
Datasheet |
SRP2512TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 6.8 A | 7.5A | Shielded | 17mOhm Max | 15 @ 1MHz | 165MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SRP2010TMA-R56MIND METAL POWDER 0.56UH 4.6A |
1,753 |
|
Datasheet |
SRP2010TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 560 nH | ±20% | 4.6 A | 5.2A | Shielded | 37.2mOhm Max | 15 @ 1MHz | 80MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSXNE3030KKT220MNFIXED IND 22UH 410MA 924MOHM SMD |
1,500 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 410 mA | 380mA | Shielded | 924mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

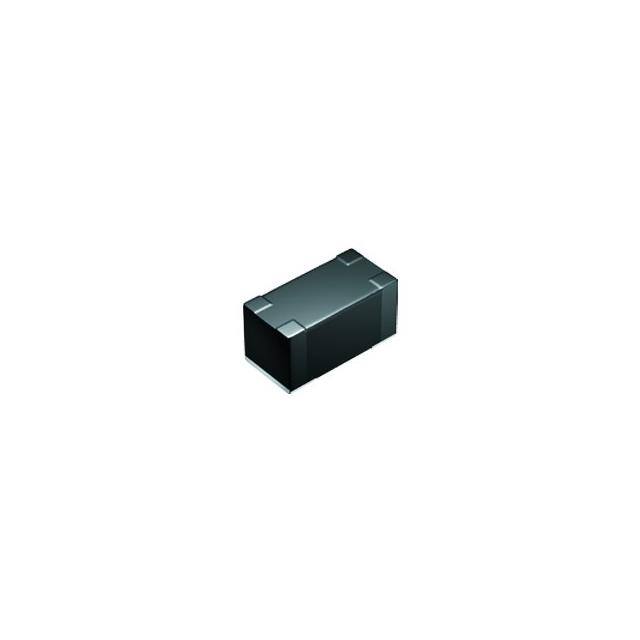

LSQPB201214T4R7MDFIXED IND 4.7UH 600MA 344.5 MOHM |
1,468 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 600 mA | 700mA | Unshielded | 344.5mOhm Max | - | 250MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
