Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AN5N1G80DFIXED IND 5.1NH 1.77A 0.04OHM SM |
7,859 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.1 nH | ±2% | 1.77 A | - | Unshielded | 40mOhm Max | 35 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLF2012DR27JT000FIXED IND 270NH 250MA 350MOHM SM |
7,736 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±5% | 250 mA | - | Shielded | 350mOhm Max | 20 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
BKPB002012101R0MA2FIXED IND 1UH 1.2A 120 MOHM SMD |
7,289 |
|
Datasheet |
BKPB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.2 A | 650mA | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LQW15AN4N8G80DFIXED IND 4.8NH 1.2A 0.071OHM SM |
7,275 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.8 nH | ±2% | 1.2 A | - | Unshielded | 71mOhm Max | 30 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N5B80DFIXED IND 4.5NH 1.45A 0.06OHM SM |
7,140 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.5 nH | ±0.1nH | 1.45 A | - | Unshielded | 60mOhm Max | 34 @ 250MHz | 9.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN6N3G80DFIXED IND 6.3NH 1.6A 0.057OHM SM |
7,035 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.3 nH | ±2% | 1.6 A | - | Unshielded | 57mOhm Max | 32 @ 250MHz | 7.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN6N6G80DFIXED IND 6.6NH 1.28A 0.078OHM |
6,925 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.6 nH | ±2% | 1.28 A | - | Unshielded | 78mOhm Max | 30 @ 250MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
7447906FIXED IND |
5,641 |
|
Datasheet |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±10% | 440 mA | - | Unshielded | 1Ohm Max | 45 @ 10MHz | 41MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
AICC-02-100K-TIND 10UH 0.37A 800M |
4,442 |
|
Datasheet |
AICC-02 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 370 mA | - | Unshielded | 800mOhm Max | 40 @ 7.96MHz | 22MHz | - | -25°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.110" Dia x 0.245" L (2.80mm x 6.22mm) | - |
|
|
MLF2012A4R7MTD25FIXED IND 4.7UH 30MA 700MOHM SMD |
4,000 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 30 mA | - | Shielded | 700mOhm Max | 45 @ 10MHz | 50MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012E6R8MTD25FIXED IND 6.8UH 15MA 650MOHM SMD |
4,000 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 15 mA | - | Shielded | 650mOhm Max | 50 @ 4MHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012E100MTD25FIXED IND 10UH 15MA 800 MOHM SMD |
4,000 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 15 mA | - | Shielded | 800mOhm Max | 50 @ 2MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012C220MTD25FIXED IND 22UH 5MA 900 MOHM SMD |
4,000 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 5 mA | - | Shielded | 900mOhm Max | 30 @ 1MHz | 18MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

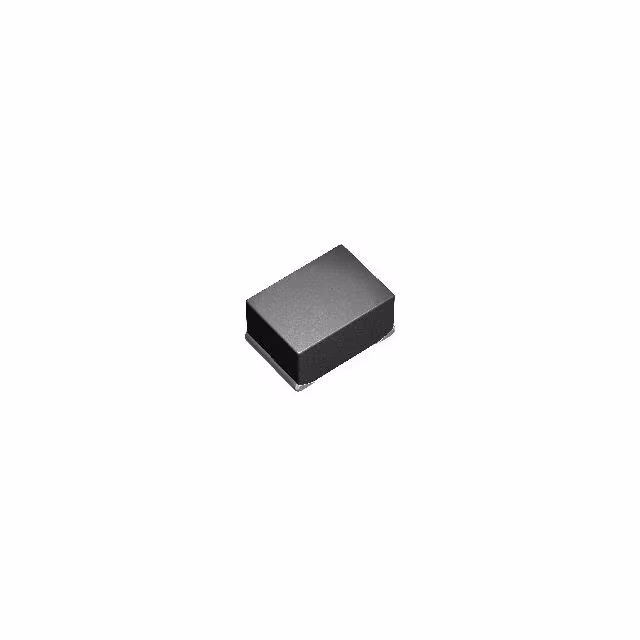

LSANB2520MKTR47MFIXED IND 470NH 3.4A 39 MOHM SMD |
2,995 |
|
Datasheet |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.2A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSQPA201212T470KFIXED IND 47UH 150MA 7.54OHM SMD |
2,990 |
|
- |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 150 mA | 120mA | Unshielded | 7.54Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSBHB2520MKT1R0MFIXED IND 1UH 1.85A 72 MOHM SMD |
2,990 |
|
Datasheet |
LSBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.85 A | 2.35A | Unshielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

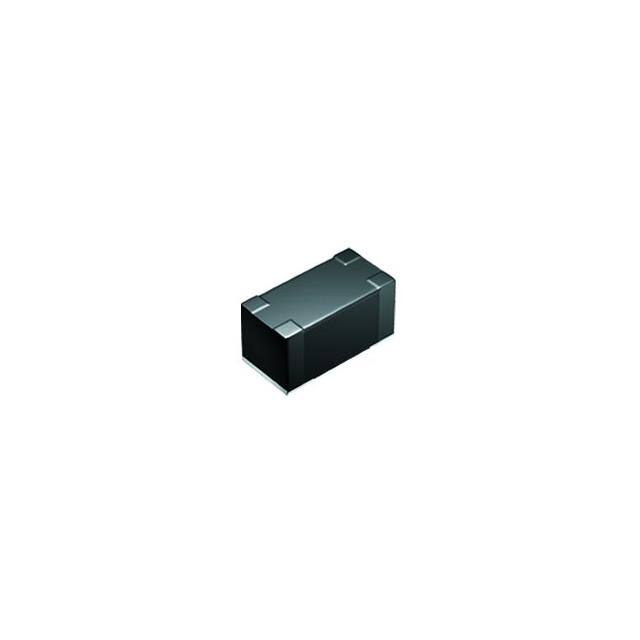

LSQBB160808T100MFIXED IND 10UH 80MA 0.36 OHM SMD |
2,985 |
|
Datasheet |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 80 mA | - | Unshielded | 360mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPA201212T4R7MFIXED IND 4.7UH 520MA 650MOHM SM |
2,975 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 520 mA | 360mA | Unshielded | 650mOhm Max | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
F1C1-201612-R47MFIXED IND 0.47UH 6.0A 17 MOHM |
2,962 |
|
Datasheet |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 6 A | 6A | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LSBHB1608KKT1R5MFIXED IND 1.5UH 1A 200 MOHM SMD |
2,939 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1 A | 650mA | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
