Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSBHB1608KKT3R3MFIXED IND 3.3UH 600MA 512MOHM SM |
2,917 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 600 mA | 450mA | Unshielded | 512mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQBB160808T220KFIXED IND 22UH 50MA 1 OHM SMD |
2,900 |
|
Datasheet |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 50 mA | - | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQNA201212T680KFIXED IND 68UH 140MA 7.8 OHM SMD |
2,855 |
|
- |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 70 mA | 70mA | Unshielded | 7.8Ohm Max | - | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
F1C1-201612-R15MFIXED IND 0.15UH 9.0A 10.0 MOHM |
2,845 |
|
Datasheet |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 9 A | 10.5A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LSBHB2012KKT1R0MFIXED IND 1UH 1.45A 106 MOHM SMD |
2,830 |
|
Datasheet |
LSBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.45 A | 1.5A | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

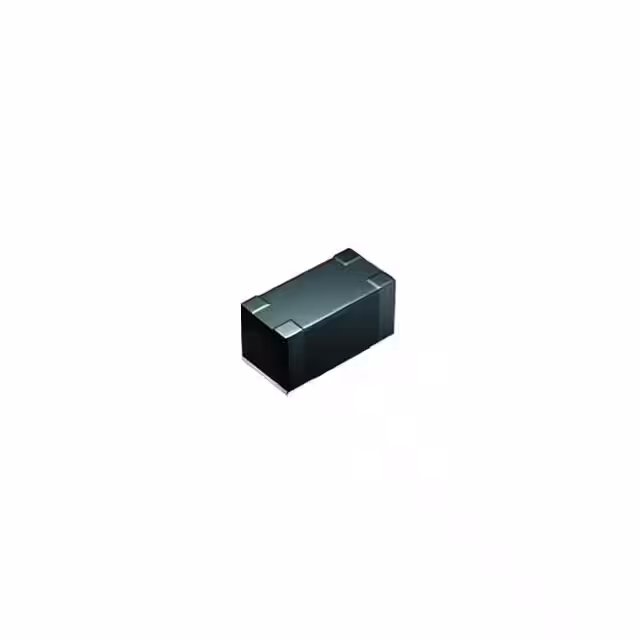

LSQBB160808T1R0MFIXED IND 1UH 230MA 0.09 OHM SMD |
2,830 |
|
Datasheet |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 230 mA | - | Unshielded | 90mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQBB160808T2R2MFIXED IND 2.2UH 160MA 0.17OHM SM |
2,830 |
|
Datasheet |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 160 mA | - | Unshielded | 170mOhm | - | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
F1C1-201612-1R5MFIXED IND 1.5UH 3.5A 50 MOHM |
2,776 |
|
Datasheet |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 3.5 A | 3.5A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LSQNA201212T1R0MFIXED IND 1UH 900MA 195 MOHM SMD |
2,739 |
|
- |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 500 mA | 500mA | Unshielded | 195mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSANB2520KKT1R0MFIXED IND 1UH 2.5A 72 MOHM SMD |
2,675 |
|
Datasheet |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 2.5 A | 2.7A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LSBHB1608KKT1R0MFIXED IND 1UH 1.15A 150 MOHM SMD |
2,588 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.15 A | 800mA | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQNA201212T101MFIXED IND 100UH 130MA 7 OHM SMD |
2,545 |
|
- |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 60 mA | 60mA | Unshielded | 9.1Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSXNE2424MKT2R2MNGFIXED IND 2.2UH 1A 140 MOHM SMD |
2,500 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.7A | Shielded | 168mOhm Max | - | 72MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LSXNE2424MKT100MNGFIXED IND 10UH 450MA 600MOHM SMD |
2,497 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 810mA | Shielded | 720mOhm Max | - | 29MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LSXNE2424MKT6R8MNGFIXED IND 6.8UH 550MA 420MOHM SM |
2,414 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 550 mA | 950mA | Shielded | 504mOhm Max | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
LSQNA201212T100KFIXED IND 10UH 440MA 910MOHM SMD |
2,405 |
|
Datasheet |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 190 mA | 190mA | Unshielded | 910mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

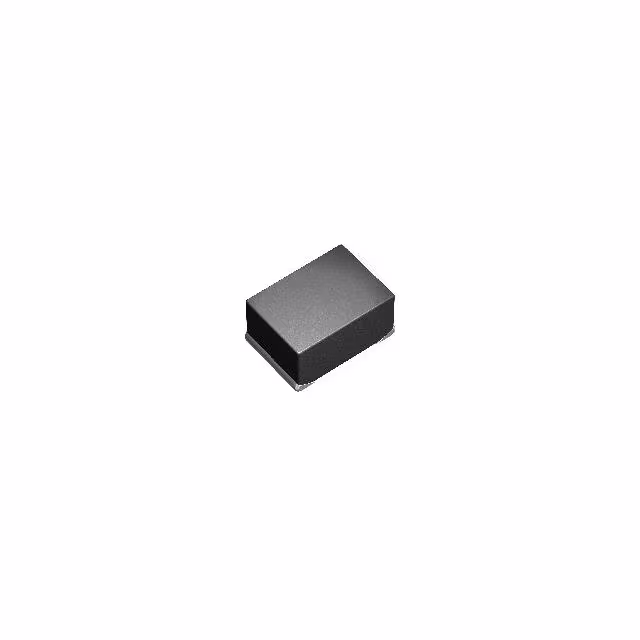

LSANB2520MKT4R7MFIXED IND 4.7UH 1.3A 260MOHM SMD |
2,358 |
|
Datasheet |
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 1.3 A | 1.5A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSQNA201212T6R8MFIXED IND 6.8UH 540MA 611MOHM SM |
2,290 |
|
Datasheet |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 250 mA | 250mA | Unshielded | 611mOhm Max | - | 38MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSANB2016KKT3R3MFIXED IND 3.3UH 1.2A 255MOHM SMD |
2,261 |
|
Datasheet |
LSAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 1.2 A | 1.15A | Shielded | 255mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSQPA201616T1R0MFIXED IND 1UH 1.1A 130 MOHM SMD |
2,000 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 1.1 A | 1.1A | Unshielded | 130mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
