Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQPA201616T2R2MFIXED IND 2.2UH 720MA 260MOHM SM |
2,000 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 720 mA | 750mA | Unshielded | 260mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA201616T470KFIXED IND 47UH 150MA 5.59OHM SMD |
1,986 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 150 mA | 150mA | Unshielded | 5.59Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA201616T150KFIXED IND 15UH 300MA 1.56OHM SMD |
1,965 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 300 mA | 300mA | Unshielded | 1.56Ohm Max | - | 28MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA201616T100KFIXED IND 10UH 350MA 1.066OHM SM |
1,954 |
|
Datasheet |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 350 mA | 380mA | Unshielded | 1.066Ohm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA201616T100MFIXED IND 10UH 350MA 1.066OHM SM |
1,890 |
|
Datasheet |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 350 mA | 380mA | Unshielded | 1.066Ohm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA201616T101MFIXED IND 100UH 110MA 10.4OHM SM |
1,889 |
|
Datasheet |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 110 mA | 110mA | Unshielded | 10.4Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LQW15AN4N9G80DFIXED IND 4.9NH 1.2A 0.071OHM SM |
1,256 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.9 nH | ±2% | 1.2 A | - | Unshielded | 71mOhm Max | 27 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
ASCH0016080882NJ00INDUCTOR RF |
23,586 |
|
Datasheet |
ASCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 82 nH | ±5% | 300 mA | - | Shielded | 1Ohm Max | 12 @ 100MHz | 900MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ASCH0016080847NJ00INDUCTOR RF |
23,310 |
|
Datasheet |
ASCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 47 nH | ±5% | 400 mA | - | Shielded | 700mOhm Max | 12 @ 100MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
 MHQ Series.jpg)
|
MHQ1005P1N2BTD25FIXED IND 1.2NH 1.2A 30 MOHM SMD |
19,940 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.2 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 13GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P3N6ST000FIXED IND 3.6NH 900MA 90MOHM SMD |
18,349 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.6 nH | ±0.3nH | 900 mA | - | Unshielded | 90mOhm Max | 23 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
MHQ1005075HA6N8JTD25FIXED IND 6.8NH 0.5A 200 MOHM SM |
9,000 |
|
Datasheet |
MHQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±5% | 500 mA | - | Unshielded | 200mOhm Max | 20 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|
|
MHQ1005075HA2N9STD25FIXED IND 2.9NH 0.75A 100 MOHM S |
8,990 |
|
Datasheet |
MHQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.9 nH | ±0.3nH | 750 mA | - | Unshielded | 100mOhm Max | 20 @ 250MHz | 6.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|
|
MHQ1005075HA1N5STD25FIXED IND 1.5NH 1A 40 MOHM SMD |
8,750 |
|
Datasheet |
MHQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 1 A | - | Unshielded | 40mOhm Max | - | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|
|
MHQ1005P3N6CT000FIXED IND 3.6NH 900MA 90MOHM SMD |
8,239 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.6 nH | ±0.2nH | 900 mA | - | Unshielded | 90mOhm Max | 23 @ 250MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|
MLF1608DR15KTD25FIXED IND 150NH 200MA 450MOHM SM |
7,960 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±10% | 200 mA | - | Shielded | 450mOhm Max | 15 @ 25MHz | 350MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MHQ1005075HA3N0BTD25FIXED IND 3.0NH 0.65A 120 MOHM S |
7,925 |
|
Datasheet |
MHQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3 nH | ±0.1nH | 650 mA | - | Unshielded | 120mOhm Max | 20 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|

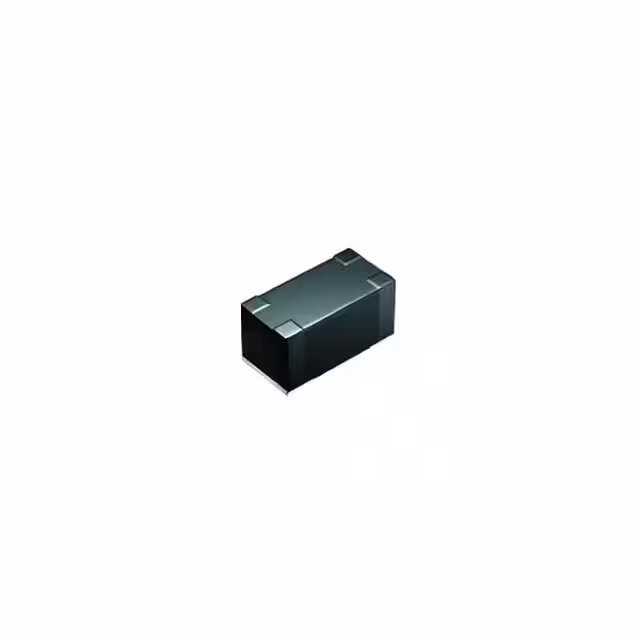

LSQNB160808T100MFIXED IND 10UH 380MA 468MOHM SMD |
5,250 |
|
Datasheet |
LSQN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 115 mA | 115mA | Unshielded | 468mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
AISM-1210-390K-TFIXED IND 39UH 65MA 6.4 OHM SMD |
4,969 |
|
Datasheet |
AISM-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±10% | 65 mA | - | Unshielded | 6.4Ohm Max | 30 @ 2.52MHz | 16MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ASCH0016080856NJ00INDUCTOR RF |
4,000 |
|
Datasheet |
ASCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 56 nH | ±5% | 400 mA | - | Shielded | 750mOhm Max | 12 @ 100MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
