Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSBHB1608KKTR68NFIXED IND 680NH 1.2A 120MOHM SMD |
2,730 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 680 nH | ±30% | 1.2 A | 950mA | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQNA201212T220KFIXED IND 22UH 280MA 2.21OHM SMD |
2,525 |
|
Datasheet |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 135 mA | 135mA | Unshielded | 2.21Ohm Max | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSXNE2424KKT1R0NNFIXED IND 1UH 1.41A 84 MOHM SMD |
2,500 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.41 A | 1.8A | Shielded | 84mOhm Max | - | 106MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LSXNE2424KKT6R8MNFIXED IND 6.8UH 570MA 492MOHM SM |
2,492 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 570 mA | 750mA | Shielded | 492mOhm Max | - | 43MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LQW18AN43NG0ZDFIXED IND 43NH 380MA 0.29OHM SMD |
2,468 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 43 nH | ±2% | 380 mA | - | Unshielded | 290mOhm Max | 40 @ 200MHz | 2.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSXNE2424MKT3R3MNGFIXED IND 3.3UH 750MA 225MOHM SM |
2,400 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 750 mA | 1.4A | Shielded | 270mOhm Max | - | 56MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|

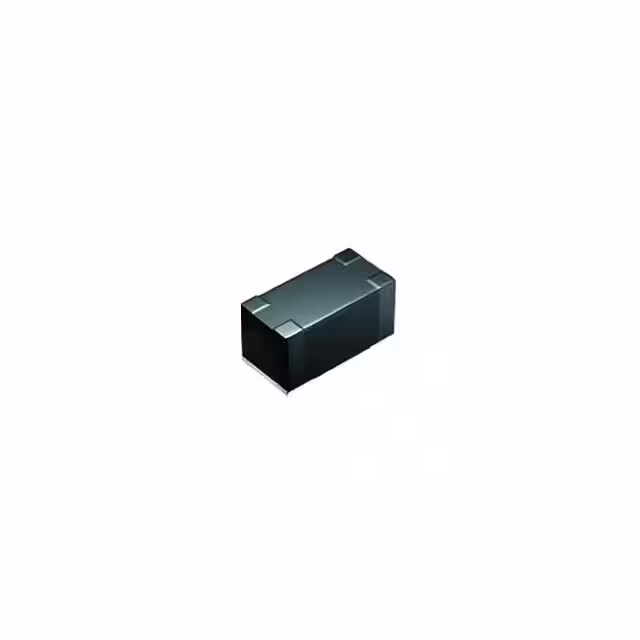

LSQBB160808T470KFIXED IND 47UH 35MA 2.5 OHM SMD |
2,355 |
|
Datasheet |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 35 mA | - | Unshielded | 2.5Ohm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AN62NG0ZDFIXED IND 62NH 280MA 0.51OHM SMD |
2,326 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 62 nH | ±2% | 280 mA | - | Unshielded | 510mOhm Max | 38 @ 200MHz | 2.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSXNE2424KKT220MNFIXED IND 22UH 300MA 1.764OHM SM |
2,325 |
|
Datasheet |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 300 mA | 390mA | Shielded | 1.764Ohm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|

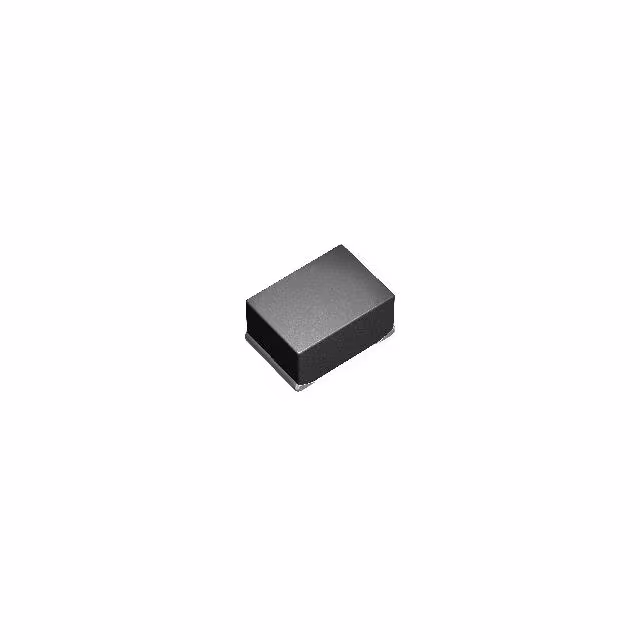

LSANB2016KKT1R0MFIXED IND 1UH 2.2A 75 MOHM SMD |
2,300 |
|
Datasheet |
LSAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 2.2 A | 2.2A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQW15AN30NG0ZDFIXED IND 30NH 270MA 0.58OHM SMD |
2,235 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 30 nH | ±2% | 270 mA | - | Unshielded | 580mOhm Max | 25 @ 250MHz | 3.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LSQNA201616T330KFIXED IND 33UH 270MA 2.21OHM SMD |
2,000 |
|
- |
LSQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 130 mA | 130mA | Unshielded | 2.21Ohm Max | - | 14MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQNA201616T6R8MFIXED IND 6.8UH 600MA 455MOHM SM |
2,000 |
|
- |
LSQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 300 mA | 300mA | Unshielded | 455mOhm Max | - | 38MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQNA201616T2R2MFIXED IND 2.2UH 1A 169 MOHM SMD |
2,000 |
|
- |
LSQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 510 mA | 510mA | Unshielded | 169mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQNA201616T470KFIXED IND 47UH 240MA 3.12OHM SMD |
2,000 |
|
- |
LSQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±10% | 110 mA | 110mA | Unshielded | 3.12Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSXNE2424KKT4R7MNFIXED IND 4.7UH 670MA 348MOHM SM |
1,977 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 670 mA | 880mA | Shielded | 348mOhm Max | - | 50MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LSXNE2424KKT150MNFIXED IND 15UH 370MA 1.224OHM SM |
1,697 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 370 mA | 470mA | Shielded | 1.224Ohm Max | - | 27MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
LSQNA201616T100MFIXED IND 10UH 520MA 650MOHM SMD |
1,589 |
|
- |
LSQN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 250 mA | 250mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
ILSB1206ER2R2KFIXED IND 2.2UH 50MA 500MOHM SMD |
1,185 |
|
Datasheet |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 58MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
 MHQ Series.jpg)
|
MHQ1005P2N7CTD25FIXED IND 2.7NH 900MA 70MOHM SMD |
19,900 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.7 nH | ±0.2nH | 900 mA | - | Unshielded | 70mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
