Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MLF1608DR18JT000FIXED IND 180NH 150MA 500MOHM SM |
7,405 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±5% | 150 mA | - | Shielded | 500mOhm Max | 15 @ 25MHz | 320MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608DR22JT000FIXED IND 220NH 150MA 550MOHM SM |
7,347 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±5% | 150 mA | - | Shielded | 550mOhm Max | 15 @ 25MHz | 290MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LSBHB2012KKT2R2MFIXED IND 2.2UH 850MA 290MOHM SM |
5,891 |
|
Datasheet |
LSBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 850 mA | 900mA | Unshielded | 290mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LQW15AN11NG0ZDFIXED IND 11NH 500MA 0.14OHM SMD |
5,850 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 11 nH | ±2% | 500 mA | - | Unshielded | 140mOhm Max | 30 @ 250MHz | 5.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
ILSB1206ERR18KFIXED IND 180NH 250MA 400 MOHM |
5,786 |
|
Datasheet |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | - | - | 180 nH | ±10% | 250 mA | - | Shielded | 400mOhm Max | 20 @ 25MHz | 213MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.031" (0.80mm) |
|
|
MLF1608E8R2JT000FIXED IND 8.2UH 10MA 1.5 OHM SMD |
5,625 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±5% | 10 mA | - | Shielded | 1.5Ohm Max | 35 @ 4MHz | 35MHz | - | -40°C ~ 85°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
 MHQ Series.jpg)
|
MHQ1005P5N1ST000FIXED IND 5.1NH 800MA 120MOHM SM |
5,051 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 5.1 nH | ±0.3nH | 800 mA | - | Unshielded | 120mOhm Max | 23 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
LSBHB1608KKT2R2MFIXED IND 2.2UH 750MA 345MOHM SM |
5,022 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 750 mA | 520mA | Unshielded | 345mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQW15AN1N5B0ZDFIXED IND 1.5NH 1A 0.03OHM SMD |
4,576 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 1.5 nH | ±0.1nH | 1 A | - | Unshielded | 30mOhm Max | 10 @ 250MHz | 18GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN22NG0ZDFIXED IND 22NH 310MA 0.3OHM SMD |
4,530 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 22 nH | ±2% | 310 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

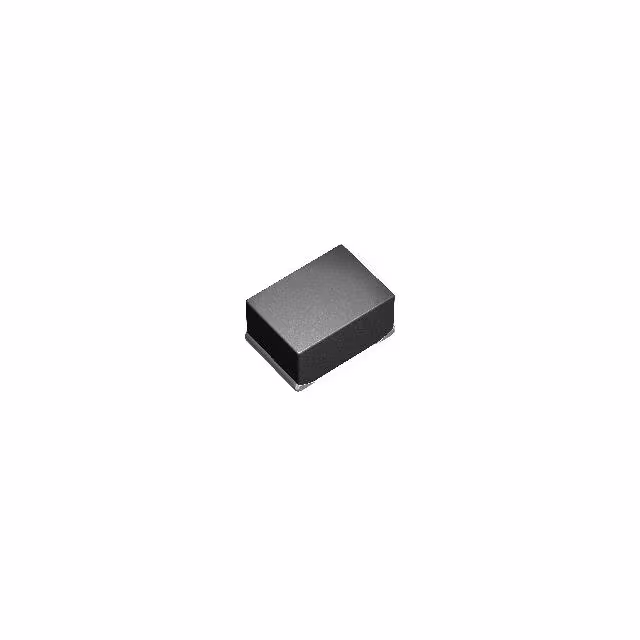

LSANB2016KKT2R2MFIXED IND 2.2UH 1.5A 160MOHM SMD |
4,259 |
|
Datasheet |
LSAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.5 A | 1.5A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQW18ANR20G0ZDFIXED IND 200NH 120MA 2.4OHM SMD |
4,000 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 200 nH | ±2% | 120 mA | - | Unshielded | 2.4Ohm Max | 25 @ 100MHz | 1.25GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AN3N9C0ZDFIXED IND 3.9NH 850MA 0.059OHM |
3,974 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.9 nH | ±0.2nH | 850 mA | - | Unshielded | 59mOhm Max | 35 @ 250MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ANR16G0ZDFIXED IND 160NH 150MA 2.1OHM SMD |
3,970 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 160 nH | ±2% | 150 mA | - | Unshielded | 2.1Ohm Max | 32 @ 150MHz | 1.35GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AN13NG0ZDFIXED IND 13NH 600MA 0.13OHM SMD |
3,800 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 13 nH | ±2% | 600 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQW18AN68NG0ZDFIXED IND 68NH 340MA 0.38OHM SMD |
3,377 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 68 nH | ±2% | 340 mA | - | Unshielded | 380mOhm Max | 38 @ 200MHz | 2.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSQPA201212T2R2MFIXED IND 2.2UH 640MA 429MOHM SM |
3,000 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 640 mA | 530mA | Unshielded | 429mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSQNA201212T2R2MFIXED IND 2.2UH 770MA 299MOHM SM |
3,000 |
|
- |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 410 mA | 410mA | Unshielded | 299mOhm Max | - | 80MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSQPA201212T1R0MFIXED IND 1UH 840MA 247 MOHM SMD |
3,000 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 840 mA | 700mA | Unshielded | 247mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSBHB2520MKT4R7MFIXED IND 4.7UH 800MA 380MOHM SM |
3,000 |
|
Datasheet |
LSBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 800 mA | 1.15A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
