Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQNA201212T470MFIXED IND 47UH 190MA 4.81OHM SMD |
3,000 |
|
- |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 90 mA | 90mA | Unshielded | 4.81Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSBHB2520MKT2R2MFIXED IND 2.2UH 1.25A 159MOHM SM |
3,000 |
|
Datasheet |
LSBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 1.25 A | 1.8A | Unshielded | 159mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSBHB1608KKTR47NFIXED IND 470NH 1.4A 104MOHM SMD |
3,000 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±30% | 1.4 A | 1.1A | Unshielded | 104mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
BDQQ00201210R47MPAINDUCTOR MOLDED 0.47UH 5.3A |
3,000 |
|
Datasheet |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 4.5 A | 5.3A | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
BDQQ00201210R24MPAINDUCTOR MOLDED 0.24UH 6.6A |
3,000 |
|
Datasheet |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 5.3 A | 6.6A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
BDQQ00201212R24MPAINDUCTOR MOLDED 0.24UH 8.5A |
3,000 |
|
Datasheet |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 7 A | 8.5A | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
|
BDQQ00201212R47MPAINDUCTOR MOLDED 0.47UH 5.0A |
3,000 |
|
Datasheet |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 4.5 A | 5A | Unshielded | 23.5mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
|
BDQQ00201210R33MPAINDUCTOR MOLDED 0.33UH 6.0A |
3,000 |
|
Datasheet |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 330 nH | ±20% | 5 A | 6A | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
BDQQ00201212R11MPAINDUCTOR MOLDED 0.11UH 11A |
3,000 |
|
Datasheet |
BDQQ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 110 nH | ±20% | 9.5 A | 11A | Unshielded | 5.8mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.047" (1.20mm) |
|
ILSB1206ER3R3KFIXED IND 3.3UH 50MA 700MOHM SMD |
2,996 |
|
Datasheet |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±10% | 50 mA | - | Shielded | 700mOhm Max | 45 @ 10MHz | 48MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
LSBHB2012KKT3R3MFIXED IND 3.3UH 650MA 500MOHM SM |
2,990 |
|
Datasheet |
LSBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 650 mA | 700mA | Unshielded | 500mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LSBHB2012KKTR47NFIXED IND 470NH 1.65A 78MOHM SMD |
2,980 |
|
Datasheet |
LSBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±30% | 1.65 A | 2A | Unshielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LSBHB1608KKTR24NFIXED IND 240NH 2.3A 49 MOHM SMD |
2,970 |
|
Datasheet |
LSBH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±30% | 2.3 A | 1.65A | Unshielded | 49mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSBHB2520MKT1R5MFIXED IND 1.5UH 1.5A 106MOHM SMD |
2,967 |
|
Datasheet |
LSBH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.5 A | 2.05A | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSQPA201212T100KFIXED IND 10UH 340MA 1.56OHM SMD |
2,900 |
|
Datasheet |
LSQP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 340 mA | 240mA | Unshielded | 1.56Ohm Max | - | 40MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LSQNA201212T150KFIXED IND 15UH 320MA 1.69OHM SMD |
2,890 |
|
Datasheet |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 170 mA | 170mA | Unshielded | 1.69Ohm Max | - | 28MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

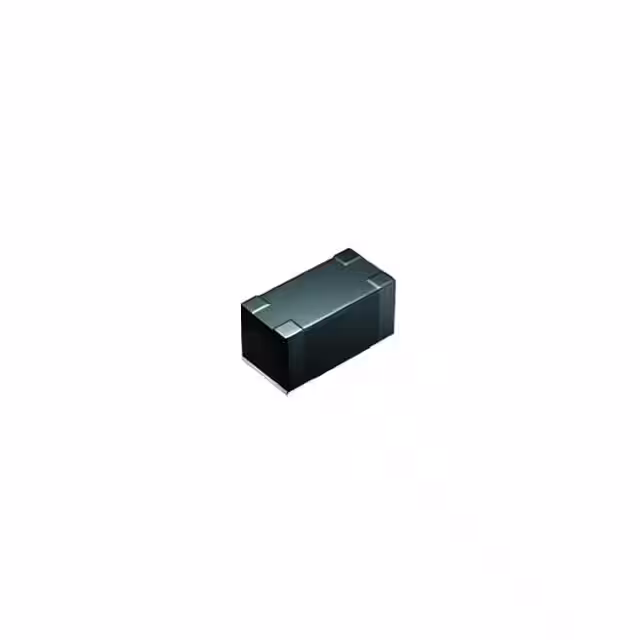

LSQBB160808T4R7MFIXED IND 4.7UH 110MA 0.24OHM SM |
2,855 |
|
Datasheet |
LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 110 mA | - | Unshielded | 240mOhm | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LSBHB2012KKT4R7MFIXED IND 4.7UH 600MA 615MOHM SM |
2,807 |
|
Datasheet |
LSBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 600 mA | 600mA | Unshielded | 615mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LSQNA201212T101KFIXED IND 100UH 130MA 9.1OHM SMD |
2,805 |
|
Datasheet |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 60 mA | 60mA | Unshielded | 9.1Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ILSB1206ER1R5KFIXED IND 1.5UH 50MA 500MOHM SMD |
2,740 |
|
Datasheet |
ILSB-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 69MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
