Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

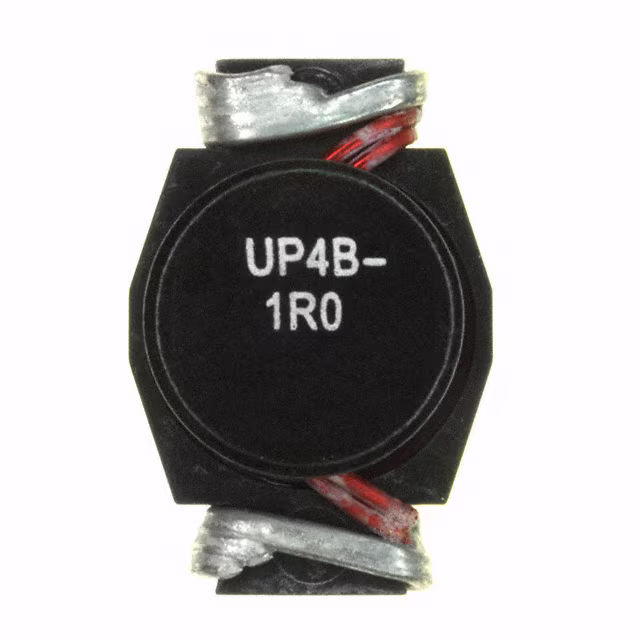

UP4B-1R0-RFIXED IND 1UH 17.3A 2.3 MOHM SMD |
248 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 17.3 A | 37.3A | Unshielded | 2.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
DRA127-4R7-RFIXED IND 4.7UH 8.14A 9.4MOHM SM |
229 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 8.14 A | 16.5A | Shielded | 9.4mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
PM2110-820K-RCFIXED IND 82UH 5.6A 29 MOHM SMD |
179 |
|
Datasheet |
PM2110 | Nonstandard | Bulk | Active | Toroidal | Iron | 82 µH | ±10% | 5.6 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.620" (15.75mm) |
|
1025-76KFIXED IND 220UH 52MA 21 OHM TH |
7,114 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75085 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 52 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
P1330R-473KFIXED IND 47UH 467MA 792MOHM SMD |
5,500 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 467 mA | 246mA | Unshielded | 792mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
|
P1330R-223KFIXED IND 22UH 694MA 384MOHM SMD |
629 |
|
Datasheet |
P1330R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 694 mA | 348mA | Unshielded | 384mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.94mm x 2.92mm) | 0.145" (3.68mm) |
|
744103FIXED IND 109UH 1.3A 300 MOHM TH |
120 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 109 µH | ±20% | 1.3 A | 1A | Unshielded | 300mOhm Max | - | 9.2MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - |
|
PA2050.233NLFIXED IND 23UH 8A 13.7 MOHM SMD |
695 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 23 µH | ±10% | 8 A | 9.8A | Shielded | 13.7mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

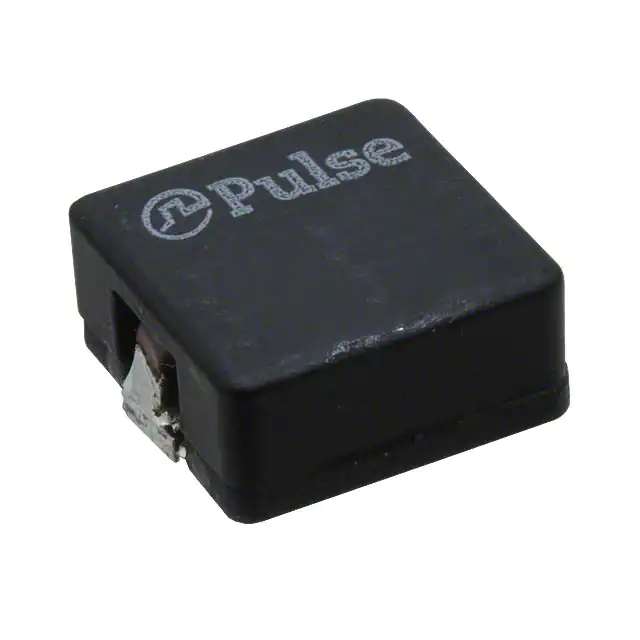

PG0077.202NLTFIXED IND 2UH 23A 2.9 MOHM SMD |
1,909 |
|
Datasheet |
PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±20% | 23 A | 24A | Unshielded | 2.9mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.256" (6.50mm) |
|

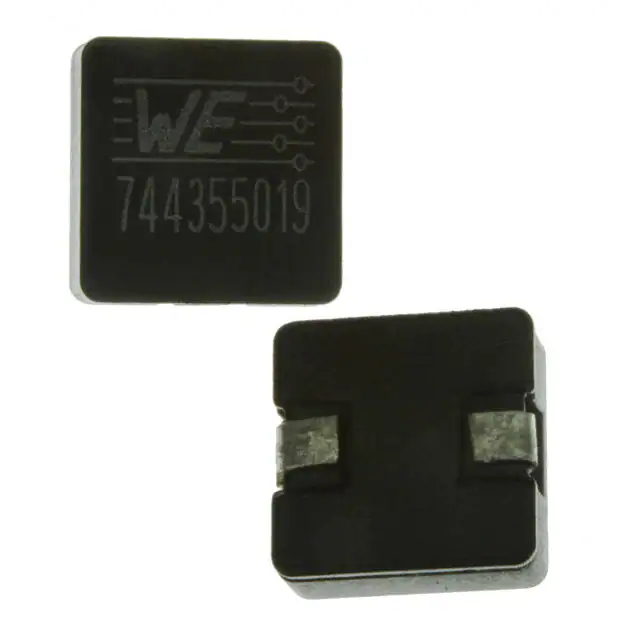

744355019FIXED IND 190NH 29A 0.5 MOHM SMD |
395 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 190 nH | ±20% | 29 A | 60A | Shielded | 0.5mOhm | - | 225MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|
7843321000WE-CHSA SMT HIGH CURRENT INDUCTO |
197 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 7.8 A | 10.8A | Shielded | 20.35mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
7843320100FIXED IND 1UH 22.5A 2.4MOHM SMD |
178 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 22.5 A | 33.7A | Shielded | 2.4mOhm Max | - | 81MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
7843331000WE-CHSA SMT HIGH CURRENT INDUCTO |
156 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 6.7 A | 10.7A | Shielded | 25.8mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
7843321200FIXED IND 12UH 7.1A 21.5MOHM SMD |
139 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 7.1 A | 10.3A | Shielded | 21.5mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
7843331800WE-CHSA SMT HIGH CURRENT INDUCTO |
126 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 5.1 A | 8.5A | Shielded | 41.1mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
7843320680FIXED IND 6.8UH 9.8A 11.9MOHM SM |
105 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 9.8 A | 13A | Shielded | 11.9mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
PA2729.383NLFIXED IND 38.3UH 6.5A 19.7 MOHM |
1,040 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 38.3 µH | ±15% | 6.5 A | 7.8A | Shielded | 19.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.243NLFIXED IND 24.5UH 8.1A 12.5 MOHM |
975 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 24.5 µH | ±15% | 8.1 A | 9.8A | Shielded | 12.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.173NLFIXED IND 17.1UH 9.9A 9.1MOHM SM |
636 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 17.1 µH | ±15% | 9.9 A | 11.7A | Shielded | 9.1mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PG0077.401NLTFIXED IND 450NH 45A 0.8 MOHM SMD |
555 |
|
Datasheet |
PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 450 nH | ±20% | 45 A | 48A | Unshielded | 0.8mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.256" (6.50mm) |
