Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD25-3R3-RFIXED IND 3.3UH 2.64A 38.4 MOHM |
2,510 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.64 A | 2.21A | Shielded | 38.4mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
SD3114-101-RFIXED IND 100UH 213MA 3.3OHM SMD |
4,100 |
|
Datasheet |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 213 mA | 252mA | Shielded | 3.3Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-820-RFIXED IND 82UH 227MA 2.91OHM SMD |
4,100 |
|
Datasheet |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 227 mA | 280mA | Shielded | 2.91Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
UP3B-2R2-RFIXED IND 2.2UH 9.2A 7.4MOHM SMD |
734 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9.2 A | 10.2A | Unshielded | 7.4mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
|
74459115FIXED IND 15UH 3.5A 0.048OHM SMD |
860 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 3.5 A | 7A | Shielded | 48mOhm Max | - | 16.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
RC-4FIXED IND 1.5MH 500MA 1.53OHM TH |
419 |
|
Datasheet |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 500 mA | - | Unshielded | 1.53Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
78433390620WE-CHSA PERFORMANCE SMD HIGH CUR |
200 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 6.2 µH | ±20% | 7.2 A | 18A | Shielded | 19.1mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433390820WE-CHSA PERFORMANCE SMD HIGH CUR |
200 |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 8.2 µH | ±20% | 6.7 A | 15.6A | Shielded | 25.8mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433390150WE-CHSA PERFORMANCE SMD HIGH CUR |
192 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.5 µH | ±20% | 16 A | 37.4A | Shielded | 4.7mOhm Max | - | 67MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433391000WE-CHSA PERFORMANCE SMD HIGH CUR |
191 |
|
Datasheet |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 10 µH | ±20% | 5.6 A | 14.4A | Shielded | 33.2mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433390300WE-CHSA PERFORMANCE SMD HIGH CUR |
187 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3 µH | ±20% | 11.2 A | 26.2A | Shielded | 8.7mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433390240WE-CHSA PERFORMANCE SMD HIGH CUR |
175 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 2.4 µH | ±20% | 13.8 A | 28.7A | Shielded | 6.5mOhm Max | - | 55MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433390430WE-CHSA PERFORMANCE SMD HIGH CUR |
159 |
|
Datasheet |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 4.3 µH | ±20% | 9.2 A | 20.6A | Shielded | 13mOhm Max | - | 41MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|

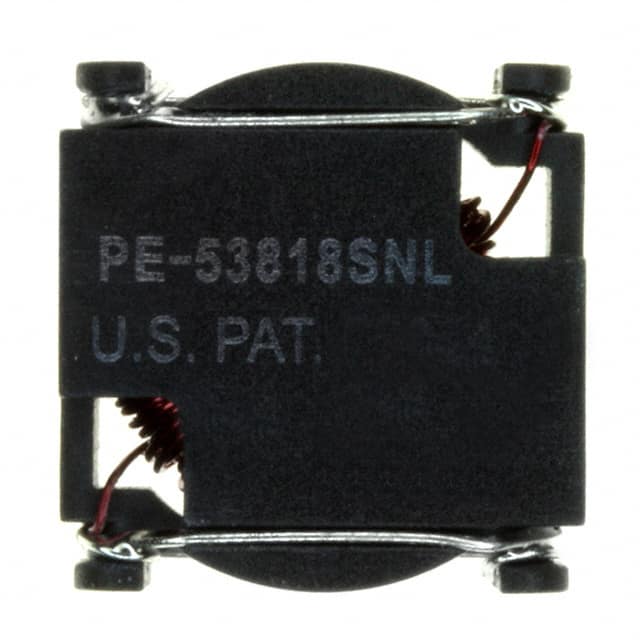

PE-53818SNLFIXED IND 252UH 440MA 900MOHM SM |
182 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 252 µH | ±20% | 440 mA | - | Shielded | 900mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
DRA125-100-RFIXED IND 10UH 5.57A 17 MOHM SMD |
1,200 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.57 A | 7.22A | Shielded | 17mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PE-53718NLFIXED IND 21.9UH 2.7A 90.5 MOHM |
1,010 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 21.9 µH | - | 2.7 A | - | Unshielded | 90.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.390" (9.91mm) |
|
784393440018WE-XHMA SMT POWER INDUCTOR 6030; |
998 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 180 nH | ±20% | 20 A | 50.6A | Shielded | 1.32mOhm | - | 169MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
784393440056WE-XHMA SMT POWER INDUCTOR 6030; |
918 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 560 nH | ±20% | 16 A | 30.8A | Shielded | 2.9mOhm | - | 77MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
78439344047WE-XHMA SMT POWER INDUCTOR 6030; |
803 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 4.7 A | 10.5A | Shielded | 31mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
78439344012WE-XHMA SMT POWER INDUCTOR 6030; |
661 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.2 µH | ±20% | 10.3 A | 21.6A | Shielded | 6.4mOhm | - | 53MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
