Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784393440033WE-XHMA SMT POWER INDUCTOR 6030; |
290 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 16.5 A | 42.9A | Shielded | 2.1mOhm | - | 113MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
78439344010WE-XHMA SMT POWER INDUCTOR 6030; |
275 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 12 A | 24.95A | Shielded | 5.5mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
WTX0624H-R56MTW01FIXED IND 0.5620%UH 0.005OHM 250 |
1,390 |
|
Datasheet |
WT | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | - | - | Unshielded | - | - | - | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.094" (2.40mm) |
|
EXL1V1010-6R8-RINDUCTOR MOLDED 6.8UH 18.5A |
544 |
|
Datasheet |
EXL1V1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 18.5 A | 18.5A | Shielded | 8.9mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|
ATCA-03-111M-VFIXED IND 110UH 4A 42 MOHM TH |
888 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 110 µH | ±20% | 4 A | - | Unshielded | 42mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.945" L x 0.453" W (24.00mm x 11.50mm) | - |
|
1537-28KFIXED IND 4.7UH 294MA 2.6 OHM TH |
593 |
|
Datasheet |
Military, MIL-PRF-M15305, MS18130 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 4.7 µH | ±10% | 294 mA | - | Unshielded | 2.6Ohm Max | 33 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

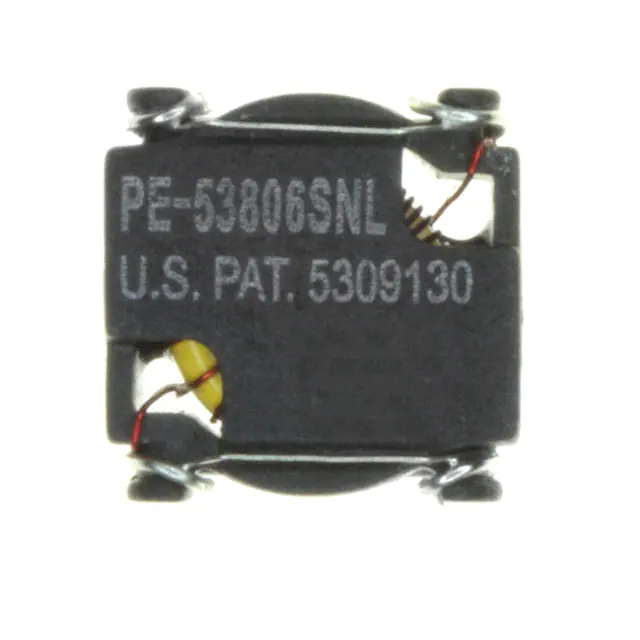

PE-53806SNLFIXED IND 39UH 340MA 800MOHM SMD |
1,268 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 39 µH | ±20% | 340 mA | - | Shielded | 800mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|

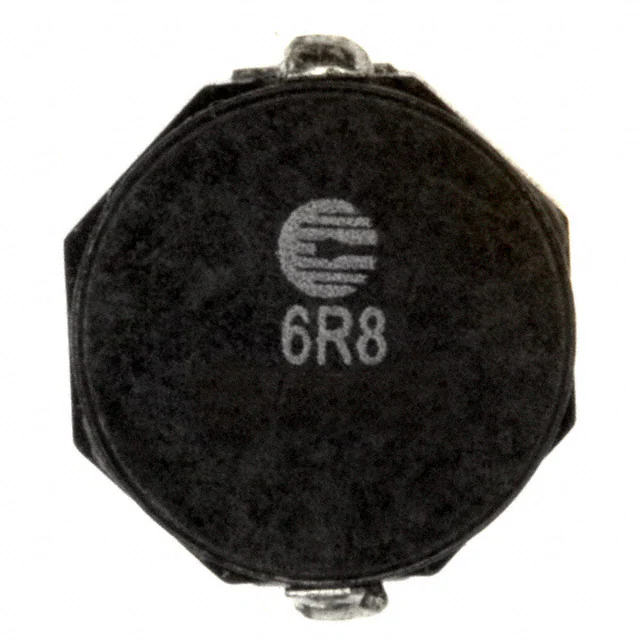

SD8350-6R8-RFIXED IND 6.8UH 3.9A 25 MOHM SMD |
111 |
|
Datasheet |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.9 A | 4.4A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
1210R-332JFIXED IND 3.3UH 393MA 1.2OHM SMD |
13,499 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±5% | 393 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.9MHz | 58MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-102JFIXED IND 1UH 515MA 700 MOHM SMD |
5,000 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±5% | 515 mA | - | Unshielded | 700mOhm Max | 30 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-562JFIXED IND 5.6UH 341MA 1.6OHM SMD |
997 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±5% | 341 mA | - | Unshielded | 1.6Ohm Max | 30 @ 7.9MHz | 42MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-122JFIXED IND 1.2UH 497MA 750MOHM SM |
930 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±5% | 497 mA | - | Unshielded | 750mOhm Max | 30 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-272JFIXED IND 2.7UH 411MA 1.1OHM SMD |
842 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±5% | 411 mA | - | Unshielded | 1.1Ohm Max | 30 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-822JFIXED IND 8.2UH 305MA 2 OHM SMD |
716 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±5% | 305 mA | - | Unshielded | 2Ohm Max | 30 @ 7.9MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

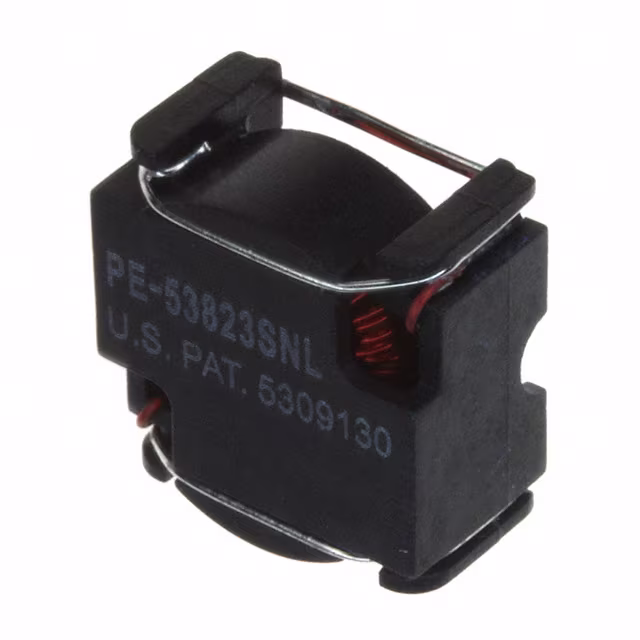

PE-53823SNLFIXED IND 38UH 1.2A 100 MOHM SMD |
617 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 38 µH | ±20% | 1.2 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-54041SNLTFIXED IND 25UH 3A 40 MOHM SMD |
520 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
1210R-182JFIXED IND 1.8UH 454MA 900MOHM SM |
439 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±5% | 454 mA | - | Unshielded | 900mOhm Max | 30 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-152JFIXED IND 1.5UH 467MA 850MOHM SM |
397 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±5% | 467 mA | - | Unshielded | 850mOhm Max | 30 @ 7.9MHz | 85MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
|
1210R-153JFIXED IND 15UH 257MA 2.8 OHM SMD |
267 |
|
Datasheet |
1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±5% | 257 mA | - | Unshielded | 2.8Ohm Max | 30 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

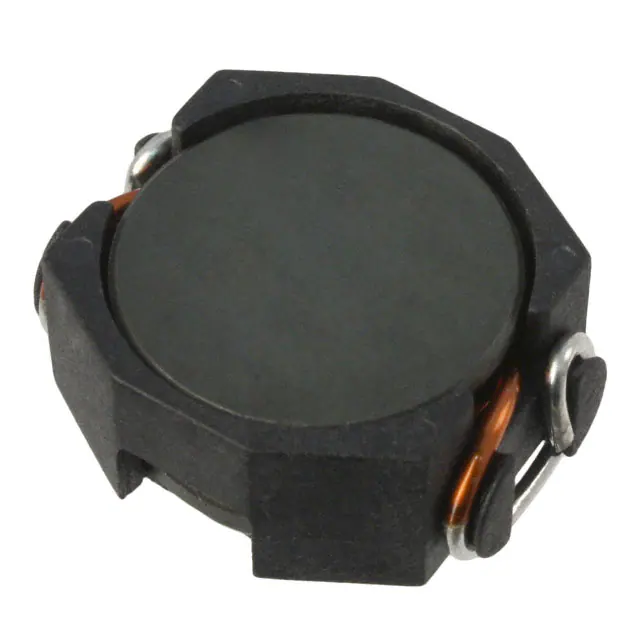

PB2020.153NLFIXED IND 15UH 9.7A 13 MOHM SMD |
1,271 |
|
Datasheet |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 15 µH | ±20% | 9.7 A | 18A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
