Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPCG1040LR45FIXED IND 450NH 25A 1.1 MOHM SMD |
2,133 |
|
Datasheet |
MPCG | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 450 nH | ±20% | 25 A | 27A | Shielded | 1.1mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

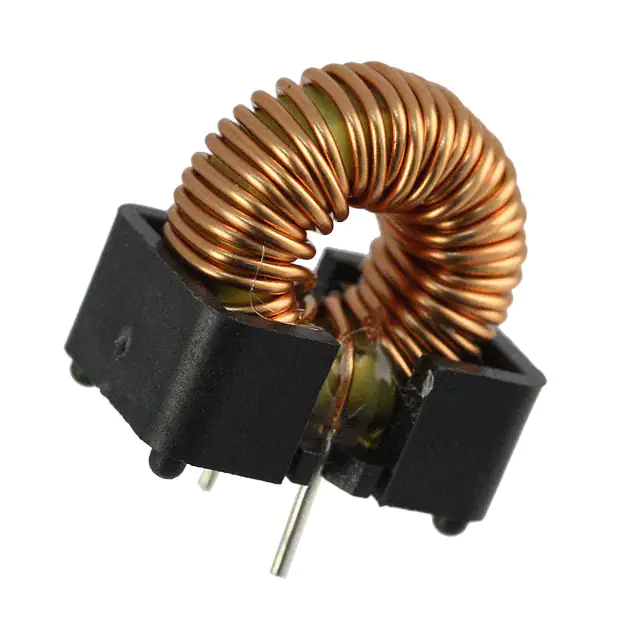

PE-54041NLFIXED IND 25UH 3A 40 MOHM TH |
1,104 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.700" (17.78mm) |
|
744106FIXED IND 393UH 1.1A 700 MOHM TH |
358 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 393 µH | ±20% | 1.1 A | 500mA | Unshielded | 700mOhm Max | - | 2.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|
SPD62R-563MFIXED IND 56UH 680MA 850MOHM SMD |
12,657 |
|
Datasheet |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 680 mA | 680mA | Shielded | 850mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
|
SPD62R-683MFIXED IND 68UH 560MA 1.2 OHM SMD |
3,328 |
|
Datasheet |
SPD62R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 560 mA | 560mA | Shielded | 1.2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.118" (3.00mm) |
|
TPI128080L230NFIXED IND 230NH 50A 0.29MOHM SMD |
0 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 230 nH | ±10% | 50 A | 64A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.315" (8.00mm) |
|
2200LL-121-H-RCFIXED IND 120UH 5.1A 47 MOHM TH |
582 |
|
Datasheet |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 120 µH | ±15% | 5.1 A | - | Unshielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
|
TPI118082L150NFIXED IND 150NH 50A 0.29MOHM SMD |
135 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 50 A | 93A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.315" W (11.20mm x 8.00mm) | 0.323" (8.20mm) |
|

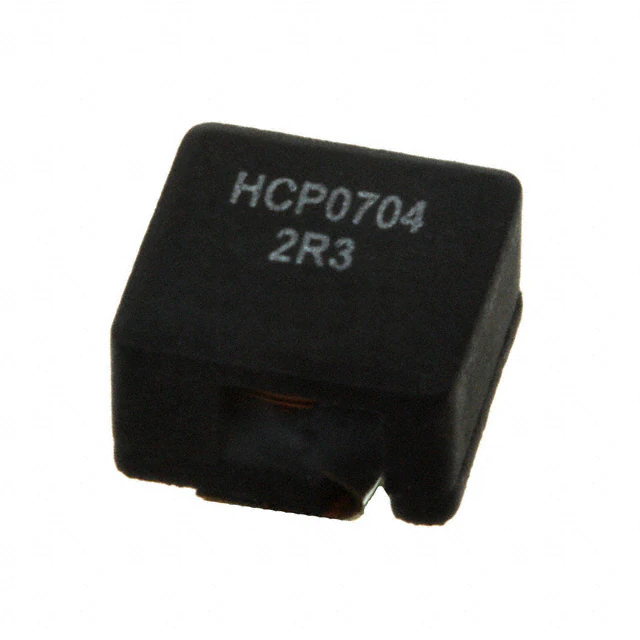

HCP0704-2R3-RFIXED IND 2.3UH 7.5A 16.5MOHM SM |
818 |
|
Datasheet |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.3 µH | ±25% | 7.5 A | 11.5A | Shielded | 16.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
HCV1206-1R5-RFIXED IND 1.5UH 12A 6 MOHM SMD |
535 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 12 A | 21A | Unshielded | 6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
PM2120-220K-RCFIXED IND 22UH 11A 11 MOHM SMD |
223 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 22 µH | ±10% | 11 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-270K-RCFIXED IND 27UH 10.4A 12 MOHM SMD |
215 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 27 µH | ±10% | 10.4 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-271K-RCFIXED IND 270UH 4.2A 72 MOHM SMD |
123 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 270 µH | ±10% | 4.2 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.800" (20.32mm) |
|
|
PM2120-561K-RCFIXED IND 560UH 3.2A 130MOHM SMD |
115 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 560 µH | ±10% | 3.2 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.850" (21.59mm) |
|
|
PM2120-150K-RCFIXED IND 15UH 12.2A 9 MOHM SMD |
112 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 15 µH | ±10% | 12.2 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-331K-RCFIXED IND 330UH 3.6A 100MOHM SMD |
105 |
|
Datasheet |
PM2120 | Nonstandard | Bulk | Active | Toroidal | Iron | 330 µH | ±10% | 3.6 A | - | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.780" (19.81mm) |
|
|
TPI128080L180NFIXED IND 180NH 50A 0.29MOHM SMD |
775 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 nH | ±10% | 50 A | 78A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.315" (8.00mm) |
|
|
UP5S-220-RFIXED IND 22UH 3.15A 45 MOHM SMD |
644 |
|
Datasheet |
UNI-PAC™ 5S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.15 A | 5.05A | Shielded | 45mOhm Max | - | 15MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
TPI128080L210NFIXED IND 210NH 50A 0.29MOHM SMD |
451 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | ±10% | 50 A | 70A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.315" (8.00mm) |
|

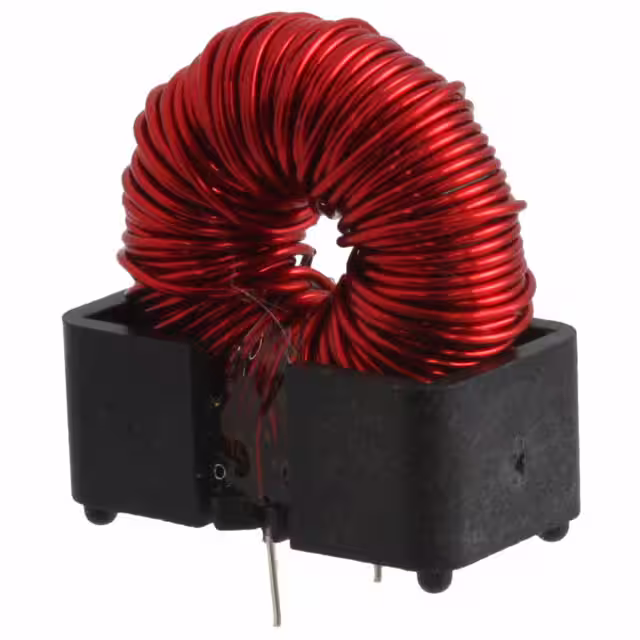

PE-53935NLFIXED IND 250UH 1.5A 230 MOHM TH |
814 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
