Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74459168FIXED IND 68UH 2.2A 0.138OHM SMD |
680 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 68 µH | ±20% | 2.2 A | 3A | Shielded | 138mOhm Max | - | 7.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
IHLD4032KBER330M5AFIXED IND 33UH 3.8A 107MOHM SMD |
284 |
|
Datasheet |
IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3.8 A | 3.7A | Shielded | 107mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.379" W (11.90mm x 9.62mm) | 0.441" (11.20mm) |
|
HCM1A1104-R47-RFIXED IND 470NH 28.5A 1.27 MOHM |
500 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 28.5 A | - | Shielded | 1.27mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
HCM1A1104-R56-RFIXED IND 560NH 22.5A 1.8MOHM SM |
500 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 560 nH | ±20% | 22.5 A | 24A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
2212-H-RCFIXED IND 100UH 4.4A 56 MOHM TH |
4,214 |
|
Datasheet |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 4.4 A | - | Shielded | 56mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|

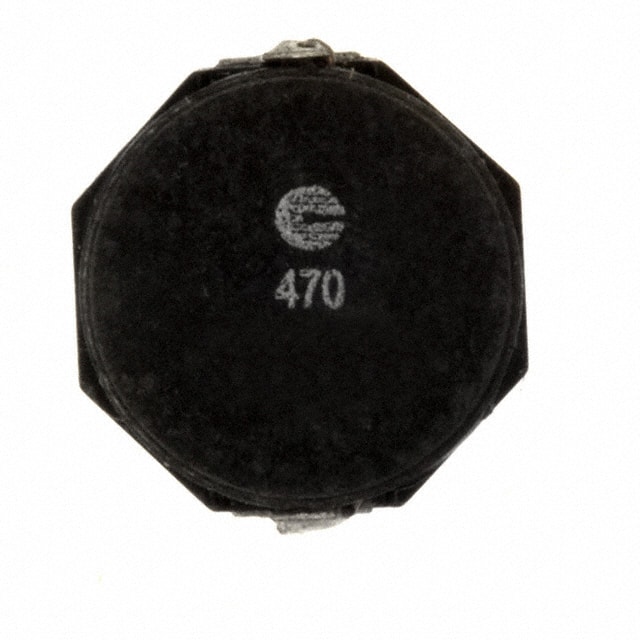

SD8328-470-RFIXED IND 47UH 1.3A 194 MOHM SMD |
1,080 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.3 A | 1.2A | Shielded | 194mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
PG0426.221NLTFIXED IND 220NH 26A 2.2 MOHM SMD |
4,930 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 26 A | 40A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PG0426.201NLTFIXED IND 200NH 26A 2.2 MOHM SMD |
2,095 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 200 nH | ±20% | 26 A | 46A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
7447797022FIXED IND 220NH 16A 3.5 MOHM SMD |
530 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 nH | ±30% | 16 A | 32A | Shielded | 3.5mOhm Max | - | 328MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|
|
7447797050FIXED IND 500NH 13.2A 5 MOHM SMD |
361 |
|
Datasheet |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 500 nH | ±30% | 13.2 A | 23A | Shielded | 5mOhm Max | - | 182MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.177" (4.50mm) |
|

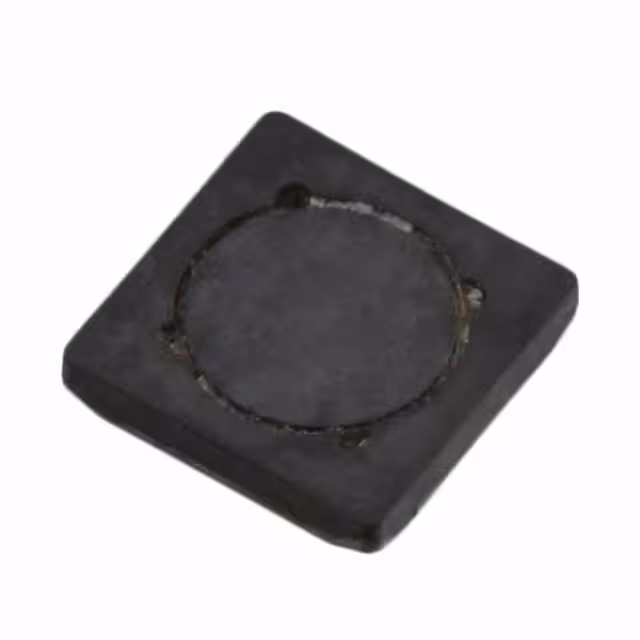

SD10-4R7-RFIXED IND 4.7UH 1.04A 153.5 MOHM |
3,842 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.04 A | 1.08A | Shielded | 153.5mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
P3519R-121KFIXED IND 120NH 5.11A 11MOHM SMD |
1,681 |
|
Datasheet |
P3519R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 5.11 A | 12.47A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
DRAP127-100-RFIXED IND 10UH 6.02A 21 MOHM SMD |
828 |
|
Datasheet |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 6.02 A | 11.2A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
|
P3519R-682JFIXED IND 6.8UH 1.46A 137MOHM SM |
495 |
|
Datasheet |
P3519R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 1.46 A | 1.66A | Unshielded | 137mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
|
P3519R-102JFIXED IND 1UH 3A 33 MOHM SMD |
416 |
|
Datasheet |
P3519R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 3 A | 4.32A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.358" L x 0.190" W (9.09mm x 4.83mm) | 0.185" (4.70mm) |
|
TPI078060L056NFIXED IND 56NH 53A 0.31 MOHM SMD |
1,888 |
|
Datasheet |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 nH | ±10% | 53 A | 81A | Shielded | 0.31mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.236" (6.00mm) |
|
MPCV1060L1R5FIXED IND 1.5UH 22A 2.75MOHM SMD |
940 |
|
Datasheet |
MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 22 A | 27A | Shielded | 2.75mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.236" (6.00mm) |
|
|
MPCV1060LR68FIXED IND 680NH 32A 1.54MOHM SMD |
215 |
|
Datasheet |
MPCV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 32 A | 38A | Shielded | 1.54mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.236" (6.00mm) |
|
|
DRAP127-6R8-RFIXED IND 6.8UH 6.52A 18MOHM SMD |
1,190 |
|
Datasheet |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 6.52 A | 13.3A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
IHLD3232HBER220M5AFIXED IND 22UH 3.3A 110.21 MOHM |
512 |
|
Datasheet |
IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.3 A | 2.9A | Shielded | 110.21mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.365" (9.27mm) |
