Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIUR-15-151KFIXED IND 150UH 2.7A 110 MOHM TH |
954 |
|
Datasheet |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2.7 A | - | Unshielded | 110mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
|
74458247FIXED IND 470UH 820MA 850MOHM SM |
892 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 820 mA | 1.6A | Unshielded | 850mOhm Max | - | 2.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
PE-92105NLFIXED IND 145UH 3A 87 MOHM TH |
1,787 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 145 µH | ±20% | 3 A | - | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia x 0.550" W (26.67mm x 13.97mm) | - |
|
IHLD3232HBER100M5AFIXED IND 10UH 5A 53.5 MOHM SMD |
998 |
|
Datasheet |
IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 5.2A | Shielded | 53.5mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.365" (9.27mm) |
|
DRAP125-101-RFIXED IND 100UH 1.75A 214MOHM SM |
990 |
|
Datasheet |
DRAP125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.75 A | 2.21A | Shielded | 214mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.240" (6.10mm) |
|
|
74453010FIXED IND 10UH 1.24A 0.145OHM SM |
1,667 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 1.24 A | 2.9A | Shielded | 145mOhm Max | - | 29MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|

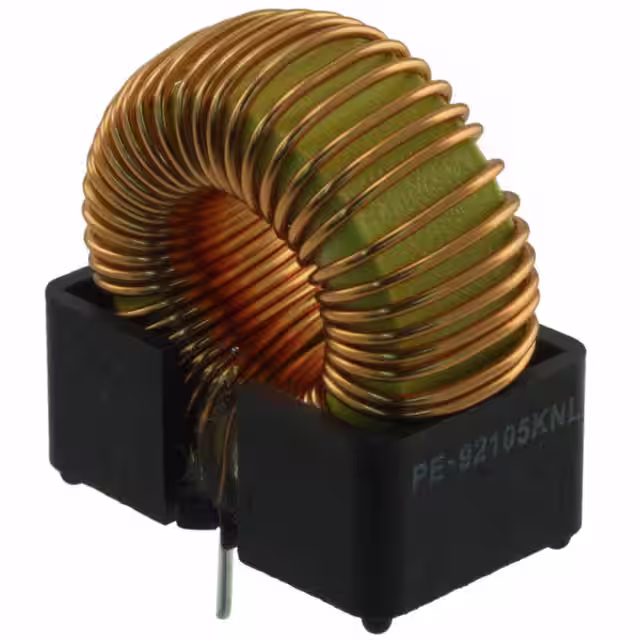

PE-92105KNLFIXED IND 145UH 3A 87 MOHM TH |
0 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 145 µH | ±20% | 3 A | - | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
74437377022FIXED IND 2.2UH 10A 0.008OHM SMD |
1,471 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 10 A | 31.2A | Shielded | 8mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744373770068FIXED IND 680NH 17.5A 0.0022OHM |
513 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 680 nH | ±20% | 17.5 A | 42.5A | Shielded | 2.2mOhm Max | - | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
74437377015FIXED IND 1.5UH 12.5A 0.0055OHM |
410 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 12.5 A | 33.8A | Shielded | 5.5mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
DRA125-680-RFIXED IND 68UH 2.125A 120MOHM SM |
377 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.125 A | 2.635A | Shielded | 120mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
744373770033FIXED IND 330NH 24A 0.00105OHM |
332 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 24 A | 65.5A | Shielded | 1.05mOhm Max | - | 84MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
HCM1A1104-101-RFIXED IND 100UH 1.5A 300MOHM SMD |
306 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 µH | ±20% | 1.5 A | 2A | Shielded | 300mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
7445304FIXED IND 4.7UH 1.9A 0.078OHM SM |
1,820 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 4.7 µH | ±20% | 1.9 A | 3.6A | Shielded | 78mOhm Max | - | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
SBC8-680-322FIXED IND 68UH 3.2A 60 MOHM TH |
1,768 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.2 A | 4.3A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
FPT1006-500-RFIXED IND 500NH 19A 1 MOHM SMD |
1,229 |
|
Datasheet |
FPT1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±10% | 19 A | 27.5A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.380" L x 0.335" W (9.65mm x 8.50mm) | 0.252" (6.40mm) |
|
|
SBC8-331-142FIXED IND 330UH 1.4A 250 MOHM TH |
330 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.4 A | 2A | Unshielded | 250mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
DRA127-1R0-RFIXED IND 1UH 19.22A 1.7MOHM SMD |
467 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 19.22 A | 40A | Shielded | 1.7mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRA73-680-RFIXED IND 68UH 845MA 397MOHM SMD |
1,357 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 845 mA | 937mA | Shielded | 397mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
PG0426.102NLTFIXED IND 1UH 13A 8 MOHM SMD |
325 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 13 A | 22A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
