Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

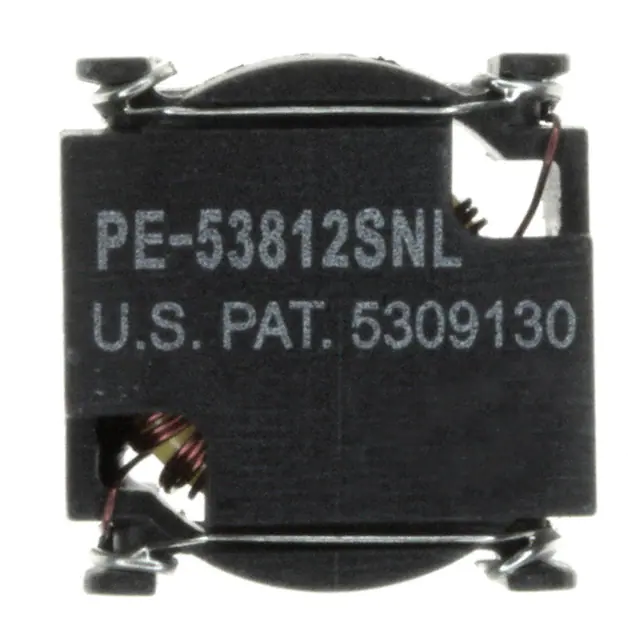

PE-53812SNLFIXED IND 78UH 460MA 800MOHM SMD |
640 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 78 µH | ±20% | 460 mA | - | Shielded | 800mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
DRAP124-101-RFIXED IND 100UH 1.2A 355MOHM SMD |
1,464 |
|
Datasheet |
DRAP124 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.2 A | 2A | Shielded | 355mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.181" (4.60mm) |
|
DRA125-221-RFIXED IND 220UH 1.142A 416 MOHM |
1,279 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.142 A | 1.469A | Shielded | 416mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
IHSM3825ER4R7LFIXED IND 4.7UH 2.17A 83MOHM SMD |
367 |
|
Datasheet |
IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±15% | 2.17 A | 1.93A | Unshielded | 83mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
PE-53662NLTFIXED IND 4.9UH 7.8A 12.4MOHM SM |
1,644 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 4.9 µH | - | 7.8 A | - | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
1025-02KFIXED IND 180NH 1.12A 120MOHM TH |
4,802 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±10% | 1.12 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-44KFIXED IND 10UH 144MA 3.3 OHM TH |
3,235 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-42KFIXED IND 8.2UH 160MA 2.7 OHM TH |
1,598 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 8.2 µH | ±10% | 160 mA | - | Unshielded | 2.7Ohm Max | 55 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-50KFIXED IND 18UH 149MA 3.1 OHM TH |
1,321 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 18 µH | ±10% | 149 mA | - | Unshielded | 3.1Ohm Max | 50 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
DRA73-R33-RFIXED IND 330NH 8.42A 4 MOHM SMD |
1,299 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 8.42 A | 14.8A | Shielded | 4mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
1025-32KFIXED IND 3.3UH 285MA 850MOHM TH |
1,000 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 3.3 µH | ±10% | 285 mA | - | Unshielded | 850mOhm Max | 45 @ 7.9MHz | 90MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-38KFIXED IND 5.6UH 195MA 1.8 OHM TH |
758 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±10% | 195 mA | - | Unshielded | 1.8Ohm Max | 50 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-22KFIXED IND 1.2UH 620MA 180MOHM TH |
597 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 1.2 µH | ±10% | 620 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-12KFIXED IND 470NH 660MA 350MOHM TH |
581 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±10% | 660 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-06KFIXED IND 270NH 975MA 160MOHM TH |
355 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 975 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-00KFIXED IND 150NH 1.23A 100MOHM TH |
273 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75083 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±10% | 1.23 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-26KFIXED IND 1.8UH 480MA 300MOHM TH |
114 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 1.8 µH | ±10% | 480 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025-36KFIXED IND 4.7UH 239MA 1.2 OHM TH |
105 |
|
Datasheet |
Military, MIL-PRF-M15305, MS75084 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 239 mA | - | Unshielded | 1.2Ohm Max | 45 @ 7.9MHz | 75MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
PG0642.682NLFIXED IND 6.8UH 6A 26.4 MOHM SMD |
710 |
|
Datasheet |
PG0642NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 6 A | 8A | Shielded | 26.4mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.311" L x 0.299" W (7.90mm x 7.60mm) | 0.197" (5.00mm) |
|
SD14-3R2-RFIXED IND 3.2UH 1.94A 66.3 MOHM |
2,970 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.2 µH | ±20% | 1.94 A | 2.08A | Shielded | 66.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
