Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-74-RCFIXED IND 180UH 79MA 17 OHM TH |
133 |
|
Datasheet |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 79 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
VLBU1007090T-R12LFIXED IND 120NH 70A 0.18MOHM SMD |
180 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 70 A | 110A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.354" (9.00mm) |
|

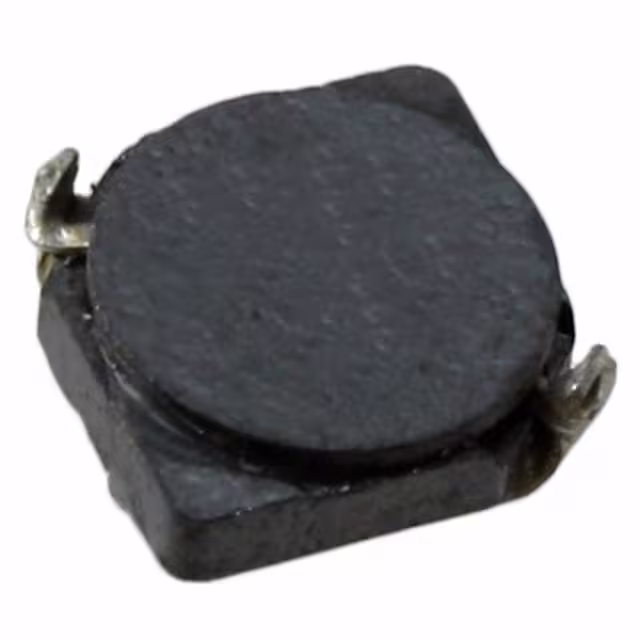

SD6020-4R1-RFIXED IND 4.1UH 2.22A 57MOHM SMD |
3,221 |
|
Datasheet |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.1 µH | ±30% | 2.22 A | 1.95A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
5900-822-RCFIXED IND 8.2MH 260MA 6 OHM TH |
1,699 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 260 mA | 290mA | Unshielded | 6Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-122-RCFIXED IND 1.2MH 680MA 910MOHM TH |
1,487 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 680 mA | 760mA | Unshielded | 910mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-392-RCFIXED IND 3.9MH 370MA 3.1 OHM TH |
850 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 370 mA | 420mA | Unshielded | 3.1Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
PM74SB-150M-RCFIXED IND 15UH 1.39A 80 MOHM SMD |
800 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.39 A | 1.68A | Shielded | 80mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
CDRH10D60BT150NP-150MCFIXED IND 15UH 5.3A 30 MOHM SMD |
474 |
|
Datasheet |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 5.3 A | 3.6A | Shielded | 30mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
CDRH10D60BT150NP-680MCFIXED IND 68UH 2.4A 88 MOHM SMD |
409 |
|
Datasheet |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 2.4 A | 2.36A | Shielded | 88mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
|
5900-560-RCFIXED IND 56UH 2.9A 50 MOHM TH |
202 |
|
Datasheet |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 2.9 A | 3.5A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
HCM1A0805-220-RFIXED IND 22UH 2A 110 MOHM SMD |
158 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 2 A | 3.8A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
|
744778928FIXED IND 820UH 210MA 6.54OHM SM |
890 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 210 mA | 200mA | Shielded | 6.54Ohm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
744778925FIXED IND 560UH 270MA 4.67OHM SM |
862 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 270 mA | 300mA | Shielded | 4.67Ohm Max | - | 3.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
7443310330FIXED IND 3.3UH 13A 7.7 MOHM SMD |
672 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 13 A | 39A | Shielded | 7.7mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
UP2B-101-RFIXED IND 100UH 1.2A 270.7 MOHM |
495 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 950mA | Unshielded | 270.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
|
7443310033FIXED IND 330NH 27A 1.5 MOHM SMD |
300 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 27 A | 80A | Shielded | 1.5mOhm Max | - | 190MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
MPX1D1264L150FIXED IND 15UH 9.8A 24.9MOHM SMD |
287 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 9.8 A | 11.5A | Shielded | 24.9mOhm Max | - | 6.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
7443310068FIXED IND 680NH 23A 1.85MOHM SMD |
274 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 23 A | 74A | Shielded | 1.85mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320047FIXED IND 470NH 26A 1.85MOHM SMD |
264 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 26 A | 48A | Shielded | 1.85mOhm Max | - | 138MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443310047FIXED IND 470NH 23A 1.85MOHM SMD |
255 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 23 A | 76A | Shielded | 1.85mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
