Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1025R-12KFIXED IND 470NH 660MA 350MOHM TH |
374 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Phenolic | 470 nH | ±10% | 660 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
PAL6374.181HLTIND POWER BEAD TLVR |
350 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±15% | 71 A | 40A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.900HLTIND POWER BEAD TLVR |
350 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 90 nH | ±15% | 71 A | 90A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.101HLTIND POWER BEAD TLVR |
350 |
|
Datasheet |
PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 71 A | 82A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
MPXV1D1250LR33FIXED IND 330NH 41.6A 1.3MOHM SM |
248 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 41.6 A | 65A | Shielded | 1.3mOhm Max | - | 68MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1250LR22FIXED IND 220NH 42.7A 1.2MOHM SM |
207 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 42.7 A | 85A | Shielded | 1.2mOhm Max | - | 95MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPXV1D1264L6R8FIXED IND 6.8UH 14A 12.3MOHM SMD |
156 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 14 A | 16A | Shielded | 12.3mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPXV1D1250L470FIXED IND 47UH 4.5A 105.4MOHM SM |
146 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 4.5 A | 5.5A | Shielded | 105.4mOhm Max | - | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
1025R-38KFIXED IND 5.6UH 195MA 1.8 OHM TH |
133 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Iron | 5.6 µH | ±10% | 195 mA | - | Unshielded | 1.8Ohm Max | 50 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
DRA125-330-RFIXED IND 33UH 3.19A 53 MOHM SMD |
6,484 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3.19 A | 3.86A | Shielded | 53mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
HCB0750-700L2FIXED IND 70NH 41A 0.25MOHM SMD |
2,916 |
|
Datasheet |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±20% | 41 A | 75A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|
CDMT40D20HF-3R3NCFIXED IND 3.3UH 3A 46.2 MOHM SMD |
2,581 |
|
Datasheet |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±30% | 3 A | 4.3A | Shielded | 46.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.083" (2.10mm) |
|

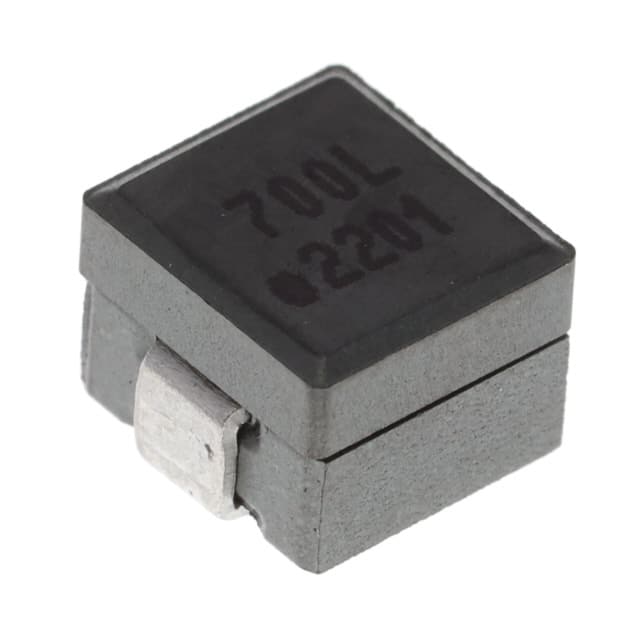

HCB0750-700LFIXED IND 70NH 48A 0.19MOHM SMD |
2,453 |
|
Datasheet |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±20% | 48 A | 75A | Unshielded | 0.19mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.205" (5.20mm) |
|
|
HCB0750-101FIXED IND 100NH 37A 0.32MOHM SMD |
1,993 |
|
Datasheet |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | 37 A | 53A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|
|
HCB0750-121FIXED IND 120NH 37A 0.32MOHM SMD |
1,986 |
|
Datasheet |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±20% | 37 A | 42A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|
|
CDMT40D20HF-1R5NCFIXED IND 1.5UH 4.4A 21.5MOHM SM |
1,924 |
|
Datasheet |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±30% | 4.4 A | 7.1A | Shielded | 21.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.083" (2.10mm) |
|
|
HCB0750-121LFIXED IND 120NH 48A 0.19MOHM SMD |
1,285 |
|
Datasheet |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±20% | 48 A | 42A | Unshielded | 0.19mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.205" (5.20mm) |
|
MPX1D1264L4R7FIXED IND 4.7UH 17.1A 8.2MOHM SM |
383 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 17.1 A | 19.5A | Shielded | 8.2mOhm Max | - | 13MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
|
MPX1D1264L2R2FIXED IND 2.2UH 25.4A 3.7MOHM SM |
350 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 25.4 A | 32A | Shielded | 3.7mOhm Max | - | 20MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|
DRA74-820-RFIXED IND 82UH 879MA 367MOHM SMD |
124 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 879 mA | 1.034A | Shielded | 367mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
