Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC8-100-692FIXED IND 10UH 6.9A 20 MOHM TH |
883 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.9 A | 11.8A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-220-492FIXED IND 22UH 4.9A 30 MOHM TH |
879 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.9 A | 7.8A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-330-452FIXED IND 33UH 4.5A 40 MOHM TH |
603 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 4.5 A | 6.5A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
|
SBC8-101-242FIXED IND 100UH 2.4A 90 MOHM TH |
597 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.4 A | 3.5A | Unshielded | 90mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia (15.00mm) | 0.748" (19.00mm) |
|
DRA124-220-RFIXED IND 22UH 2.44A 71 MOHM SMD |
298 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.44 A | 4.16A | Shielded | 71mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
IHSM4825ER1R0LFIXED IND 1UH 8.6A 13 MOHM SMD |
1,980 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±15% | 8.6 A | 4.1A | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
744393440033FIXED IND 330NH 16.5A 2.1MOHM SM |
794 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 16.5 A | 31A | Shielded | 2.1mOhm | - | 127MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
784770330FIXED IND 33UH 3.4A 55 MOHM SMD |
603 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 33 µH | ±20% | 3.4 A | 4A | Shielded | 55mOhm Max | - | 9.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
74454215FIXED IND 150UH 550MA 0.52OHM SM |
555 |
|
Datasheet |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 150 µH | ±10% | 550 mA | 800mA | Shielded | 520mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
784770470FIXED IND 47UH 3.1A 71 MOHM SMD |
446 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 3.1 A | 3.4A | Shielded | 71mOhm Max | - | 7.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
|
784770101FIXED IND 100UH 2.1A 144MOHM SMD |
399 |
|
Datasheet |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 2.1 A | 2.3A | Shielded | 144mOhm Max | - | 5.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1280 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.327" (8.30mm) |
|
7445630FIXED IND 1MH 400MA 3.9 OHM SMD |
334 |
|
Datasheet |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 400 mA | 520mA | Unshielded | 3.9Ohm Max | - | 1.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
MPL-AY1265-1R8FIXED IND 1.8UH 20A 3.3 MOHM SMD |
670 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | - | 20 A | 29A | Unshielded | 3.3mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
MPL-AY1265-8R2FIXED IND 8.2UH 11.5A 12.5 MOHM |
314 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | - | 11.5 A | 18A | Unshielded | 12.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|

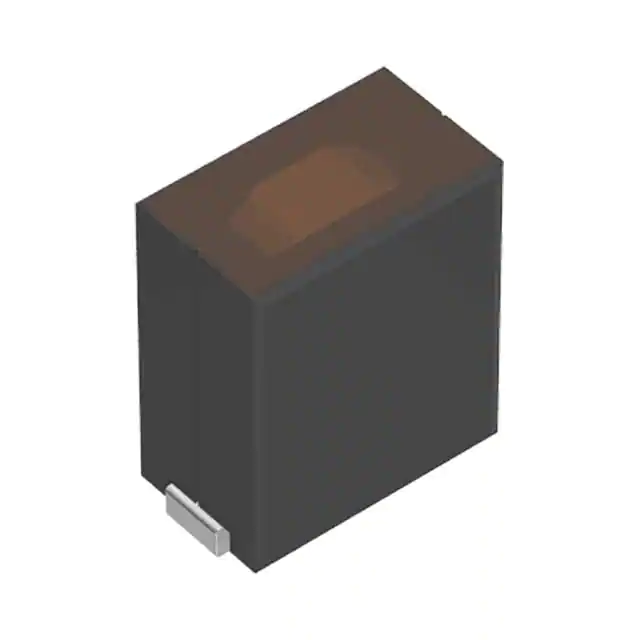

VLBU10060120T-R15LFIXED IND 150NH 83A 0.12MOHM SMD |
300 |
|
Datasheet |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 83 A | 92A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
MPL-AY1265-R56FIXED IND 560NH 31A 1.1 MOHM SMD |
115 |
|
- |
MPL-AY | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | - | 560 nH | - | 31 A | 58A | Unshielded | 1.1mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
PG1083.253NLFIXED IND 1UH 11A 15 MOHM SMD |
770 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 11 A | 14.5A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
|
PG1083.332NLFIXED IND 3.3UH 28A 2.2 MOHM SMD |
705 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 3.3 µH | ±20% | 28 A | 37A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
744300022FIXED IND 220NH 37A 0.00022OHM |
762 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 37 A | 21.6A | Shielded | 0.22mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 9065 | 0.340" L x 0.250" W (8.64mm x 6.35mm) | 0.177" (4.50mm) |
|
MPXV1D1264L1R0FIXED IND 1UH 32.2A 2.3MOHM SMD |
382 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 32.2 A | 45A | Shielded | 2.3mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
