Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPEV1D1040L470FIXED IND 47UH 3A 182.6MOHM SMD |
1,142 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 47 µH | ±20% | 3 A | 4A | Shielded | 182.6mOhm Max | - | 4.5MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
SPM6550T-2R2M-HZFIXED IND 2.2UH 14.2A 10.67 MOHM |
1,074 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 14.2 A | 6.2A | Shielded | 10.67mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|

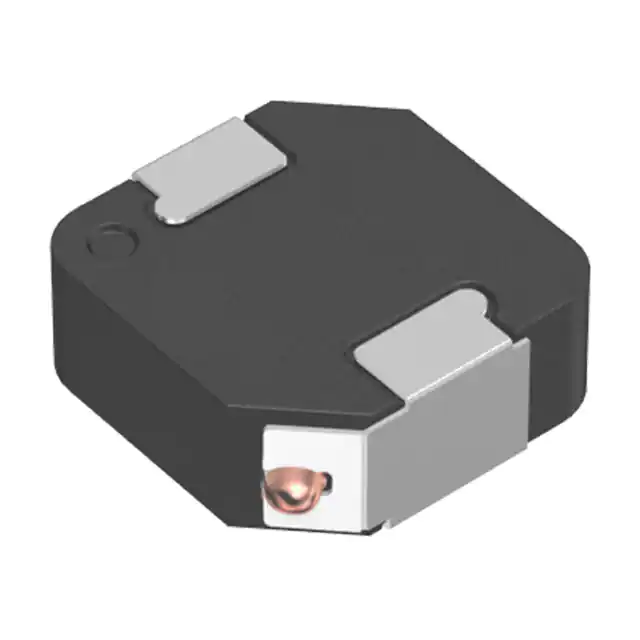

SPM10040T-R47M-HZFIXED IND 470NH 33A 1.91MOHM SMD |
765 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 470 nH | ±20% | 33 A | 24.9A | Shielded | 1.91mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
MPEV1D1040L1R5FIXED IND 1.5UH 17.7A 5.4MOHM SM |
727 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 17.7 A | 26A | Shielded | 5.4mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPM6550T-220M-HZFIXED IND 22UH 2.6A 171.6MOHM SM |
605 |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 2.6 A | 2.2A | Shielded | 171.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
FP1110V2-R200-RFIXED IND 200NH 61A 0.18MOHM SMD |
293 |
|
Datasheet |
FP1110V | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±10% | 61 A | 52A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.374" (9.50mm) |
|
|
MPEV1D1040L100FIXED IND 10UH 7A 34.1 MOHM SMD |
194 |
|
Datasheet |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 7 A | 10.5A | Shielded | 34.1mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
.6mm.jpg)
|
744383220047FIXED IND 470NH 2.25A 87MOHM SMD |
2,834 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±30% | 2.25 A | 4.4A | Shielded | 87mOhm Max | - | 160MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2506 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
P0762.103NLTFIXED IND 10UH 2A 110 MOHM SMD |
2,467 |
|
Datasheet |
P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2 A | 2.4A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
PF0464.153NLFIXED IND 15UH 2.35A 75 MOHM SMD |
2,330 |
|
Datasheet |
PF0464NL | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 2.35 A | 1.4A | Shielded | 75mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|
IHSR2525CZERR10M51IHSR-2525CZ-51 .1 20% ER |
2,248 |
|
Datasheet |
IHSR-2525CZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
784383360047WE-MAIA SMT POWER INDUCTOR 0.47 |
1,990 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 470 nH | ±30% | 4.8 A | 8A | Shielded | 22mOhm Max | - | 99MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
AMSLA-1280-R22K-TIND 0.22UH 50A 0.31M |
1,918 |
|
Datasheet |
AMSLA-1280 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 220 nH | ±10% | 50 A | 54A | Shielded | 0.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.315" W (12.00mm x 8.00mm) | 0.276" (7.00mm) |
|
744062680FIXED IND 68UH 640MA 360MOHM SMD |
1,792 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 640 mA | 500mA | Shielded | 360mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
744062470FIXED IND 47UH 730MA 280MOHM SMD |
1,633 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 730 mA | 620mA | Shielded | 280mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
74438322022FIXED IND 2.2UH 1.34A 302MOHM SM |
1,063 |
|
Datasheet |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±30% | 1.34 A | 2.2A | Shielded | 302mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2508 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
744062006FIXED IND 6.2UH 1.9A 54 MOHM SMD |
981 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±30% | 1.9 A | 1.8A | Shielded | 54mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
784383360068WE-MAIA SMT POWER INDUCTOR 0.68 |
949 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 680 nH | ±30% | 4.5 A | 6.2A | Shielded | 27mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
3631B221KLFIXED IND 220UH 700MA 460MOHM SM |
921 |
|
Datasheet |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 700 mA | - | Shielded | 460mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
|
78438336015WE-MAIA SMT POWER INDUCTOR 1.5 U |
916 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.5 µH | ±20% | 3.7 A | 4.5A | Shielded | 39mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
