Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFEG7030D-8R2M=P3FIXED IND 8.2UH 3.1A 78MOHM SMD |
720 |
|
Datasheet |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 8.2 µH | ±20% | 3.1 A | 4.2A | Shielded | 78mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
B82476A1332M000FIXED IND 3.3UH 5.4A 13.5MOHM SM |
633 |
|
Datasheet |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.4 A | 6.4A | Unshielded | 13.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
VCMT104T-1R0MN5FIXED IND 1UH 18A 3.1 MOHM SMD |
627 |
|
Datasheet |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 18 A | 18A | Unshielded | 3.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
ASPIAIG-F1040-330M-TFIXED IND 33UH 3.5A 112 MOHM SMD |
480 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.5 A | 5A | Shielded | 112mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
EXLA1V0707-1R0-RIND MOLDED SHLD 1.0UH 20.0A |
398 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 25 A | 31.8A | Shielded | 2.81mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
LTF4022T-220M-DFIXED IND 22UH 400MA 370MOHM SMD |
222 |
|
Datasheet |
LTF4022-D | 2-SMD | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 400 mA | 660mA | Shielded | 370mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.087" (2.20mm) |
|
|
B82476A1472M000FIXED IND 4.7UH 4.8A 16.5MOHM SM |
136 |
|
Datasheet |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.8 A | 5.4A | Unshielded | 16.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
HCM1A0703-100-RFIXED IND 10UH 3A 77.6 MOHM SMD |
108 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 3 A | 4.4A | Shielded | 77.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|

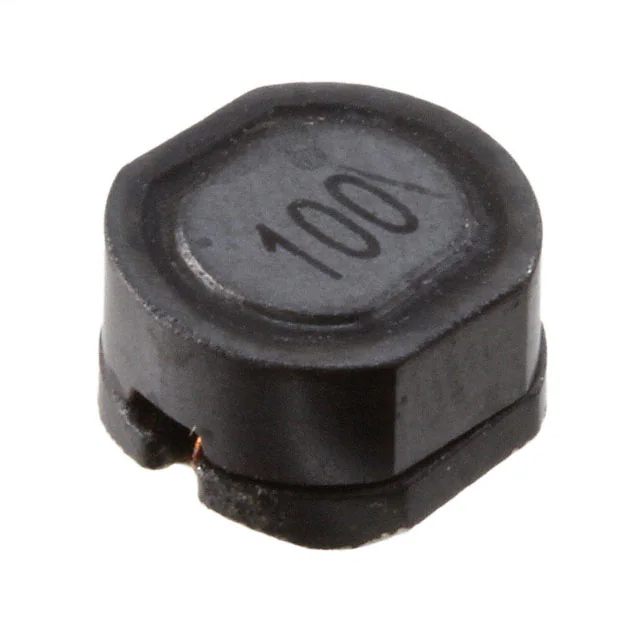

PM74SB-100M-RCFIXED IND 10UH 1.65A 70 MOHM SMD |
2,643 |
|
Datasheet |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.65 A | 2A | Shielded | 70mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
|
CMLS065T-R47MSFIXED IND 470NH 18A 3.9 MOHM SMD |
1,992 |
|
Datasheet |
CMLS065T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 18 A | 30A | Unshielded | 3.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.278" L x 0.260" W (7.05mm x 6.60mm) | 0.197" (5.00mm) |
|
|
EXLA1V0703-3R3-RIND MOLDED SHLD 3.3UH 8.0A |
1,496 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 10 A | 13A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
EXLA1V0703-8R2-RIND MOLDED SHLD 8.2UH 3.0A |
1,495 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 8.2 µH | ±20% | 5.9 A | 9A | Shielded | 48.73mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
EXLA1V0703-5R6-RIND MOLDED SHLD 5.6UH 5.3A |
1,450 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 7.3 A | 11.5A | Shielded | 33.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
EXLA1V0703-1R0-RIND MOLDED SHLD 1.0UH 16.1A |
1,415 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 21.8 A | 28A | Shielded | 5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
EXLA1V0703-2R2-RIND MOLDED SHLD 2.2UH 10.0A |
1,405 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 13 A | 17A | Shielded | 13.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
EXLA1V0703-6R8-RIND MOLDED SHLD 6.8UH 4.5A |
1,370 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 6.8 A | 11A | Shielded | 42.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
IHLE4040DDEW2R2M5AFIXED IND 2.2UH 15A 0.00876OHM |
985 |
|
Datasheet |
IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 15 A | 12A | Shielded | 8.76mOhm Max | - | 30.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
SBC9-220-312FIXED IND 22UH 3.1A 40 MOHM TH |
480 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.1 A | 6.2A | Unshielded | 40mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.472" (12.00mm) |
|
IHLP3232DZER1R0M8AIHLP-3232DZ-8A 1 20% ER E3 |
204 |
|
Datasheet |
IHLP-3232DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 19 A | 16.2A | Shielded | 4.9mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
MPI4015V2-1R0-RFIXED IND 1UH 5.5A 27 MOHM SMD |
12,176 |
|
Datasheet |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 5.5 A | 6A | Shielded | 27mOhm Max | - | 56MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
