Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A0503-R20-RFIXED IND 200NH 15.8A 2.3MOHM SM |
3,080 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 200 nH | ±20% | 15.8 A | 18A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
PG2290.121HLTINDUCTOR PWR BEAD 120NH 140A |
2,700 |
|
Datasheet |
PG2290.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±10% | 75 A | 140A | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
PG2290.151HLTINDUCTOR PWR BEAD150NH 115A |
2,695 |
|
Datasheet |
PG2290.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 75 A | 115A | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
PG2290.321HLTINDUCTOR PWR BEAD 320NH 54A |
2,685 |
|
Datasheet |
PG2290.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 320 nH | ±10% | 75 A | 54A | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
NS10165T4R7NNVVFIXED IND 4.7UH 5.88A 13.5 MOHM |
2,182 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 5.88 A | 7.7A | Shielded | 13.5mOhm Max | - | 36.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
|
|
PGL6395.101HLTINDUCTOR PWR BEAD 100NH 98A |
2,000 |
|
Datasheet |
PGL6395.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±15% | 70 A | 98A | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.394" (10.00mm) |
|
|
PGL6395.121HLTINDUCTOR PWR BEAD 120NH 82A |
2,000 |
|
Datasheet |
PGL6395.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 70 A | 82A | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.394" (10.00mm) |
|
|
PGL6395.221HLTINDUCTOR PWR BEAD 220NH 42A |
1,991 |
|
Datasheet |
PGL6395.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 70 A | 42A | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.394" (10.00mm) |
|
|
PGL6395.700HLTINDUCTOR PWR BEAD 70NH 141A |
1,960 |
|
Datasheet |
PGL6395.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±15% | 70 A | 141A | Unshielded | 230mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.181" W (10.20mm x 4.60mm) | 0.394" (10.00mm) |
|
IHSR2525CZERR10M5AIHSR-2525CZ-5A .1 20% ER |
1,903 |
|
Datasheet |
IHSR-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±20% | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - |
|
|
HCM1A0503-1R0-RFIXED IND 1UH 7.1A 11.4MOHM SMD |
1,741 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 7.1 A | 8.5A | Shielded | 11.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
1225AS-H-R47N=P2FIXED IND 470NH 3.1A 31 MOHM SMD |
1,715 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 3.1 A | 2.5A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

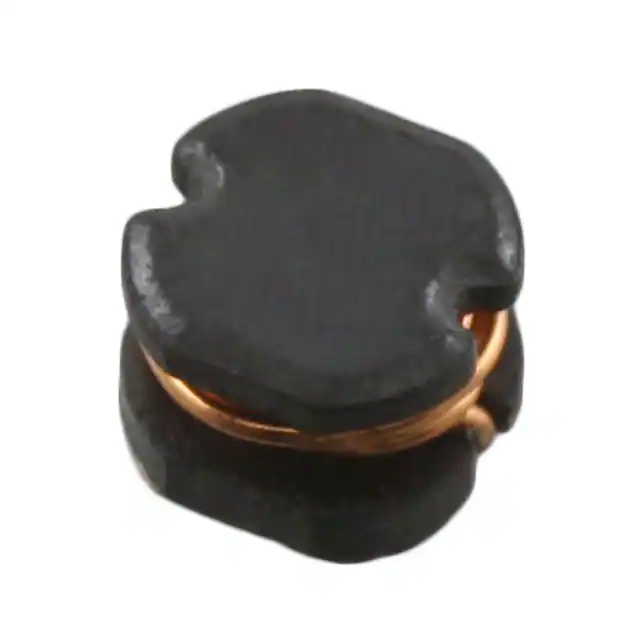

LD1-4R7-RFIXED IND 4.7UH 1.57A 94MOHM SMD |
1,700 |
|
Datasheet |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.57 A | 2A | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
|
1225AS-H-1R5N=P2FIXED IND 1.5UH 2.4A 52 MOHM SMD |
1,640 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.4 A | 1.5A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
SBC6-471-701FIXED IND 470UH 700MA 630MOHM TH |
1,431 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 700 mA | 1.6A | Unshielded | 630mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBC6-1R5-942FIXED IND 1.5UH 9.4A 10 MOHM TH |
1,359 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 9.4 A | 30.9A | Unshielded | 10mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
HCM1A0503-5R6-RFIXED IND 5.6UH 2.8A 70.6MOHM SM |
1,339 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 2.8 A | 4A | Shielded | 70.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
SBC6-151-122FIXED IND 150UH 1.2A 230 MOHM TH |
1,271 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.2 A | 2.8A | Unshielded | 230mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBC6-221-112FIXED IND 220UH 1.1A 330 MOHM TH |
1,068 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.1 A | 2.3A | Unshielded | 330mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
|
SBC6-150-382FIXED IND 15UH 3.8A 30 MOHM TH |
956 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.8 A | 9.1A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
