Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

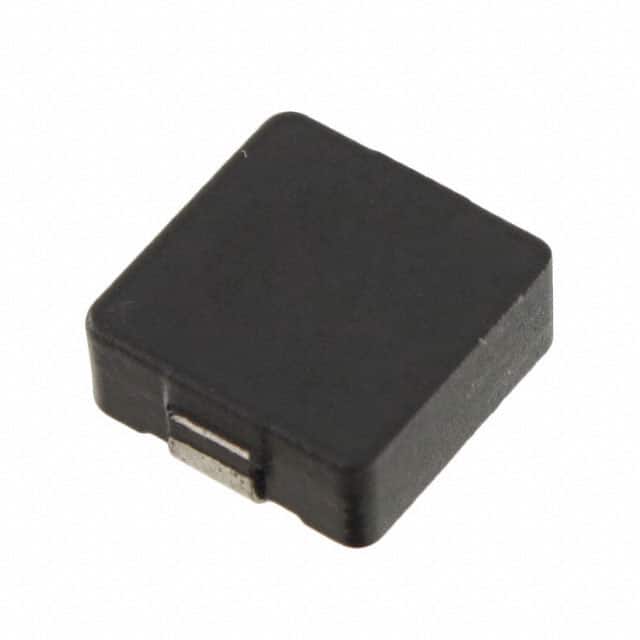

HCM1104-R36-RFIXED IND 360NH 30A 1.2 MOHM SMD |
0 |
|
Datasheet |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 360 nH | ±20% | 30 A | 42A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|

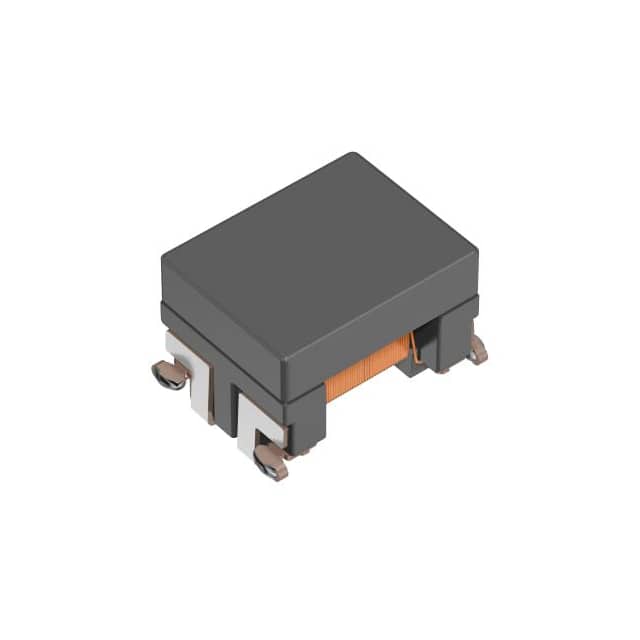

ADL3225VM-150M-TL000INDUCTORS FOR DECOUPLING CIRCUIT |
9,589 |
|
Datasheet |
ADL-VM | Horizontal, 4 PC Pad | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 725 mA | 350mA | Unshielded | 400mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
HCM0703-150-RFIXED IND 14.9UH 2.2A 127MOHM SM |
2,915 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 14.9 µH | ±15% | 2.2 A | 5A | Shielded | 127mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1104-1R5-RFIXED IND 1.5UH 16A 4.2 MOHM SMD |
2,810 |
|
Datasheet |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 16 A | 32A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
B82472N6334M000SMT-INDUCTOR 7X7 400V 330 UH |
1,404 |
|
Datasheet |
B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 430 mA | 450mA | Shielded | 1.95Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
HCM0703-R82-RFIXED IND 820NH 13A 8 MOHM SMD |
1,133 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
B82472N6564M000SMT-INDUCTOR 7X7 400V 560 UH |
985 |
|
Datasheet |
B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 320 mA | 360mA | Shielded | 3.35Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472N6474M000SMT-INDUCTOR 7X7 400V 470 UH |
933 |
|
Datasheet |
B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 370 mA | 390mA | Shielded | 2.6Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472N6824M000SMT-INDUCTOR 7X7 400V 820 UH |
865 |
|
Datasheet |
B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 260 mA | 300mA | Shielded | 5Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472N6154M000SMT-INDUCTOR 7X7 400V 150 UH |
850 |
|
Datasheet |
B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 640 mA | 720mA | Shielded | 860mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472N6105M000SMT-INDUCTOR 7X7 400V 1000 UH |
818 |
|
Datasheet |
B82472N6*M | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 250 mA | 270mA | Shielded | 5.5Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
EXLA1V0707-5R6-RIND MOLDED SHLD 5.6UH 8.5A |
695 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 11.4 A | 12A | Shielded | 15.03mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
0840CDMCCDS-R82MCFIXED IND 820NH 17A 5 MOHM SMD |
622 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 17 A | 16A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
EXLA1V0707-1R8-RIND MOLDED SHLD 1.8UH 15.8A |
532 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.8 µH | ±20% | 21 A | 23A | Shielded | 4.46mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
|
HCM0703-R68-RFIXED IND 680NH 15.5A 5.5MOHM SM |
454 |
|
Datasheet |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
.jpg)
|
IHLP7575GZER8R2M51FIXED IND 8.2UH 20.7A 0.00774OHM |
284 |
|
Datasheet |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 20.7 A | 33A | Shielded | 7.74mOhm Max | - | 8.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
7449150023FIXED IND 23NH 30A 1.2 MOHM SMD |
138 |
|
Datasheet |
WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 23 nH | ±20% | 30 A | - | Unshielded | 1.2mOhm Max | 191 @ 100MHz | 867MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1010 | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
MPXV1D0840L3R3FIXED IND 3.3UH 11.3A 14MOHM SMD |
6,826 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 11.3 A | 15A | Shielded | 14mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
0840CDMCCDS-2R2MCFIXED IND 2.2UH 12.5A 9.6MOHM SM |
2,964 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 12.5 A | 10.7A | Shielded | 9.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
MPXV1D0840L220FIXED IND 22UH 4.2A 98.3MOHM SMD |
1,995 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 4.2 A | 5.5A | Shielded | 98.3mOhm Max | - | 7.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
