Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3631B100MLFIXED IND 10UH 3.3A 35 MOHM SMD |
885 |
|
Datasheet |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3.3 A | - | Shielded | 35mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
784383360033WE-MAIA SMT POWER INDUCTOR 0.33 |
855 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 330 nH | ±30% | 5.5 A | 8.3A | Shielded | 17mOhm Max | - | 140MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
78438336068WE-MAIA SMT POWER INDUCTOR 6.8 U |
603 |
|
Datasheet |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 6.8 µH | ±20% | 1.6 A | 2.85A | Shielded | 193mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
744062151FIXED IND 150UH 430MA 720MOHM SM |
572 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 430 mA | 360mA | Shielded | 720mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
744062007FIXED IND 7.5UH 1.7A 60 MOHM SMD |
476 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.5 µH | ±30% | 1.7 A | 1.6A | Shielded | 60mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
744062120FIXED IND 12UH 1.43A 80 MOHM SMD |
433 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±30% | 1.43 A | 1.25A | Shielded | 80mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
744062221FIXED IND 220UH 360MA 1.1OHM SMD |
396 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 360 mA | 250mA | Shielded | 1.1Ohm Max | - | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|
|
744062180FIXED IND 18UH 1.28A 100MOHM SMD |
375 |
|
Datasheet |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±30% | 1.28 A | 1A | Shielded | 100mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.098" (2.50mm) |
|

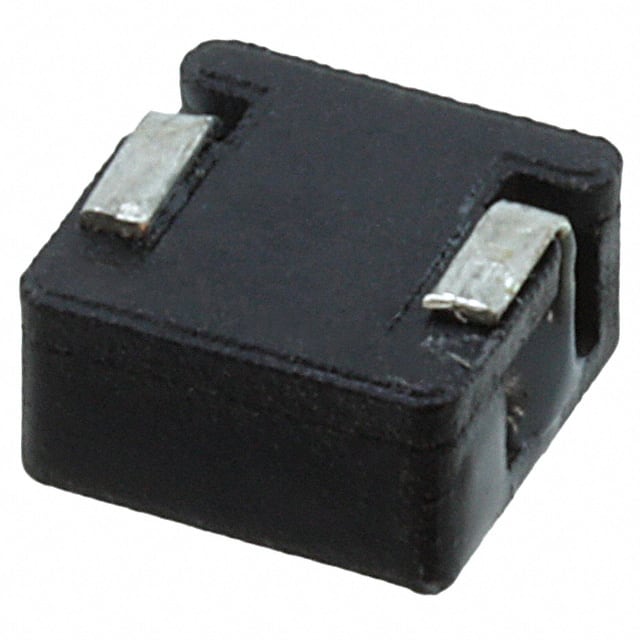

PG0083.472NLFIXED IND 4.7UH 4.5A 38 MOHM SMD |
1,910 |
|
Datasheet |
PG0083 | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±25% | 4.5 A | 8A | Unshielded | 38mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
CDRH60D45BT150NP-101MCFIXED IND 100UH 860MA 340MOHM SM |
11,936 |
|
Datasheet |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 860 mA | 900mA | Shielded | 340mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
HCM1A0503-2R2-RFIXED IND 2.2UH 4.5A 25MOHM SMD |
3,298 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 4.5 A | 6.4A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
3631B101LLFIXED IND 100UH 1.1A 220MOHM SMD |
2,995 |
|
Datasheet |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±10% | 1.1 A | - | Shielded | 220mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
PG2290.181HLTINDUCTOR PWR BEAD 180NH 90A |
2,692 |
|
Datasheet |
PG2290.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 nH | ±10% | 75 A | 90A | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | 0.472" (12.00mm) |
|
|
CDRH60D45BT150NP-2R2NCFIXED IND 2.2UH 4.1A 19.5MOHM SM |
1,903 |
|
Datasheet |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 4.1 A | 5.7A | Shielded | 19.5mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
SBC6-680-222FIXED IND 68UH 2.2A 90 MOHM TH |
1,790 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 2.2 A | 4.1A | Unshielded | 90mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|

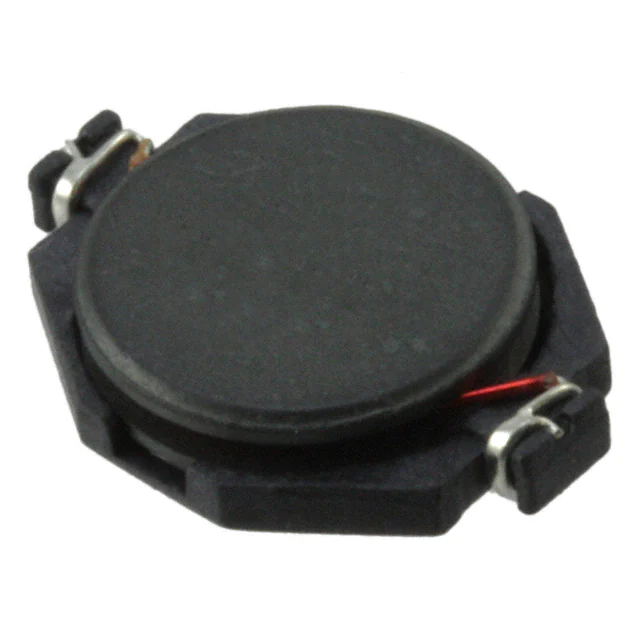

P0762.104NLTFIXED IND 100UH 600MA 840MOHM SM |
1,731 |
|
Datasheet |
P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 600 mA | 700mA | Unshielded | 840mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
3631B330LLFIXED IND 33UH 1.9A 90 MOHM SMD |
1,620 |
|
Datasheet |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±15% | 1.9 A | - | Shielded | 90mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
VCMT104T-150MN5FIXED IND 15UH 5.4A 49 MOHM SMD |
1,570 |
|
Datasheet |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 5.4 A | 5.4A | Unshielded | 49mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SBC6-330-272FIXED IND 33UH 2.7A 60 MOHM TH |
1,421 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.7 A | 6.1A | Unshielded | 60mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.591" (15.00mm) |
|
125CDMCCDS-1R0MCFIXED IND 1UH 28A 1.9 MOHM SMD |
1,164 |
|
Datasheet |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 28 A | 47A | Shielded | 1.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
