0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

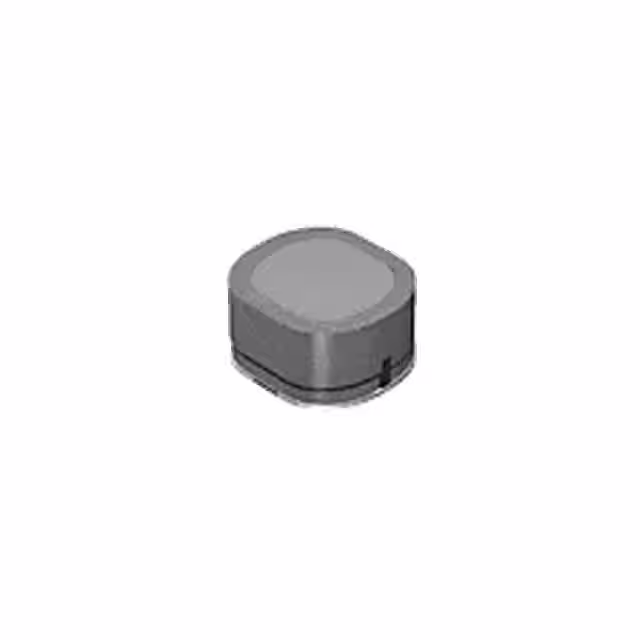

CTGSR74BF-220M22UH SMD SHIELD POWER INDUCTOR |
15 |
|
Datasheet |
CTGSR74BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.12 A | - | Shielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.321" L x 0.289" W (8.15mm x 7.35mm) | 0.193" (4.90mm) |
|
|
CTGSR74BF-180M18UH SMD SHIELD POWER INDUCTOR |
8 |
|
Datasheet |
CTGSR74BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 1.29 A | - | Shielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.321" L x 0.289" W (8.15mm x 7.35mm) | 0.193" (4.90mm) |
|
CT636FYF-1R0MSMD UNSHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
ct636fyf | - | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | - | - | - | 20mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CT636FYF-2R2MSMD UNSHIELDED POWER INDUCTOR |
3 |
|
Datasheet |
ct636fyf | - | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | - | - | - | 30mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
CTSLF1045TF-100M10UH SMD SHLDED POWER INDUCTOR |
13 |
|
- |
CTSLF1045TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.5 A | 3A | Shielded | 36.4mOhm | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
CTSLF1045TF-331M330UH SMD SHLDED POWER INDUCTOR |
10 |
|
- |
CTSLF1045TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 580 mA | 540mA | Shielded | 680mOhm | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
CTSLF1045TF-470M47UH SMD SHLDED POWER INDUCTOR |
10 |
|
- |
CTSLF1045TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.5 A | 1.4A | Shielded | 100mOhm | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
CTSLF1045TF-152M1500UH SMD SHLDED POWER INDUCTOR |
10 |
|
- |
CTSLF1045TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 mH | ±20% | 260 mA | 220mA | Shielded | 3.4Ohm | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|

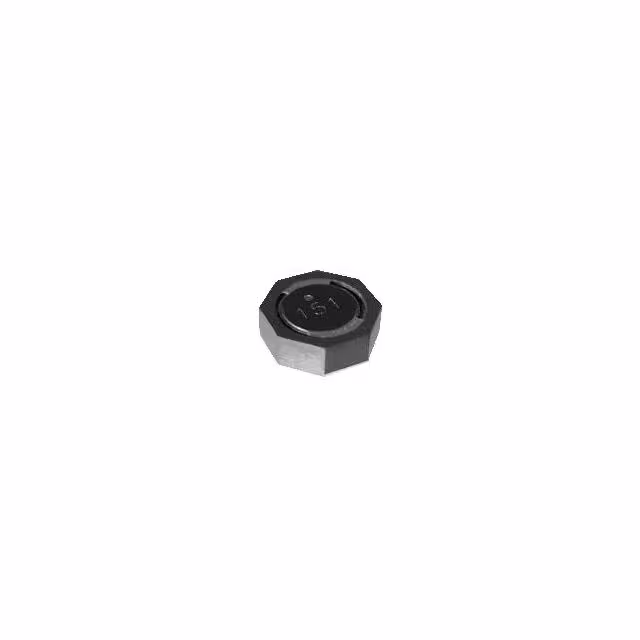

CTSRU1038F-151N150UH SMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTSRU1038F | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±30% | 900 mA | 800mA | Shielded | 476mOhm Max | 20 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
CTSLF1045TF-102M1000UH SMD SHLDED POWR INDUCTOR |
6 |
|
- |
CTSLF1045TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 290 mA | 320mA | Shielded | 2.8Ohm | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
CT915AYF-100MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
ct915ayf | - | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | - | - | 90mOhm | - | - | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

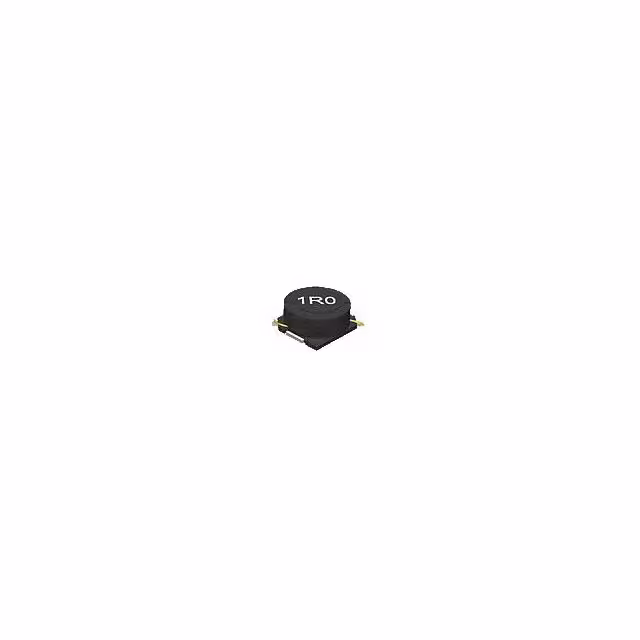

CT636CYF-1R0MSMD SHIELDED POWER INDUCTOR |
23 |
|
Datasheet |
ct636cyf | - | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | - | - | - | 19mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
CTSLF1255TF-681M680UH SMD SHLDED POWER INDUCTOR |
17 |
|
Datasheet |
CTSLF1255TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 730 mA | 430mA | Shielded | 760mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
|
CT636CYF-680MSMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
ct636cyf | - | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | - | - | - | 520mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CT636CYF-270MSMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
ct636cyf | - | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | - | - | - | 210mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CTSLF1255TF-101M100UH SMD SHLDED POWER INDUCTOR |
12 |
|
Datasheet |
CTSLF1255TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 1.1A | Shielded | 117mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
|

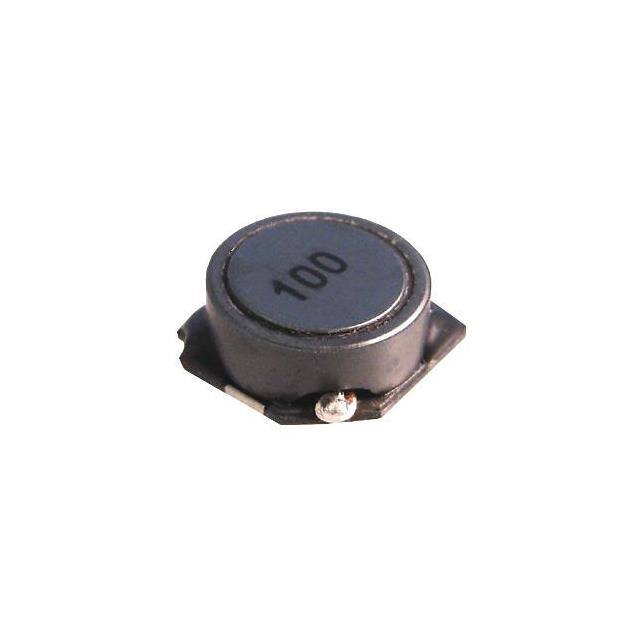

CTSLF1255TF-100M10UH SMD SHLDED POWER INDUCTOR |
11 |
|
Datasheet |
CTSLF1255TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.3 A | 3.4A | Shielded | 21.5mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.228" (5.80mm) |
|
|
CT636CYF-3R3MSMD SHIELDED POWER INDUCTOR |
8 |
|
Datasheet |
ct636cyf | - | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | - | - | - | 35mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
CTSL1112F-681K680UH RAD SHLDED FIX INDUCTOR |
7 |
|
Datasheet |
CTSL1112F | Radial, Vertical Cylinder | Bulk | Active | - | - | 680 µH | ±10% | - | - | Shielded | 1.1Ohm Max | 10 @ 796kHz | 1.3MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
CTSL1112F-330K33UH RAD SHLDED FIX INDUCTOR |
5 |
|
Datasheet |
CTSL1112F | Radial, Vertical Cylinder | Bulk | Active | - | - | 33 µH | ±10% | - | - | Shielded | 62mOhm Max | 30 @ 2.52MHz | 7MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
