0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTRFB0810F-103K100UH RADIAL FXED INDUCTR |
5 |
|
Datasheet |
CTRFB0810F | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 mH | ±10% | 170 mA | 130mA | Unshielded | 21Ohm Max | - | 600kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
CT646FYF-101MSMD UNSHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
ct646fyf | - | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | - | - | - | 550mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CT646FYF-471KSMD UNSHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
ct646fyf | - | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | - | - | - | 2.6Ohm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
CTMMP2207F-1R0MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 9 A | - | Shielded | 17mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.071" (1.80mm) |
|
|
CTMMP104F-1R0MSMD Shielded Power Inductor |
5 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 26 A | - | Shielded | 3.1mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.398" L x 0.457" W (10.10mm x 11.60mm) | 0.157" (4.00mm) |
|
|
CTMMP104F-R68MSMD Shielded Power Inductor |
3 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 30 A | - | Shielded | 1.55mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.398" L x 0.457" W (10.10mm x 11.60mm) | 0.157" (4.00mm) |
|

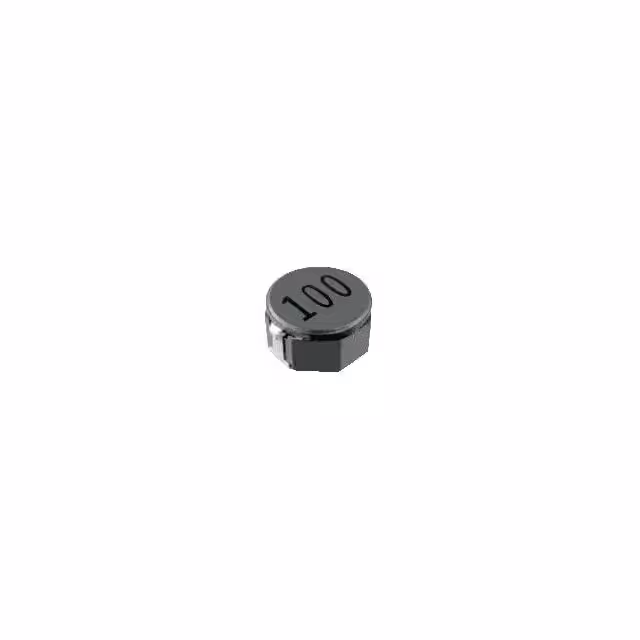

CTCDRH8D43F-4R7N4.7UH SMD SHIELDED POWR INDUCTOR |
15 |
|
Datasheet |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | - | 4.6A | Shielded | 22mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|
|
CTCDRH8D43F-3R9N3.9UH SMD SHIELDED POWR INDUCTOR |
7 |
|
Datasheet |
CTCDRH8D43F | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±30% | - | 5A | Shielded | 19mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|

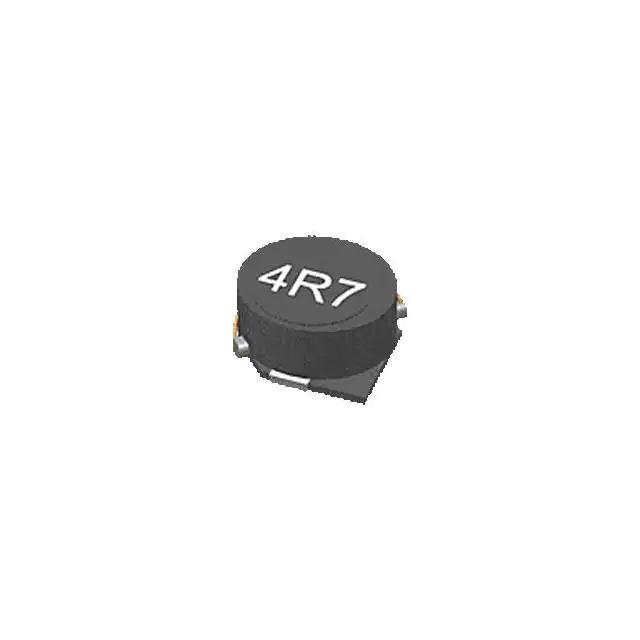

CTSLF0732TF-221M220UH SMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTSLF0732TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 290 mA | - | Shielded | 1.05Ohm | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
CTSLF0732TF-100M10UH SMD SHLDED POWER INDUCTOR |
6 |
|
Datasheet |
CTSLF0732TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.4 A | - | Shielded | 53mOhm | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
CTSLF0732TF-102M1000UH SMD SHLDED POWR INDUCTOR |
5 |
|
Datasheet |
CTSLF0732TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 130 mA | - | Shielded | 4.78Ohm | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|

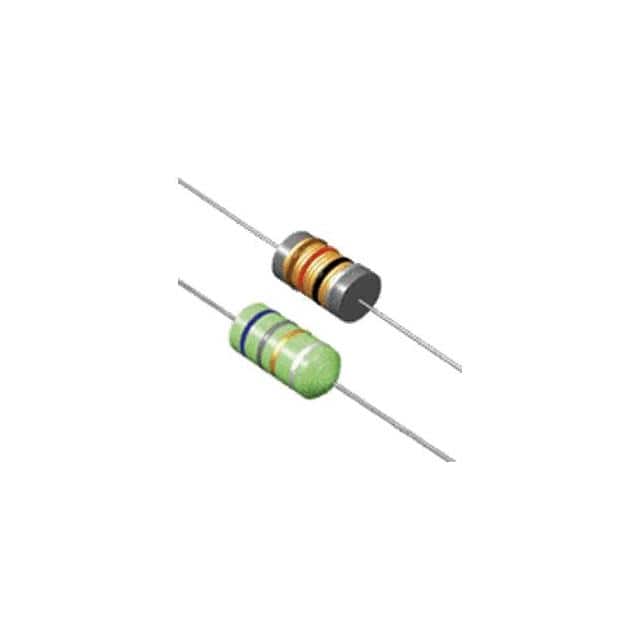

CTH6EF-151K150UH MINI AXL P-LINE INDUCTOR |
2 |
|
Datasheet |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±10% | 410 mA | 250mA | Unshielded | 1.2Ohm Max | - | 3.2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|

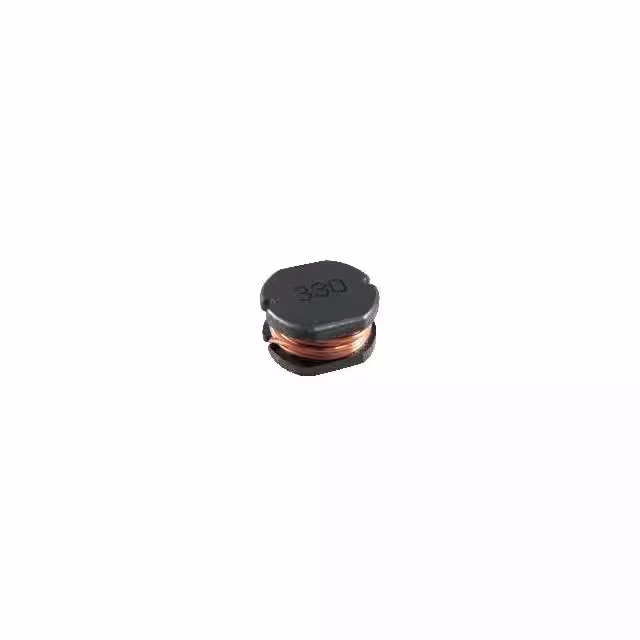

CTGS105F-151K150UH SMD UNSHLD POWER INDUCTOR |
15 |
|
Datasheet |
CTGS105F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±10% | - | 780mA | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CTGS105F-561K560UH SMD UNSHLD POWER INDUCTOR |
10 |
|
Datasheet |
CTGS105F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 µH | ±10% | - | 330mA | Unshielded | 1.9Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CTGS105F-391K390UH SMD UNSHLD POWER INDUCTOR |
5 |
|
Datasheet |
CTGS105F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±10% | - | 480mA | Unshielded | 1.3Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
|
CTGS105F-390M39UH SMD UNSHLD POWER INDUCTOR |
2 |
|
Datasheet |
CTGS105F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | - | 1.4A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.228" (5.80mm) |
|
CTSD25F-150M15UH SMD SHLDED POWER INDUCTOR |
20 |
|
Datasheet |
CTSD25F | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.67 A | 1.08A | Shielded | 119.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.217" W (5.50mm x 5.50mm) | 0.110" (2.80mm) |
|
CT916CYF-2R7MSMD SHIELDED POWER INDUCTOR |
20 |
|
Datasheet |
ct916cyf | - | Tape & Reel (TR) | Active | - | - | 2.7 µH | ±20% | - | - | - | 18mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CT916CYF-4R7MSMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
ct916cyf | - | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | - | - | - | 27mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTSD25F-3R3M3.3UH SMD SHLDED POWER INDUCTOR |
14 |
|
Datasheet |
CTSD25F | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.64 A | 2.21A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.217" W (5.50mm x 5.50mm) | 0.110" (2.80mm) |
