0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTM1F-330K33UH AXIAL MOLDED INDUCTOR |
11 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 33 µH | ±10% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
CTGSR105BF-271M270UH SMD SHIELDED POWR INDUCTOR |
10 |
|
Datasheet |
CTGSR105BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 410 mA | - | Shielded | 870mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.236" (6.00mm) |
|
|
CTM1F-R22K.22UH AXIAL MOLDED INDUCTOR |
10 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±10% | 1.025 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTGSR105BF-101KSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTGSR105BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±10% | 720 mA | - | Shielded | 340mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.236" (6.00mm) |
|
|
CTM1F-1R8K1.8UH AXIAL MOLDED INDUCTOR |
10 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.8 µH | ±10% | 455 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
CTMMP1805F-R68MSMD Shielded Power Inductor |
10 |
|
- |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 6 A | - | Shielded | 36mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.047" (1.20mm) |
|
|
CTMMP1805F-4R7MSMD Shielded Power Inductor |
9 |
|
- |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 2.8 A | - | Shielded | 195mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.047" (1.20mm) |
|
|
CTGSR105BF-330NSMD SHIELDED POWER INDUCTOR |
7 |
|
Datasheet |
CTGSR105BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±30% | 1.16 A | - | Shielded | 110mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.236" (6.00mm) |
|
|
CTM1F-151J150UH AXIAL MOLDED INDUCTOR |
6 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±5% | 61 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-R33K.33UH AXIAL MOLDED INDUCTOR |
5 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 330 nH | ±10% | 815 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-390J39UH AXIAL MOLDED INDUCTOR |
5 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±5% | 125 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-221J220UH AXIAL MOLDED INDUCTOR |
5 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±5% | 52 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTMMP5020F-1R5MSMD Shielded Power Inductor |
4 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1.5 µH | ±20% | 28 A | - | Shielded | 3mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|
|
CTMMP5020F-R47MSMD Shielded Power Inductor |
4 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 46 A | - | Shielded | 1.2mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|
|
CTMMP5020F-1R0MSMD Shielded Power Inductor |
4 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 37 A | - | Shielded | 2.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|
|
CTMMP5020F-6R8MSMD Shielded Power Inductor |
4 |
|
Datasheet |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 14 A | - | Shielded | 22mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|
|
CTMMP5020F-4R7MSMD Shielded Power Inductor |
4 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 16 A | - | Shielded | 11.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|
CTAF02TKSMD AIR CORE INDUCTOR |
11 |
|
Datasheet |
ctaf | - | Tape & Reel (TR) | Active | Wirewound | - | 5 nH | ±10% | - | - | - | 1.8mOhm | - | 6.5GHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAF01TKSMD AIR CORE INDUCTOR |
5 |
|
Datasheet |
ctaf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.5 nH | ±10% | - | - | - | 1.1mOhm | - | 12.5GHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

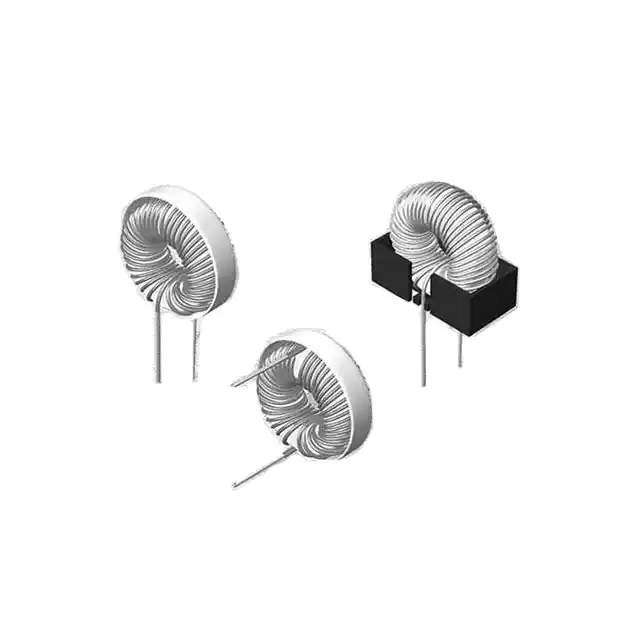

CT67F-101K-THHIGH CURRENT POWER TOROID |
25 |
|
Datasheet |
ct67f | - | Bulk | Active | Toroidal | - | 100 µH | ±10% | - | - | - | - | - | - | - | -20°C ~ 80°C | - | - | - | - | - | - |
