Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTSL1112F-102J1000UH RAD SHLDED FIX INDUCTOR |
2 |
|
Datasheet |
CTSL1112F | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±5% | - | - | Shielded | 1.4Ohm Max | 20 @ 252kHz | 1.1MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|
|
CTSL1112F-103J100UH RADIAL SHLDED FIX INDUCTOR |
1 |
|
Datasheet |
CTSL1112F | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 mH | ±5% | - | - | Shielded | 18Ohm Max | 30 @ 79.6kHz | 380kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial | 0.441" Dia (11.20mm) | 0.492" (12.50mm) |
|

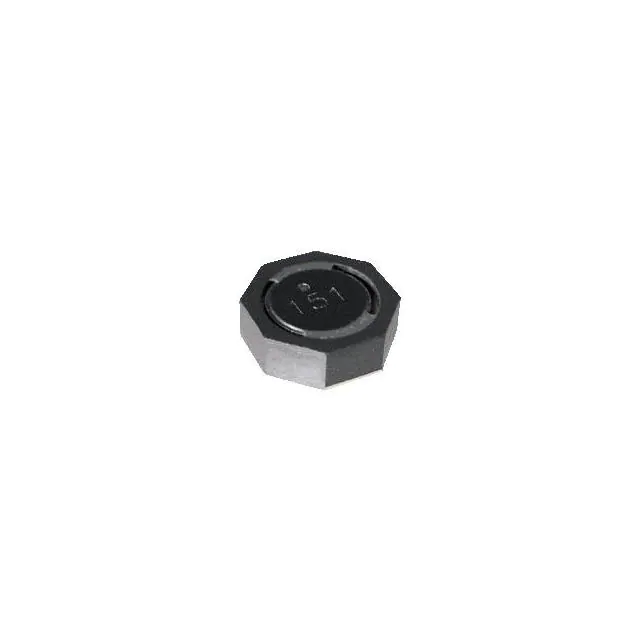

CTSRU1048F-101N100UH SMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTSRU1048F | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.2 A | 1A | Shielded | 220mOhm Max | 26 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.201" (5.10mm) |
|
CTDT3316PF-224220UH SMD SHIELDED POWR INDUCTOR |
17 |
|
Datasheet |
CTDT3316F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 500 mA | - | Shielded | 390mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
|
CTDT3316PF-3323.3UH SMD SHIELDED POWR INDUCTOR |
15 |
|
Datasheet |
CTDT3316F | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 5 A | - | Shielded | 40mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

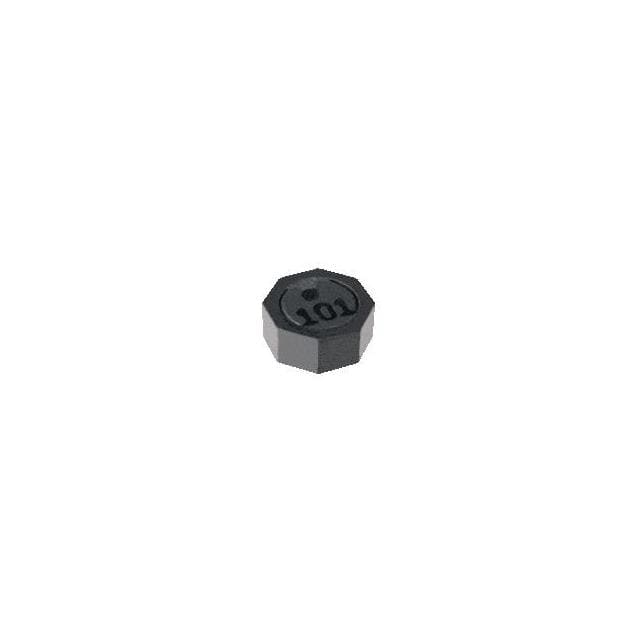

CTSRU5028F-101N100UH SMD SHLDED POWER INDUCTOR |
5 |
|
Datasheet |
CTSRU5028F | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 470 mA | 420mA | Shielded | 800mOhm Max | 15 @ 796kHz | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|

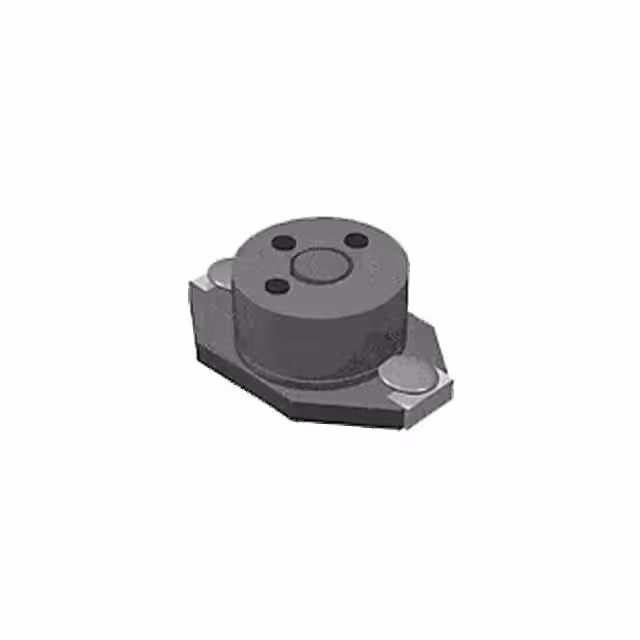

CTDT3316PF-1021.0UH SMD SHIELDED POWR INDUCTOR |
4 |
|
Datasheet |
CTDT3316PF | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5 A | - | Shielded | 25mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

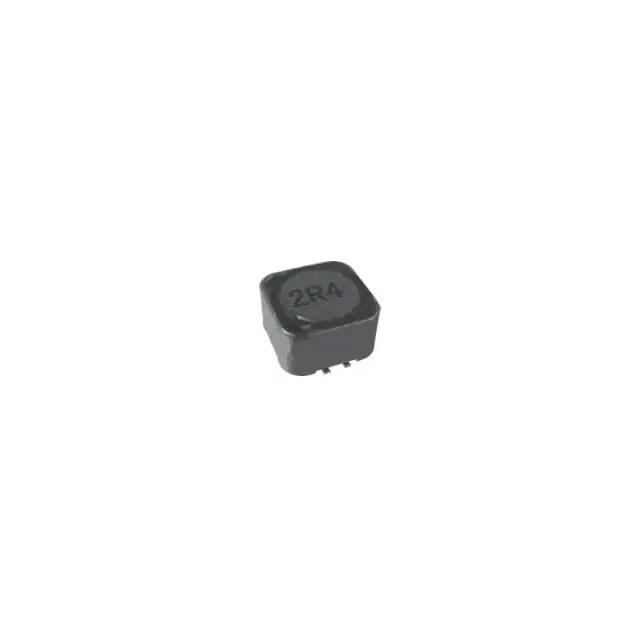

CTCDRH127F-471M470UH SMD SHIELDED POWR INDUCTOR |
23 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 790 mA | - | Shielded | 980mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-4R7N4.7UH SMD SHIELDED POWR INDUCTOR |
15 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | -20%, +40% | 6.8 A | - | Shielded | 15.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-150M15UH SMD SHIELDED POWR INDUCTOR |
15 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4.5 A | - | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-270M27UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 3.4 A | - | Shielded | 45.9mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-102K1000UH SMD SHIELDED PWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±10% | 550 mA | - | Shielded | 1.82Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-4R7MSMD SHIELDED POWER INDUCTOR |
3 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 6.8 A | - | Shielded | 15.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-151M150UH SMD SHIELDED POWR INDUCTOR |
3 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.42 A | - | Shielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-180M18UH SMD SHIELDED POWR INDUCTOR |
2 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 3.9 A | - | Shielded | 39.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
CTCDRH127F-820M82UH SMD SHIELDED POWER INDUCTOR |
2 |
|
Datasheet |
CTCDRH127F | Nonstandard | Tape & Reel (TR) | Active | - | - | 82 µH | ±20% | 1.95 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

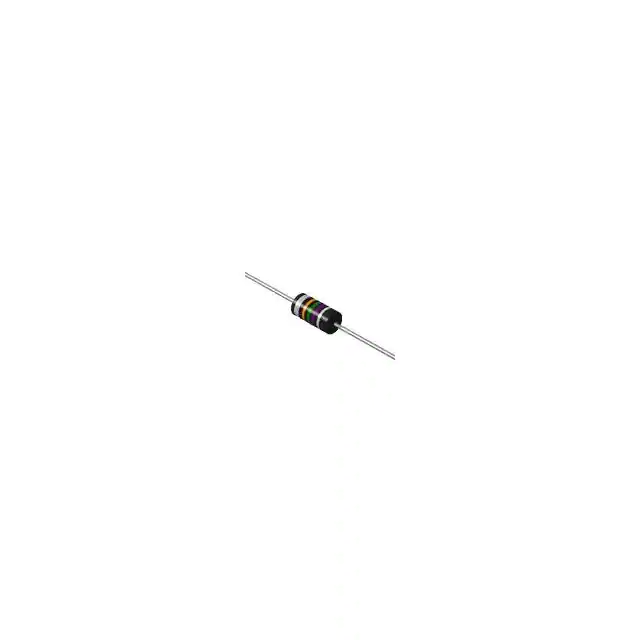

CTM1F-1R5J1.5UH AXIAL MOLDED INDUCTOR |
25 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±5% | 535 mA | - | Unshielded | 220mOhm Max | 28 @ 7.9MHz | 140MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
CTM1F-R82K.82UH AXIAL MOLDED INDUCTOR |
20 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±10% | 415 mA | - | Unshielded | 850mOhm Max | 28 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

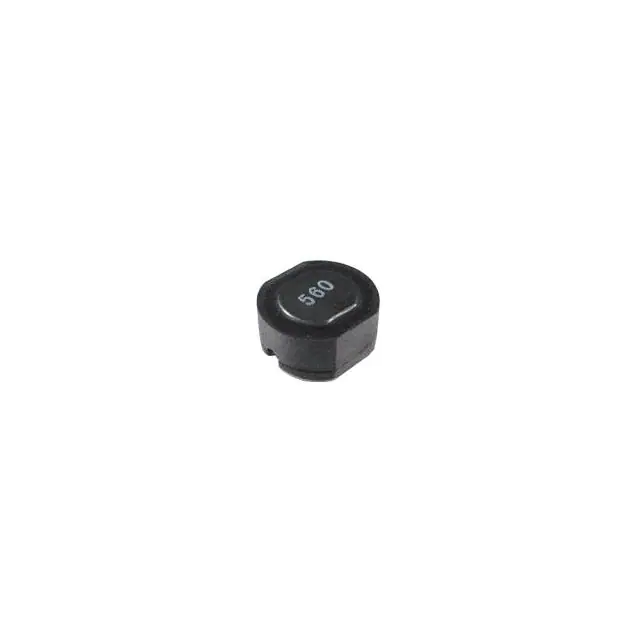

CTGSR105BF-470M47UH SMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
CTGSR105BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1 A | - | Shielded | 140mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.236" (6.00mm) |
|
|
CTM1F-R10K.10UH AXIAL MOLDED INDUCTOR |
15 |
|
Datasheet |
CTM1F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 100 nH | ±10% | 1.35 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
