Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT646CYF-101MSMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
ct646cyf | - | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | - | - | - | 400mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CT646CYF-221MSMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
ct646cyf | - | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | - | - | - | 940mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CT646CYF-390MSMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
ct646cyf | - | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | - | - | - | 180mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|

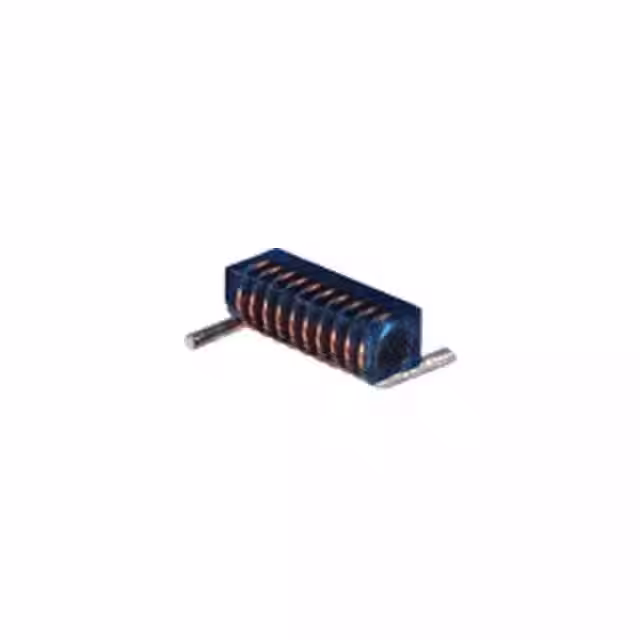

CT187LYF-222JRAD LEADED FIXED SHLDED INDUCTOR |
11 |
|
Datasheet |
ct187lyf | - | Bulk | Active | - | - | 2.2 mH | ±5% | - | - | - | 13Ohm | - | 900kHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT646CYF-6R8MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
ct646cyf | - | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | - | - | - | 47mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CT187LYF-103JRAD LEADED FIXED SHLDED INDUCTOR |
10 |
|
Datasheet |
ct187lyf | - | Bulk | Active | - | - | 10 mH | ±5% | - | - | - | 40Ohm | - | 400kHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT187LYF-681JRAD LEADED FIXED SHLDED INDUCTOR |
10 |
|
Datasheet |
ct187lyf | - | Bulk | Active | - | - | 680 µH | ±5% | - | - | - | 4Ohm | - | 1.6MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTCDRH2D18/HPF-2R2N2.2UH SMD SHIELDED POWR INDUCTOR |
8 |
|
Datasheet |
CTCDRH2D18/HPF | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | - | 1.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
CT646CYF-391MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
ct646cyf | - | Tape & Reel (TR) | Active | - | - | 390 µH | ±20% | - | - | - | 1.52Ohm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|

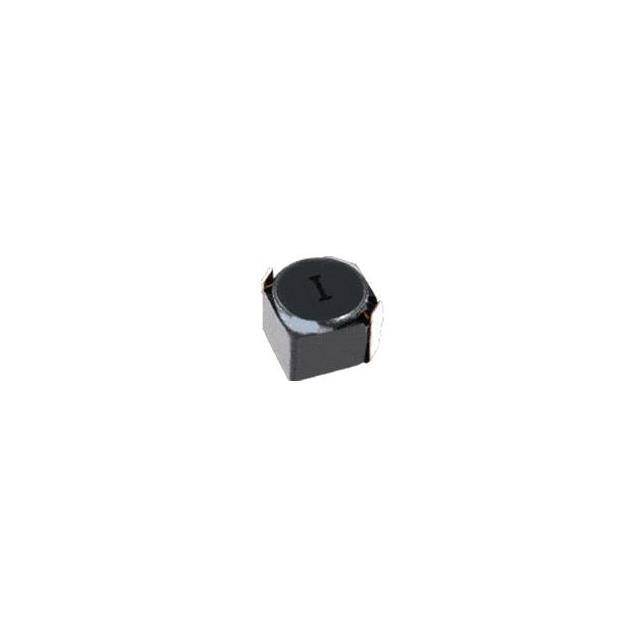

CTCDRH3D28F-4R7N4.7UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH3D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 1.62 A | 1.65A | Shielded | 88.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
|
CT646CYF-151MSMD SHIELDED POWER INDUCTOR |
4 |
|
Datasheet |
ct646cyf | - | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | - | - | - | 730mOhm | - | - | - | -30°C ~ 100°C | - | - | Surface Mount | - | - | - |
|
|
CTCDRH2D18/HPF-6R3N6.3UH SMD SHIELDED POWR INDUCTOR |
4 |
|
Datasheet |
CTCDRH2D18/HPF | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.3 µH | ±30% | - | 1.05A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
CTCDRH3D28F-150M15UH SMD SHIELDED POWER INDUCTOR |
1 |
|
Datasheet |
CTCDRH3D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.02 A | 900mA | Shielded | 213mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
CTSLF0645TF-100M10UH SMD SHLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTSLF0645TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 1.6A | Shielded | 39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.189" (4.80mm) |
|
CTCDRH2D18F-100N10UH SMD SHIELDED POWR INDUCTOR |
14 |
|
Datasheet |
CTCDRH2D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | - | 450mA | Shielded | 201mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
CTSDB0905F-221M220UH SMD SHLDED POWER INDUCTOR |
7 |
|
Datasheet |
CTSDB0905F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | - | 540mA | Shielded | 600mOhm Max | - | - | - | -25°C ~ 75°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.398" W (12.50mm x 10.10mm) | 0.236" (6.00mm) |
|
|
CTCDRH2D18F-6R8N6.8UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH2D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | - | 570mA | Shielded | 108mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
CTM2F-R22M.22UH AXIAL MOLDED INDUCTOR |
5 |
|
Datasheet |
CTM2F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±20% | 2.02 A | - | Unshielded | 50mOhm Max | 50 @ 25MHz | 450MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
CTMMP5024F-100MSMD Shielded Power Inductor |
4 |
|
Datasheet |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 12.5 A | - | Shielded | 20.7mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.236" (6.00mm) |
|
|
CTMMP5024F-220MSMD Shielded Power Inductor |
4 |
|
Datasheet |
- | - | Bulk | Active | - | - | 22 µH | ±20% | 7.5 A | - | Shielded | 39.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.236" (6.00mm) |
