0Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTCDRH125F-1R3N1.3UH SMD SHIELDED POWR INDUCTOR |
10 |
|
Datasheet |
CTCDRH125F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.3 µH | ±30% | - | 8A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|

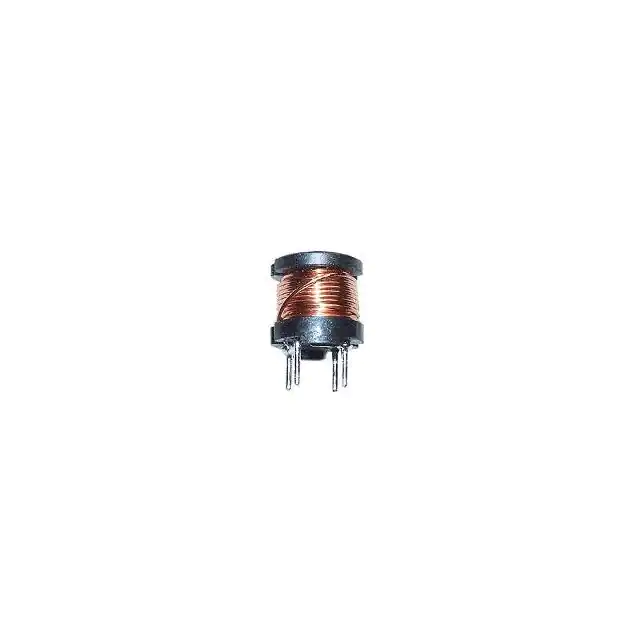

CTCH110F-560KRADIAL LEAD PEAKING COIL |
5 |
|
- |
CTCH110F | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 56 µH | ±10% | - | 2.3A | Unshielded | 92mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
CTCH110F-680KRADIAL LEAD PEAKING COIL |
5 |
|
- |
CTCH110F | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 68 µH | ±10% | - | 2.1A | Unshielded | 120mOhm Max | - | - | - | - | 2.52 MHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
CTCDRH125F-271M270UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH125F | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | - | 800mA | Shielded | 460mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|
|
CTCDRH125F-471M470UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH125F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | - | 600mA | Shielded | 770mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.236" (6.00mm) |
|
|
CTCH110F-101K100UH RADIAL LEAD FIXED INDUCTOR |
2 |
|
- |
CTCH110F | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 100 µH | ±10% | - | 1.7A | Unshielded | 160mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|

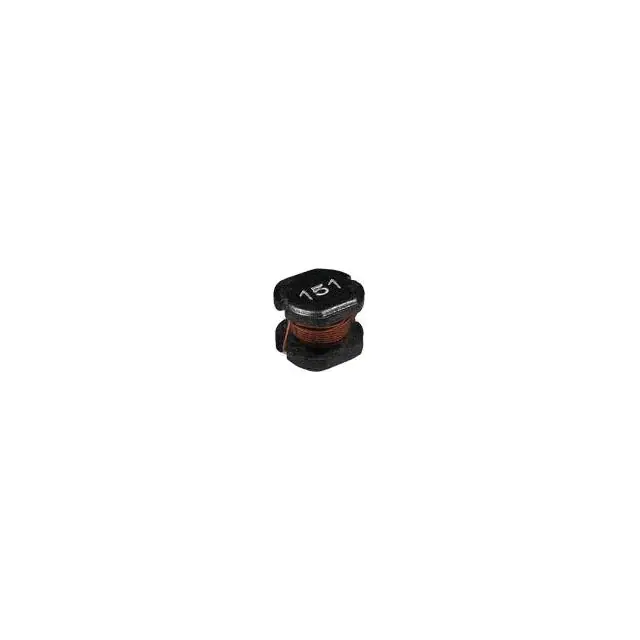

CTGS54F-120M12UH SMD UNSHLD POWER INDUCTOR |
22 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 1.4 A | - | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-221K220UH SMD UNSHLD POWER INDUCTOR |
20 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±10% | 350 mA | - | Unshielded | 1.6Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-470M47UH SMD UNSHLD POWER INDUCTOR |
20 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-560K56UH SMD UNSHLD POWER INDUCTOR |
17 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±10% | 680 mA | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-330K33UH SMD UNSHLD POWER INDUCTOR |
15 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±10% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-390L39UH SMD UNSHLD POWER INDUCTOR |
7 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±15% | 800 mA | - | Unshielded | 320mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-220L22UH SMD UNSHLD POWER INDUCTOR |
5 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±15% | 1.1 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-330L33UH SMD UNSHLD POWER INDUCTOR |
3 |
|
Datasheet |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±15% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
CTRFB0810F-331K330UH RADIAL FIXED INDUCTOR |
10 |
|
Datasheet |
CTRFB0810F | Radial, Vertical Cylinder | Bulk | Active | - | - | 330 µH | ±10% | 1.1 A | 750mA | Unshielded | 650mOhm Max | - | 3.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
CTMMP1806F-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 5 A | - | Shielded | 79mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.197" (5.00mm) |
|
|
CTMMP1806F-1R5MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1.5 µH | ±20% | 6 A | - | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.197" (5.00mm) |
|
|
CTMMP1806F-4R7MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 4 A | - | Shielded | 146mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.197" (5.00mm) |
|
|
CTMMP1806F-1R0MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 7 A | - | Shielded | 42mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.197" (5.00mm) |
|
|
CTMMP1806F-3R3MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 4.5 A | - | Shielded | 132mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.197" (5.00mm) |
