Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

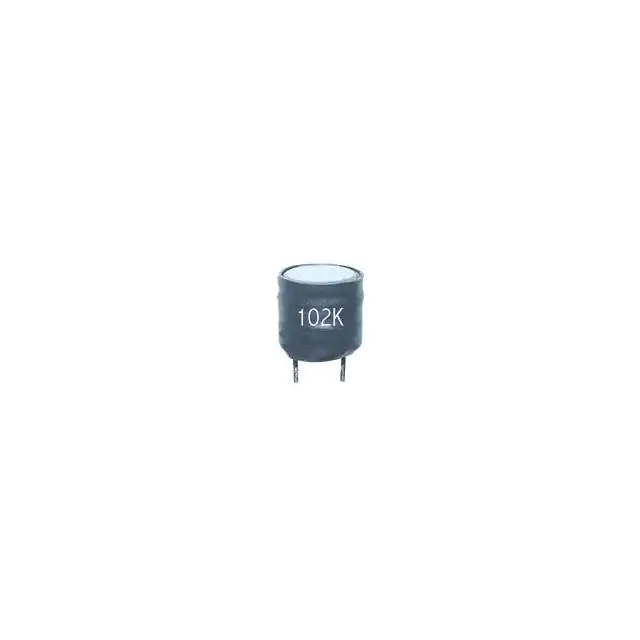

CTRFB1010F-562K5600UH RADIAL FIXED INDUCTOR |
15 |
|
Datasheet |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 5.6 mH | ±10% | 300 mA | 260mA | Unshielded | 10Ohm Max | - | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
CTMMP5015F-5R6MSMD Shielded Power Inductor |
14 |
|
Datasheet |
- | - | Bulk | Active | - | - | 5.6 µH | ±20% | 16 A | - | Shielded | 18mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
|
|
CTRFB1010F-470K47UH RADIAL FIXED INDUCTOR |
10 |
|
Datasheet |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 47 µH | ±10% | 3.5 A | 2.8A | Unshielded | 82mOhm Max | - | 9.5MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
CTRFB1010F-102K1000UH RADIAL FIXED INDUCTR |
10 |
|
Datasheet |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 1 mH | ±10% | 670 mA | 600mA | Unshielded | 1.45Ohm Max | - | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
CTMMP5015F-1R0MSMD Shielded Power Inductor |
3 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 40 A | - | Shielded | 3.3mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.551" L x 0.508" W (14.00mm x 12.90mm) | 0.150" (3.80mm) |
|
CTCDRH124F-3R9MSMD SHIELDED POWER INDUCTOR |
15 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±20% | 6.5 A | - | Shielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-3R9N3.9UH SMD SHIELDED POWR INDUCTOR |
10 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.9 µH | ±30% | 6.5 A | - | Shielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-6R8MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 4.9 A | - | Shielded | 23mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-390M39UH SMD SHIELDED POWR INDUCTOR |
8 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.1 A | - | Shielded | 132mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-270M27UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 2.8 A | - | Shielded | 80mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-8R2MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 4.6 A | - | Shielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-120M12UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 4 A | - | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-180M18UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 3.1 A | - | Shielded | 57mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
CTCDRH124F-331M330UH SMD SHIELDED POWR INDUCTOR |
4 |
|
Datasheet |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 500 mA | - | Shielded | 990mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

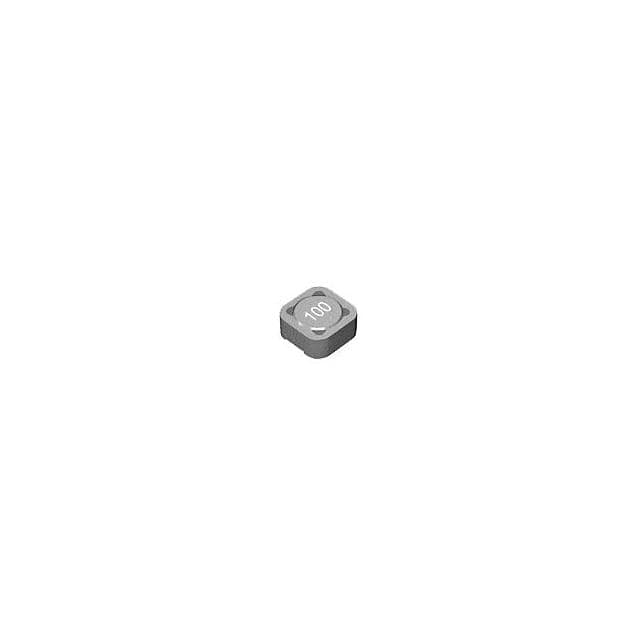

CTCDRH73F-330MSMD SHIELDED POWER INDUCTOR |
25 |
|
Datasheet |
CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 960 mA | - | Shielded | 240mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
CTCDRH73F-101MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 500 mA | - | Shielded | 790mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
CTCDRH73F-150MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.3 A | - | Shielded | 130mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
CTCDRH73F-180MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 1.2 A | - | Shielded | 140mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
CTCDRH73F-271MSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 270 µH | ±20% | 320 mA | - | Shielded | 2.3Ohm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
|
CTCDRH73F-330JSMD SHIELDED POWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±5% | 960 mA | - | Shielded | 240mOhm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
