Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTCDRH129F-561M560UH SMD SHIELDED PWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 560 µH | ±20% | 900 mA | 900mA | Shielded | 700mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
|
CTCDRH129F-821M820UH SMD SHIELDED PWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 820 µH | ±20% | 800 mA | 800mA | Shielded | 1.06Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
|
CTCDRH129F-471M470UH SMD SHIELDED PWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±20% | 1 A | 1A | Shielded | 600mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
|
CTCDRH129F-681M680UH SMD SHIELDED PWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 820 mA | 820mA | Shielded | 840mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
|
CTCDRH129F-101M100UH SMD SHIELDED PWER INDUCTOR |
10 |
|
Datasheet |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 2.2 A | 2.2A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
CTMMP2206F-R68MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 10 A | - | Shielded | 23mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.197" (5.00mm) |
|
|
CTMMP2205AF-3R3MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 2.8 A | - | Shielded | 98.4mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
CTMMP2205AF-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 3.4 A | - | Shielded | 73.6mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
CTMMP2206F-6R8MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 3 A | - | Shielded | 192mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.197" (5.00mm) |
|
|
CTMMP2205AF-1R0MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 4.4 A | - | Shielded | 44.3mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
CTMMP2206F-4R7MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 4 A | - | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.197" (5.00mm) |
|
|
CTMMP2206F-5R6MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 5.6 µH | ±20% | 3.5 A | - | Shielded | 175mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.197" (5.00mm) |
|
|
CTMMP2206F-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 6 A | - | Shielded | 68mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.197" (5.00mm) |
|

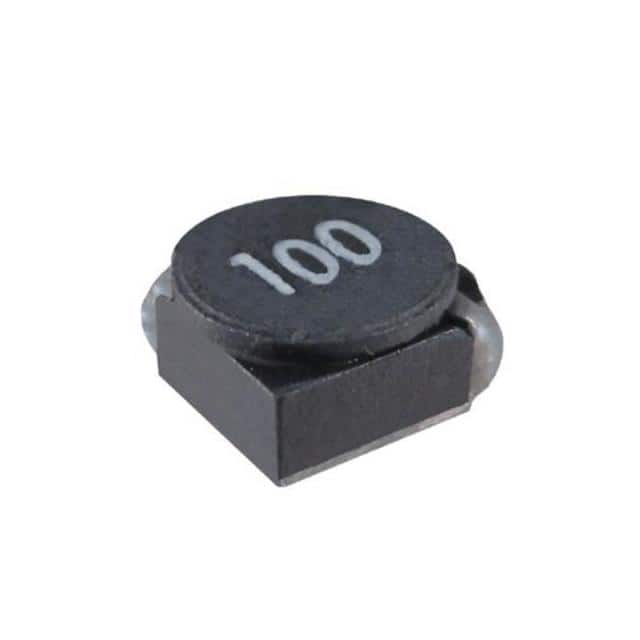

CTCDRH5D28F-3R0N3.0UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH5D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 3 µH | ±30% | - | 2.4A | Shielded | 24mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28F-5R6N5.6UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH5D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±30% | - | 1.85A | Shielded | 40mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28F-6R2N6.2UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH5D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.2 µH | ±30% | - | 1.8A | Shielded | 45mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28F-8R2N8.2UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Datasheet |
CTCDRH5D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | - | 1.6A | Shielded | 53mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28F-680N68UH SMD SHIELDED POWR INDUCTOR |
3 |
|
Datasheet |
CTCDRH5D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±30% | - | 520mA | Shielded | 355mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28F-4R2N4.2UH SMD SHIELDED POWR INDUCTOR |
2 |
|
Datasheet |
CTCDRH5D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.2 µH | ±30% | - | 2.2A | Shielded | 31mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|

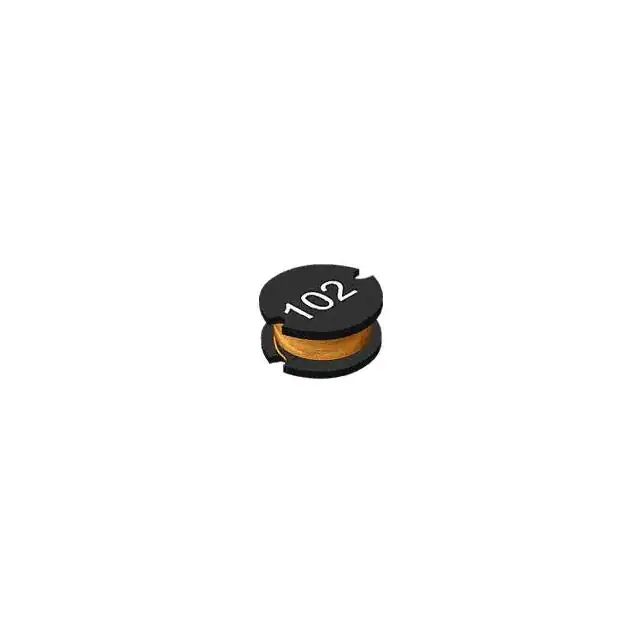

CTGS137F-821K820UH SMD UNSHLD POWER INDUCTOR |
5 |
|
Datasheet |
CTGS137F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 µH | ±10% | 750 mA | 1.1A | Unshielded | 1.3Ohm | 10 @ 796kHz | 1.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.287" (7.30mm) |
