Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IFSC1616AHER221M01FIXED IND 220UH 0.29A 3840 MOHM |
2,994 |
|
Datasheet |
IFSC-1616AH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±20% | 290 mA | 380mA | Shielded | 3.84Ohm Max | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

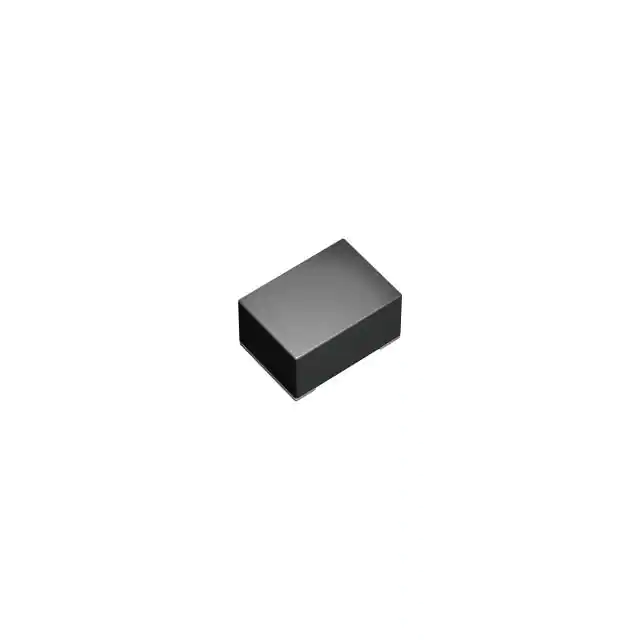

LSEPC2016KKTR47MFIXED IND 470NH 4.7A 26 MOHM SMD |
2,918 |
|
Datasheet |
LSEP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 4.7 A | 5.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSCNB1608KKTR24MAFIXED IND 240NH 2.6A 38 MOHM SMD |
2,840 |
|
Datasheet |
LSCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 2.6 A | 2.8A | Unshielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
IHLL1008ABEZ4R7M1ZFIXED IND 4.7UH 1.8A 190 MOHM SM |
2,688 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 4.7 µH | ±20% | 1.8 A | 1.8A | Shielded | 190mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQH32PN680MN0LFIXED IND 68UH 275MA 2.74OHM SMD |
2,035 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 275 mA | 280mA | Shielded | 2.74Ohm Max | - | 11MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
PM1008-R33K-RCFIXED IND 330NH 500MA 900MOHM SM |
2,000 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±10% | 500 mA | - | Unshielded | 900mOhm | 45 @ 100MHz | 570MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
PM0805-10NM-RCFIXED IND 10NH 600MA 80 MOHM SMD |
2,000 |
|
Datasheet |
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 10 nH | ±20% | 600 mA | - | Unshielded | 80mOhm | 60 @ 500MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
LSXBD6060WHL6R0MFIXED IND 6UH 2.5A 52 MOHM SMD |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6 µH | ±20% | 2.5 A | 2.5A | Shielded | 40mOhm | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD6060WHL1R5NFIXED IND 1.5UH 4.2A 20.8MOHM SM |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.5 µH | ±30% | 4.2 A | 5A | Shielded | 16mOhm | - | 78MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD6060WHL3R0NFIXED IND 3UH 3.4A 29.9 MOHM SMD |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Shielded | 23mOhm | - | 55MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

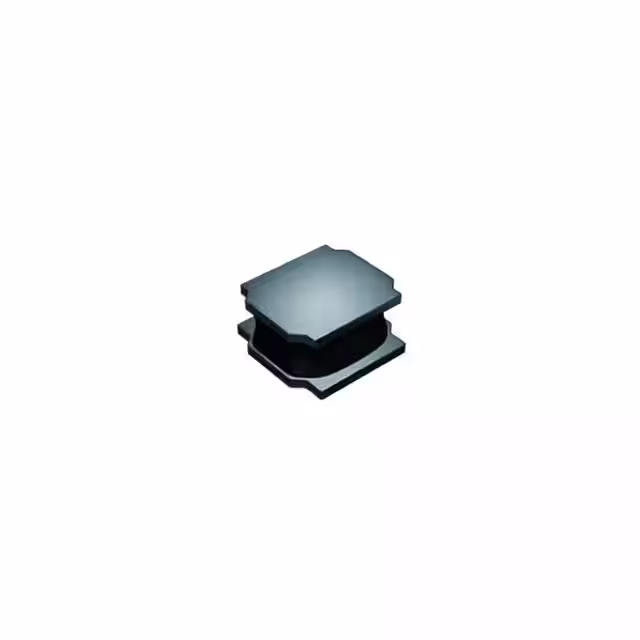

LSXBD3030QKT470MFIXED IND 47UH 300MA 1.608OHM SM |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 300 mA | 320mA | Shielded | 1.34Ohm | - | 17MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXBD3030QKT1R5NFIXED IND 1.5UH 1.82A 48MOHM SMD |
2,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.5 µH | ±30% | 1.82 A | 1.8A | Shielded | 40mOhm | - | 87MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXND6060WHL3R0NMGFIXED IND 3UH 3.4A 29.9 MOHM SMD |
2,000 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3 µH | ±30% | 3.4 A | 3.6A | Shielded | 29.9mOhm Max | - | 55MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD3030QKT220MFIXED IND 22UH 470MA 624MOHM SMD |
1,925 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 470 mA | 470mA | Shielded | 520mOhm | - | 20MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXND6060WHL150MMGFIXED IND 15UH 1.8A 123.5MOHM SM |
1,831 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 1.6A | Shielded | 123.5mOhm Max | - | 17MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD3030QKT3R3MFIXED IND 3.3UH 1.23A 96MOHM SMD |
1,825 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.3 µH | ±20% | 1.23 A | 1.21A | Shielded | 80mOhm | - | 49MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXND6060WHL2R2NMGFIXED IND 2.2UH 3.7A 26 MOHM SMD |
1,792 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 3.7 A | 4.2A | Shielded | 26mOhm Max | - | 68MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
PM1008-R10K-RCFIXED IND 100NH 500MA 180MOHM SM |
1,610 |
|
Datasheet |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±10% | 500 mA | - | Unshielded | 180mOhm | 60 @ 350MHz | 1GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
LSXND6060YEL1R8NMGFIXED IND 1.8UH 3.9A 24.7MOHM SM |
1,500 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.8 µH | ±30% | 3.9 A | 7.2A | Shielded | 24.7mOhm Max | - | 80MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LSXND6060YEL1R3NMGFIXED IND 1.3UH 4.2A 20.8MOHM SM |
1,500 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.3 µH | ±30% | 4.2 A | 8.2A | Shielded | 20.8mOhm Max | - | 95MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
