Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSCNA2012HKT1R0MAFIXED IND 1UH 1.47A 111 MOHM SMD |
4,000 |
|
Datasheet |
LSCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 1.47 A | 2.26A | Unshielded | 111mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|
LSCNE1608FET1R0MAFIXED IND 1UH 800MA 340 MOHM SMD |
4,000 |
|
Datasheet |
LSCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 800 mA | 1.4A | Unshielded | 340mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
LSCNA2012HKTR24MAFIXED IND 240NH 4.32A 24MOHM SMD |
4,000 |
|
Datasheet |
LSCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 240 nH | ±20% | 3.6 A | 4.32A | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|
AISC-Q0402HQ-2N2C-TFIXED IND 2.2NH 2.1A SMD |
4,000 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.2 nH | ±0.2nH | 2.1 A | - | Unshielded | 38mOhm Max | 60 @ 900MHz | 15.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402HQ-3N6C-TFIXED IND 3.6NH 1.7A SMD |
3,965 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.6 nH | ±0.2nH | 1.7 A | - | Unshielded | 45mOhm Max | 65 @ 900MHz | 11.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402HQ-3N3C-TFIXED IND 3.3NH 1.7A SMD |
3,950 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 nH | ±0.2nH | 1.7 A | - | Unshielded | 45mOhm Max | 66 @ 900MHz | 12.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402HQ-2N7C-TFIXED IND 2.7NH 1.5A SMD |
3,938 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.7 nH | ±0.2nH | 1.5 A | - | Unshielded | 75mOhm Max | 62 @ 900MHz | 13GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402HQ-3N9C-TFIXED IND 3.9NH 1.7A SMD |
3,925 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 nH | ±0.2nH | 1.7 A | - | Unshielded | 45mOhm Max | 64 @ 900MHz | 9.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
LQH32PH100MN0LFIXED IND 10UH 700MA 456MOHM SMD |
3,886 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 700 mA | 750mA | Shielded | 456mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
NLCV25T-3R3M-EFRFIXED IND 3.3UH 570MA 528MOHM SM |
3,750 |
|
Datasheet |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 570 mA | - | Unshielded | 528mOhm Max | 10 @ 7.96MHz | 54MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

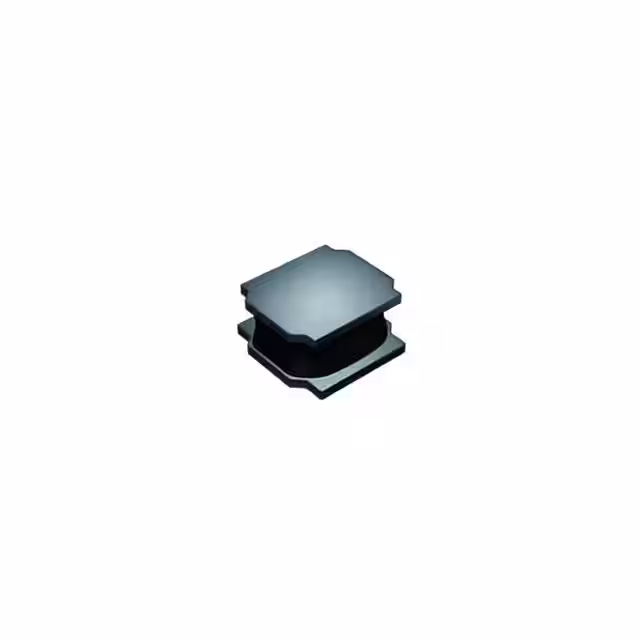

LSXBD4040TKL150MFIXED IND 15UH 650MA 300MOHM SMD |
3,465 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 650 mA | 940mA | Shielded | 250mOhm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH32PH2R2NN0LFIXED IND 2.2UH 1.6A 91.2MOHM SM |
3,407 |
|
Datasheet |
LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.6 A | 1.55A | Shielded | 91.2mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSCNA2012KKTR47MAFIXED IND 470NH 4.5A 39 MOHM SMD |
3,000 |
|
Datasheet |
LSCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 3.1 A | 4.5A | Unshielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
HTEH16080H-R56MSRIND SMD 0.56UH HOT PRESSED CHOKE |
3,000 |
|
Datasheet |
HTEH16080H | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 2.2 A | 2.7A | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
7447610224SMT FERRITE INDUCTOR 0603; 240 N |
3,000 |
|
Datasheet |
WE-RFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 240 nH | ±5% | 490 mA | - | Unshielded | 180mOhm Max | 13 @ 7.9MHz | 1.345GHz | AEC-Q200 | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.065" L x 0.043" W (1.65mm x 1.10mm) | 0.043" (1.10mm) |
|
|
7447610215SMT FERRITE INDUCTOR 0603; 150 N |
3,000 |
|
Datasheet |
WE-RFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±5% | 720 mA | - | Unshielded | 90mOhm Max | 13 @ 7.9MHz | 1.885GHz | AEC-Q200 | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.065" L x 0.043" W (1.65mm x 1.10mm) | 0.043" (1.10mm) |
|
|
7447610236SMT FERRITE INDUCTOR 0603; 360 N |
3,000 |
|
Datasheet |
WE-RFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 360 nH | ±5% | 470 mA | - | Unshielded | 185mOhm Max | 13 @ 7.9MHz | 1.04GHz | AEC-Q200 | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.065" L x 0.043" W (1.65mm x 1.10mm) | 0.043" (1.10mm) |
|
|
7447610415SMT FERRITE INDUCTOR 0603; 15000 |
3,000 |
|
Datasheet |
WE-RFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±5% | 90 mA | - | Unshielded | 3.9Ohm Max | 13 @ 2.52MHz | 30MHz | AEC-Q200 | -40°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0603 | 0.065" L x 0.043" W (1.65mm x 1.10mm) | 0.043" (1.10mm) |
|
|
7447610382SMT FERRITE INDUCTOR 0603; 8200 |
3,000 |
|
Datasheet |
WE-RFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±5% | 150 mA | - | Unshielded | 1.55Ohm Max | 14 @ 7.9MHz | 46MHz | AEC-Q200 | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.065" L x 0.043" W (1.65mm x 1.10mm) | 0.043" (1.10mm) |
|
|
7447610356SMT FERRITE INDUCTOR 0603; 5600 |
3,000 |
|
Datasheet |
WE-RFI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±5% | 195 mA | - | Unshielded | 1.055Ohm | 14 @ 7.9MHz | 62MHz | AEC-Q200 | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.065" L x 0.043" W (1.65mm x 1.10mm) | 0.043" (1.10mm) |
