Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH32DZ101K53LFIXED IND |
1,800 |
|
Datasheet |
LQH3 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 100 mA | - | Unshielded | 4.55Ohm Max | - | 10MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

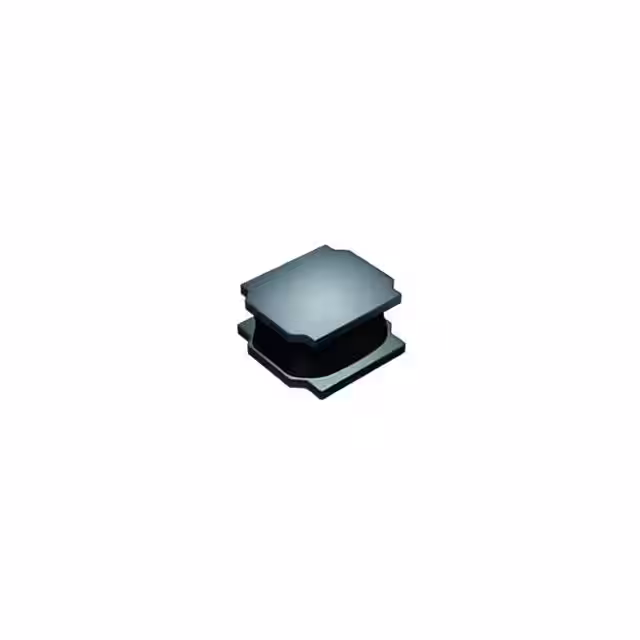

LCXND3030QKT2R2MNGFIXED IND 2.2UH 1.5A 69.6MOHM SM |
1,590 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.48A | Unshielded | 58mOhm | - | 64MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
AISC-060302F-100M-TFIXED IND 10UH 0.1A 5000M |
1,410 |
|
Datasheet |
AISC-060302F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 100 mA | 150mA | Shielded | 5Ohm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.020" (0.50mm) |
|
B78108S1154J009FIXED IND 150UH 280MA 2.8 OHM TH |
9,973 |
|
Datasheet |
BC | Axial | Cut Tape (CT) | Active | Wirewound | - | 150 µH | ±5% | 280 mA | - | Unshielded | 2.8Ohm Max | 70 @ 796kHz | 4.2MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
IHLP0806ABEZR24M5AFIXED IND 0.24UH 5.1A 20 MOHM SM |
6,000 |
|
Datasheet |
IHLP-0806AB-5A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 5.1 A | 5A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
IHLP1008ABEZR15M5AFIXED IND 0.15UH 6.5A 15 MOHM SM |
6,000 |
|
Datasheet |
IHLP-1008ABEZ-5A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 150 nH | ±20% | 6.5 A | 8.5A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLL1008ABEZ1R5M1ZFIXED IND 1.5UH 3.6A 61 MOHM SMD |
6,000 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 1.5 µH | ±20% | 3.6 A | 3A | Shielded | 61mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLP0806ABEZR33M5AFIXED IND 0.33UH 4.7A 23 MOHM SM |
6,000 |
|
Datasheet |
IHLP-0806AB-5A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 4.7 A | 4.8A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
IHLL1008ABEZR33M1ZFIXED IND 0.33UH 6.0A 19 MOHM SM |
6,000 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 330 nH | ±20% | 6 A | 7.3A | Shielded | 19mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLL1008ABEZR68M1ZFIXED IND 0.68UH 5.5A 30 MOHM SM |
5,990 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 680 nH | ±20% | 5.5 A | 5.6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLL1008ABEZR47M1ZFIXED IND 0.47UH 6.1A 21 MOHM SM |
5,975 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 470 nH | ±20% | 6.1 A | 6A | Shielded | 21mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLP0806ABEZR47M5AFIXED IND 0.47UH 4.6A 25 MOHM SM |
5,950 |
|
Datasheet |
IHLP-0806AB-5A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 4.6 A | 4.5A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
IHLP1008ABEZ2R2M5AFIXED IND 2.2UH 2.6A 84 MOHM SMD |
5,847 |
|
Datasheet |
IHLP-1008ABEZ-5A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 2.2 µH | ±20% | 2.6 A | 2.8A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLP1008ABEZ1R0M5AFIXED IND 1.0UH 3.8A 42 MOHM SMD |
5,834 |
|
Datasheet |
IHLP-1008ABEZ-5A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 1 µH | ±20% | 3.8 A | 3.9A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLL1008ABEZ1R0M1ZFIXED IND 1.0UH 4.2A 42 MOHM SMD |
5,790 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 1 µH | ±20% | 4.2 A | 3.7A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLP0806ABEZR22M5AFIXED IND 0.22UH 5.8A 18 MOHM SM |
5,770 |
|
Datasheet |
IHLP-0806AB-5A | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 5.8 A | 5.1A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
IHLL1008ABEZ3R3M1ZFIXED IND 3.3UH 2.1A 135 MOHM SM |
5,700 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 3.3 µH | ±20% | 2.1 A | 2A | Shielded | 135mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLP1008ABEZR47M5AFIXED IND 0.47UH 4.7A 26 MOHM SM |
5,600 |
|
Datasheet |
IHLP-1008ABEZ-5A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 470 nH | ±20% | 4.7 A | 5.3A | Shielded | 26mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IHLL1008ABEZ2R2M1ZFIXED IND 2.2UH 3.0A 82 MOHM SMD |
5,581 |
|
Datasheet |
IHLL-1008AB-1Z | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal Composite | 2.2 µH | ±20% | 3 A | 3A | Shielded | 82mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSCNB1608KKT1R0MAFIXED IND 1UH 1.3A 123 MOHM SMD |
5,190 |
|
Datasheet |
LSCN | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 1.3 A | 2A | Unshielded | 123mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
