Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108S1563J000FIXED IND 56UH 430MA 1.23 OHM TH |
4,989 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 430 mA | - | Unshielded | 1.23Ohm Max | 40 @ 2.52MHz | 7MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1334J009FIXED IND 330UH 190MA 6.4 OHM TH |
4,884 |
|
Datasheet |
BC | Axial | Cut Tape (CT) | Active | Wirewound | - | 330 µH | ±5% | 190 mA | - | Unshielded | 6.4Ohm Max | 70 @ 796kHz | 2.7MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
LSXND4040KKL4R7MDGFIXED IND 4.7UH 1.2A 168MOHM SMD |
4,748 |
|
- |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 950mA | Shielded | 168mOhm Max | - | 47MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD6060WHL470MFIXED IND 47UH 920MA 390MOHM SMD |
4,000 |
|
Datasheet |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 950mA | Shielded | 390mOhm Max | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD3030QKT1R0NFIXED IND 1UH 2.1A 36 MOHM SMD |
4,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 2.1A | Shielded | 30mOhm | - | 100MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXBD6060WHL150MFIXED IND 15UH 1.8A 123.5MOHM SM |
3,999 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 1.6A | Shielded | 95mOhm | - | 17MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD6060WHL680MFIXED IND 68UH 770MA 546MOHM SMD |
3,990 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 68 µH | ±20% | 770 mA | 760mA | Shielded | 420mOhm | - | 5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXBD6060WHL101MFIXED IND 100UH 660MA 780MOHM SM |
3,833 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 100 µH | ±20% | 660 mA | 620mA | Shielded | 600mOhm | - | 3MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
B78108S1395J000FIXED IND 3.9MH 59MA 66 OHM TH |
3,669 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±5% | 59 mA | - | Unshielded | 66Ohm Max | 40 @ 252kHz | 800kHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
LQM21PZ1R0NGRDFIXED IND 1UH 1.3A 66 MOHM SMD |
3,514 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±30% | 1.3 A | - | Shielded | 66mOhm | - | 50MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

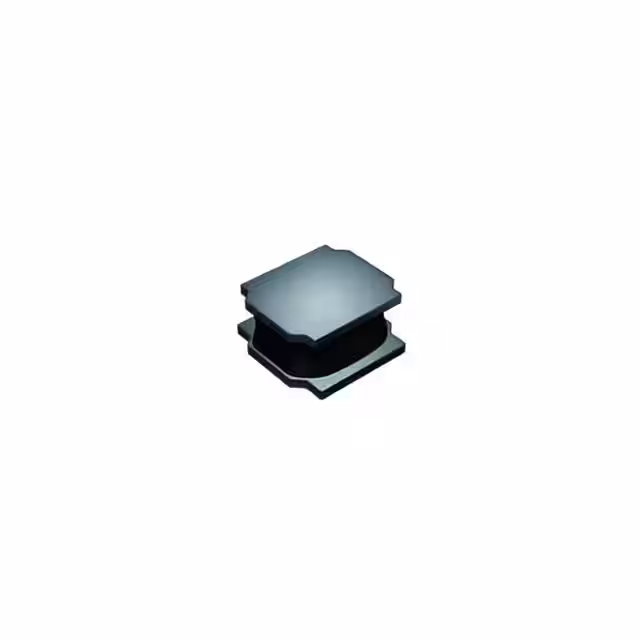

LSXBD3030QKT100MFIXED IND 10UH 710MA 276MOHM SMD |
3,315 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 10 µH | ±20% | 710 mA | 700mA | Shielded | 230mOhm | - | 28MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXND6060YEL150MMGFIXED IND 15UH 1.9A 91 MOHM SMD |
3,000 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.9 A | 2.5A | Shielded | 91mOhm Max | - | 10MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
IFSC1616AHER1R0N01FIXED IND 1UH 3.7A 32 MOHM SMD |
3,000 |
|
Datasheet |
IFSC-1616AH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 3.7 A | 4.8A | Shielded | 32mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
IFSC1616AHER101M01FIXED IND 100UH 0.47A 1560 MOHM |
3,000 |
|
Datasheet |
IFSC-1616AH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 470 mA | 570mA | Shielded | 1.56Ohm Max | - | 5.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
IFSC1616AHER4R7M01FIXED IND 4.7UH 2.1A 84 MOHM SMD |
3,000 |
|
Datasheet |
IFSC-1616AH | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 2.1 A | 2.2A | Shielded | 84mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
IHLL0806AZEZR47M1ZFIXED IND 0.47UH 4.6A 32MOHM SMD |
3,000 |
|
Datasheet |
IHLL-0806AZ-1Z | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±20% | 4.6 A | 4A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IHLL0806AZEZR68M1ZFIXED IND 0.68UH 4.2A 43MOHM SMD |
3,000 |
|
Datasheet |
IHLL-0806AZ-1Z | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 4.2 A | 3.5A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IHLL0806AZEZ1R0M1ZFIXED IND 1UH 3.4A 60MOHM SMD |
3,000 |
|
Datasheet |
IHLL-0806AZ-1Z | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 3.4 A | 3.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IHLL0806AZEZR24M1ZFIXED IND 0.24UH 6.3A 20MOHM SMD |
3,000 |
|
Datasheet |
IHLL-0806AZ-1Z | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 240 nH | ±20% | 6.3 A | 6.5A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
IHLL0806AZEZR33M1ZFIXED IND 0.33UH 4.7A 26MOHM SMD |
3,000 |
|
Datasheet |
IHLL-0806AZ-1Z | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 4.7 A | 4.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
