Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOTA-B201210SR24MTIND 0.24UH 5A 15MOHM |
2,925 |
|
Datasheet |
AOTA-B201210S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 5 A | 6.8A | Shielded | 15mOhm Max | - | 136MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
IFSC2020DEER470M01FIXED IND 47UH 1.1A 220 MOHM SMD |
2,911 |
|
Datasheet |
IFSC-2020DE-01 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.3A | Shielded | 220mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
PM0603-68NJ-RCFIXED IND 68NH 600MA 340MOHM SMD |
2,900 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 68 nH | ±5% | 600 mA | - | Unshielded | 340mOhm | 35 @ 250MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
AOTA-B201210SR11MTIND 0.11UH 6.4A 10MOHM |
2,839 |
|
Datasheet |
AOTA-B201210S | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 110 nH | ±20% | 6.4 A | 13A | Shielded | 10mOhm Max | - | 264MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|

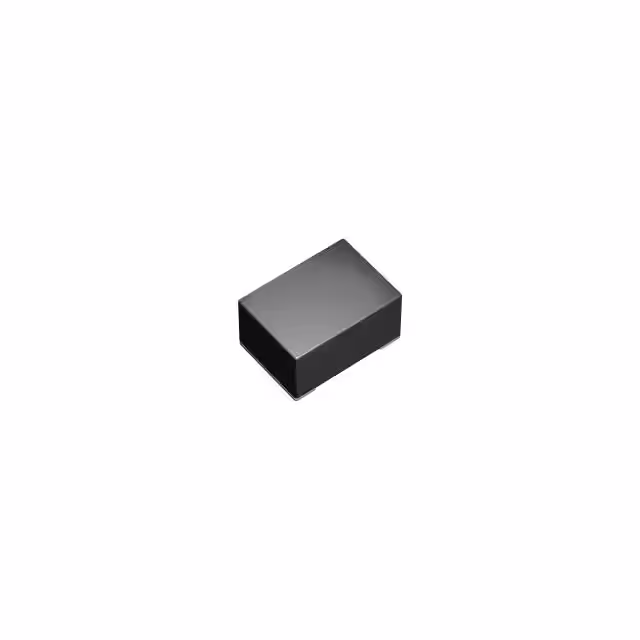

LSEPC2016KKT2R2MFIXED IND 2.2UH 2.3A 100MOHM SMD |
2,790 |
|
Datasheet |
LSEP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.3 A | 2.3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
PM0603-22NJ-RCFIXED IND 22NH 700MA 190MOHM SMD |
2,750 |
|
Datasheet |
PM0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 22 nH | ±5% | 700 mA | - | Unshielded | 190mOhm | 35 @ 250MHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
AISC-Q0603HQ-56NG-TFIXED IND 56NH 610MA SMD |
2,660 |
|
Datasheet |
AISC-Q0603HQ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±2% | 610 mA | - | Unshielded | 300mOhm Max | 50 @ 200MHz | 2.2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q0603HQ-R12G-TFIXED IND 120NH 420MA SMD |
2,400 |
|
Datasheet |
AISC-Q0603HQ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 120 nH | ±2% | 420 mA | - | Unshielded | 720mOhm Max | 47 @ 150MHz | 1.55GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
DFE201610E-R33M=P2FIXED IND 330NH 4A 26 MOHM SMD |
2,390 |
|
Datasheet |
DFE201610E | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 4 A | 5.5A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

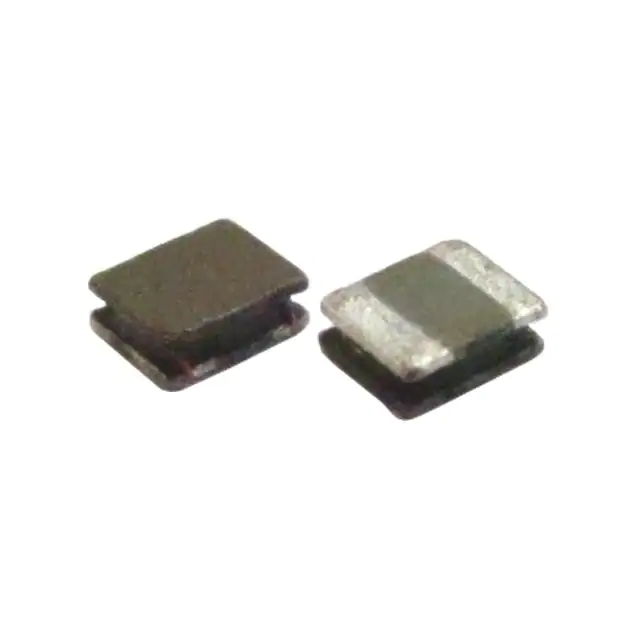

BWMR002520101R5M00INDUCTOR POWER |
2,000 |
|
Datasheet |
BWMR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.95 A | 2.8A | Shielded | 93mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
BWMR002520102R2M00INDUCTOR POWER |
2,000 |
|
Datasheet |
BWMR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2.3A | Shielded | 121mOhm Max | - | 31MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LCXND3030QKT4R7MNGFIXED IND 4.7UH 1.04A 144MOHM SM |
2,000 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.04 A | 1.02A | Unshielded | 120mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LSXND6060WHL0R9NMGFIXED IND 900NH 4.6A 16.9MOHM SM |
2,000 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 900 nH | ±30% | 4.6 A | 6.7A | Shielded | 16.9mOhm Max | - | 90MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LSXND6060WHL1R5NMGFIXED IND 1.5UH 4.2A 20.8MOHM SM |
2,000 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 4.2 A | 5.1A | Shielded | 20.8mOhm Max | - | 78MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

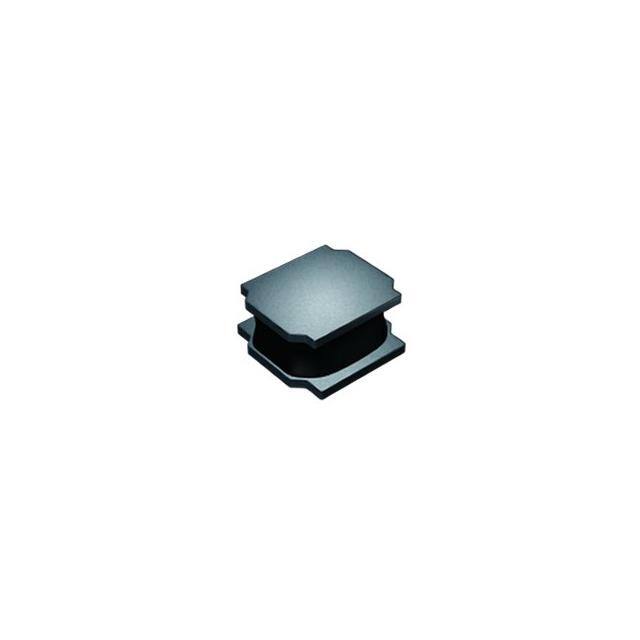

LCXND3030QKT3R3MNGFIXED IND 3.3UH 1.23A 93.6 MOHM |
1,990 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.23 A | 1.21A | Unshielded | 78mOhm | - | 49MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LCXND3030QKT6R8MNGFIXED IND 6.8UH 880MA 192MOHM SM |
1,985 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 880 mA | 870mA | Unshielded | 160mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
-DFE2012.jpg)
|
DFE201210U-R33M=P2FIXED IND 330NH 3.4A 31 MOHM SMD |
1,910 |
|
Datasheet |
DFE201210U | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 3.4 A | 5.2A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|

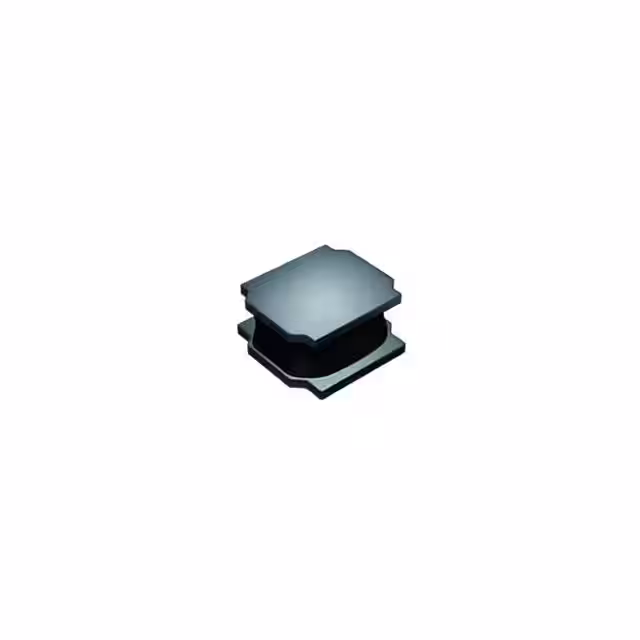

LCXND3030QKT1R0NNGFIXED IND 1UH 2.1A 36 MOHM SMD |
1,895 |
|
Datasheet |
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 2.1 A | 2.1A | Unshielded | 30mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
BWMR002520124R7M00INDUCTOR POWER |
1,890 |
|
Datasheet |
BWMR | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.3 A | 1.7A | Shielded | 240mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LSXND6060WHL470MMGFIXED IND 47UH 920MA 390MOHM SMD |
1,820 |
|
- |
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 1A | Shielded | 390mOhm Max | - | 8MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
