Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXND4040KKL6R8MDGFIXED IND 6.8UH 1A 240 MOHM SMD |
5,000 |
|
- |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 800mA | Shielded | 240mOhm Max | - | 38MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
B78108S1153J000FIXED IND 15UH 610MA 600 MOHM TH |
4,993 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 610 mA | - | Unshielded | 600mOhm Max | 60 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1223J000FIXED IND 22UH 560MA 740 MOHM TH |
4,975 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 560 mA | - | Unshielded | 740mOhm Max | 55 @ 2.52MHz | 13MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
IFSC2020DEER6R8M01FIXED IND 6.8UH 2.8A 38 MOHM SMD |
4,960 |
|
Datasheet |
IFSC-2020DE-01 | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 2.8 A | 3.8A | Shielded | 38mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
B78108S1392K000FIXED IND 3.9UH 850MA 310MOHM TH |
4,937 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 850 mA | - | Unshielded | 310mOhm Max | 60 @ 7.96MHz | 105MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

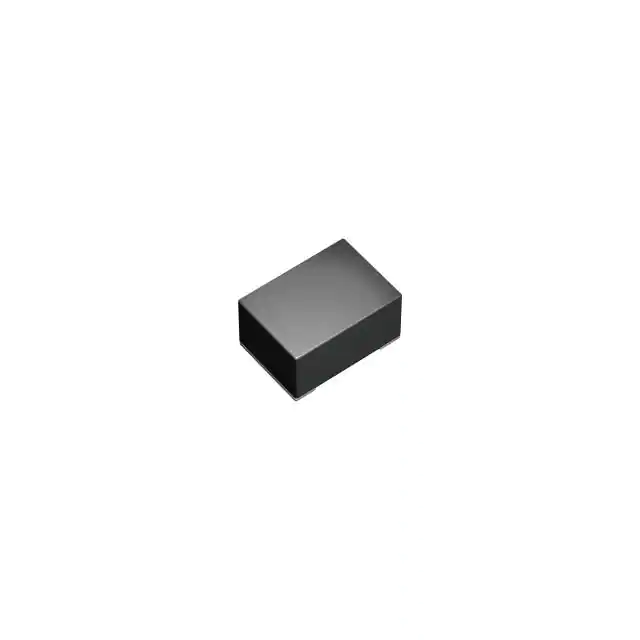

LSEPC2016KKT1R0MFIXED IND 1UH 3.5A 48 MOHM SMD |
4,765 |
|
Datasheet |
LSEP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 3.5 A | 4A | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
B78108S1273K009FIXED IND 27UH 530MA 830 MOHM TH |
4,677 |
|
Datasheet |
BC | Axial | Cut Tape (CT) | Active | Wirewound | - | 27 µH | ±10% | 530 mA | - | Unshielded | 830mOhm Max | 55 @ 2.52MHz | 10MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1222K009FIXED IND 2.2UH 1A 250 MOHM TH |
4,626 |
|
Datasheet |
BC | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 1 A | - | Unshielded | 250mOhm Max | 55 @ 7.96MHz | 140MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1275J000FIXED IND 2.7MH 75MA 40 OHM TH |
4,548 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 mH | ±5% | 75 mA | - | Unshielded | 40Ohm Max | 40 @ 252kHz | 1MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
AISC-Q0402HQ-18NG-TFIXED IND 18NH 900MA SMD |
4,000 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 18 nH | ±2% | 900 mA | - | Unshielded | 120mOhm Max | 58 @ 900MHz | 3.55GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0603HQ-3N6G-TFIXED IND 3.6NH 1.9A SMD |
4,000 |
|
Datasheet |
AISC-Q0603HQ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.6 nH | ±2% | 1.9 A | - | Unshielded | 31mOhm Max | 40 @ 250MHz | 9.7GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q0603HQ-27NG-TFIXED IND 27NH 780MA SMD |
4,000 |
|
Datasheet |
AISC-Q0603HQ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±2% | 780 mA | - | Unshielded | 150mOhm Max | 44 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q0402HQ-6N2G-TFIXED IND 6.2NH 1.6A SMD |
4,000 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6.2 nH | ±2% | 1.6 A | - | Unshielded | 55mOhm Max | 73 @ 900MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402HQ-5N6G-TFIXED IND 5.6NH 1.6A SMD |
4,000 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.6 nH | ±2% | 1.6 A | - | Unshielded | 50mOhm Max | 73 @ 900MHz | 6.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
|
AISC-Q0402HQ-6N8G-TFIXED IND 6.8NH 1.5A SMD |
4,000 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 6.8 nH | ±2% | 1.5 A | - | Unshielded | 65mOhm Max | 68 @ 900MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
|
CW201212-R82JFIXED IND 820NH 180MA 2.3OHM SMD |
3,995 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±5% | 180 mA | - | Unshielded | 2.3Ohm | 23 @ 50MHz | 230MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW201212-6N8JFIXED IND 6.8NH 600MA 60MOHM SMD |
3,990 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 600 mA | - | Unshielded | 60mOhm | 60 @ 1GHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
LSCND2012HKTR24MFINDUCTOR MULTILAYER 0.24UH 0805 |
3,985 |
|
Datasheet |
LSCN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±20% | 5.4 A | 7A | Unshielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
CW201212-R12JFIXED IND 120NH 400MA 480MOHM SM |
3,980 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 400 mA | - | Unshielded | 480mOhm | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
AISC-Q0402HQ-15NG-TFIXED IND 15NH 1.1A SMD |
3,975 |
|
Datasheet |
AISC-Q0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 15 nH | ±2% | 1.1 A | - | Unshielded | 110mOhm Max | 62 @ 900MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.61mm) |
