Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLCV32T-R15M-EFRFIXED IND 150NH 2.6A 28.8MOHM SM |
2,371 |
|
Datasheet |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 2.6 A | - | Unshielded | 28.8mOhm Max | 10 @ 25.2MHz | 500MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
74479081WE-MI SMT MULTILAYER INDUCTOR SI |
2,371 |
|
Datasheet |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 15 mA | - | Unshielded | 1.1Ohm Max | 50 @ 2MHz | 26MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
LSXND4040TKL101MDGFIXED IND 100UH 280MA 1.74OHM SM |
2,243 |
|
Datasheet |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 280 mA | 420mA | Shielded | 1.74Ohm Max | - | 6.5MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LQW2BAS56NG00LFIXED IND 56NH 500MA 340MOHM SMD |
2,165 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±2% | 500 mA | - | Unshielded | 340mOhm Max | 60 @ 500MHz | 1.6GHz | - | -40°C ~ 85°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LSAPB2520KKTR47MFIXED IND 470NH 4A 29 MOHM SMD |
2,000 |
|
Datasheet |
LSAP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 4 A | 5.7A | Unshielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LSQPB322517T1R5MFIXED IND 1.5UH 1.75A 54MOHM SMD |
2,000 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±20% | 1.75 A | 2.2A | Unshielded | 54mOhm Max | - | 170MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSQPB322517TR51MFIXED IND 510NH 2.55A 37.7 MOHM |
1,994 |
|
- |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 510 nH | ±20% | 2.55 A | 3.6A | Unshielded | 37.7mOhm Max | - | 270MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSQPB322517TR36MFIXED IND 360NH 2.75A 32.5 MOHM |
1,980 |
|
- |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 360 nH | ±20% | 2.75 A | 4.3A | Unshielded | 32.5mOhm Max | - | 350MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
LQW2BASR24G00LFIXED IND 240NH 350MA 1 OHM SMD |
1,790 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 240 nH | ±2% | 350 mA | - | Unshielded | 1Ohm Max | 44 @ 250MHz | 770MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LSAPB2520KKTR33MFIXED IND 330NH 4.3A 26 MOHM SMD |
1,650 |
|
Datasheet |
LSAP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 4.3 A | 6.2A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LSQNA201209T100MFIXED IND 10UH 370MA 1.3 OHM SMD |
1,600 |
|
Datasheet |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 205 mA | 205mA | Unshielded | 1.3Ohm Max | - | 32MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

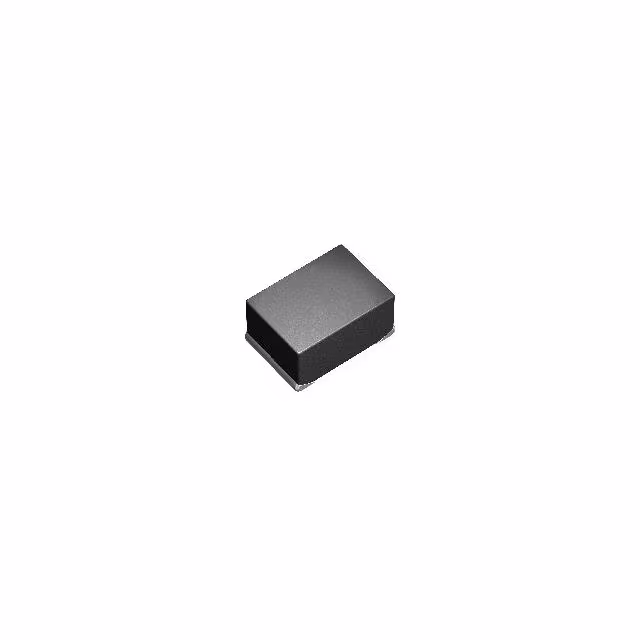

LSAPB2520MKT2R2MFIXED IND 2.2UH 2.2A 90 MOHM SMD |
1,437 |
|
Datasheet |
LSAP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 2.2 A | 2.8A | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQW18AN4N1B80DFIXED IND 4.1NH 2.2A 0.028OHM SM |
1,060 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.1 nH | ±0.1nH | 2.2 A | - | Unshielded | 28mOhm Max | 30 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
BKPB002012C522NKA2INDUCTOR POWER |
22,097 |
|
Datasheet |
BKPB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 nH | ±10% | 2 A | 3A | Shielded | 44mOhm | - | - | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
|
AISC-040202F-2R2M-TFIXED IND 2.2UH 0.19A 2500M |
19,570 |
|
Datasheet |
AISC-040202F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 300 mA | 190mA | Shielded | 2.5Ohm Max | - | 150MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.020" (0.50mm) |
|
|
LQP03HQ0N5W02DFIXED IND 0.5NH 1100MA 0201 0.05 |
12,985 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.5 nH | ±0.05nH | 1.1 A | - | Unshielded | 40mOhm Max | 20 @ 500MHz | 20GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
.jpg)
|
LQG15WZR10G02DFIXED IND 100NH 150MA 2.5OHM SMD |
6,985 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±2% | 150 mA | - | Unshielded | 2.5Ohm Max | 23 @ 250MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LSXND4040MKL2R2MDGFIXED IND 2.2UH 1.9A 72 MOHM SMD |
4,955 |
|
- |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±20% | 1.9 A | 1.65A | Shielded | 72mOhm Max | - | 70MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSXND4040MKL3R3MDGFIXED IND 3.3UH 1.7A 84 MOHM SMD |
4,500 |
|
- |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 1.4A | Shielded | 84mOhm Max | - | 60MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSXND4040MKL100MDGFIXED IND 10UH 1.1A 204 MOHM SMD |
4,470 |
|
Datasheet |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 800mA | Shielded | 204mOhm Max | - | 30MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
