Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BKPE002012102R2MA2INDUCTOR POWER |
18,000 |
|
Datasheet |
BKPE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.6 A | 500mA | Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

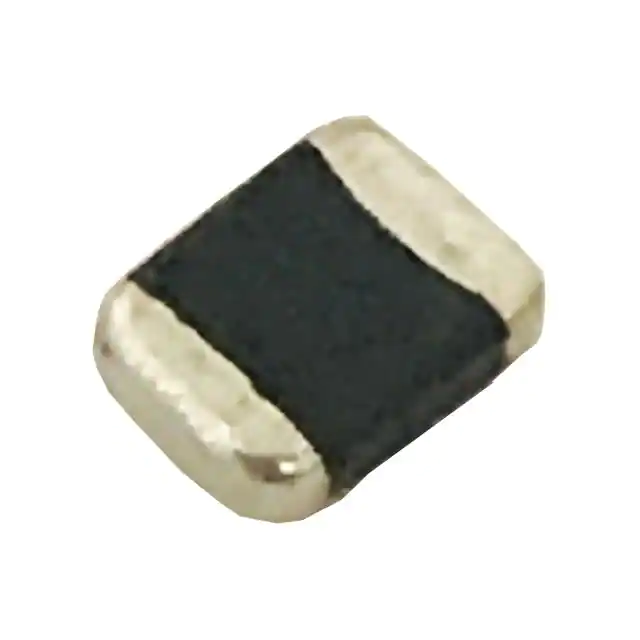

BDHE00252010R47MQ1INDUCTOR POWER |
14,970 |
|
Datasheet |
BDHE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.9 A | 5A | Unshielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW18CNR21J0HDINDUCTOR FIXED 210NH 0603 |
10,725 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 210 nH | ±5% | 800 mA | - | Unshielded | 150mOhm Max | - | 720MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQG15WH0N7B02DFIXED IND 0.7NH 1.2A 0.03OHM SMD |
10,000 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 0.7 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
IRF36ER470KFIXED IND 47UH 340MA 1.22 OHM TH |
9,990 |
|
Datasheet |
IRF-36 | Axial | - | Active | - | Ferrite | 47 µH | ±10% | 340 mA | - | Unshielded | 1.22Ohm Max | 45 @ 2.52MHz | 6.3MHz | - | -20°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) | - |
|
|
LQG15WH2N5B02DFIXED IND 2.5NH 900MA 0.07OHM SM |
9,860 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.5 nH | ±0.1nH | 900 mA | - | Unshielded | 70mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH56NG02DFIXED IND 56NH 180MA 1.8OHM SMD |
9,825 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 56 nH | ±2% | 180 mA | - | Unshielded | 1.8Ohm Max | 22 @ 250MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH1N7B02DFIXED IND 1.7NH 1A 0.04OHM SMD |
9,610 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.7 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH27NG02DFIXED IND 27NH 230MA 1.3OHM SMD |
9,500 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 27 nH | ±2% | 230 mA | - | Unshielded | 1.3Ohm Max | 20 @ 250MHz | 1.7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH2N4B02DFIXED IND 2.4NH 1A 0.06OHM SMD |
9,290 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.4 nH | ±0.1nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH2N2B02DFIXED IND 2.2NH 1A 0.06OHM SMD |
9,220 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.2 nH | ±0.1nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH47NG02DFIXED IND 47NH 190MA 1.6OHM SMD |
8,829 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 47 nH | ±2% | 190 mA | - | Unshielded | 1.6Ohm Max | 22 @ 250MHz | 1.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH2N3B02DFIXED IND 2.3NH 1A 0.07OHM SMD |
8,755 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.3 nH | ±0.1nH | 1 A | - | Unshielded | 70mOhm Max | 23 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH2N1B02DFIXED IND 2.1NH 1A 0.06OHM SMD |
8,712 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.1 nH | ±0.1nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH20NG02DFIXED IND 20NH 260MA 1.1OHM SMD |
8,240 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 20 nH | ±2% | 260 mA | - | Unshielded | 1.1Ohm Max | 20 @ 250MHz | 2.1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLF2012A1R5JTD25FIXED IND 1.5UH 80MA 400MOHM SMD |
7,952 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±5% | 80 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 100MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LQG15WH2N0B02DFIXED IND 2NH 1A 0.05OHM SMD |
7,750 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2 nH | ±0.1nH | 1 A | - | Unshielded | 50mOhm Max | 23 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF2012A1R2JTD25FIXED IND 1.2UH 80MA 350MOHM SMD |
7,675 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±5% | 80 mA | - | Shielded | 350mOhm Max | 45 @ 10MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
LQG15WH2N6B02DFIXED IND 2.6NH 900MA 0.07OHM SM |
7,553 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.6 nH | ±0.1nH | 900 mA | - | Unshielded | 70mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WH4N7B02DFIXED IND 4.7NH 800MA 0.11OHM SM |
6,849 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 4.7 nH | ±0.1nH | 800 mA | - | Unshielded | 110mOhm Max | 23 @ 250MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
