Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQPB322517T330KFIXED IND 33UH 420MA 1.008OHM SM |
2,164 |
|
- |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 420 mA | 470mA | Unshielded | 1.008Ohm Max | - | 9MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSXNE3030MKT6R8MNFIXED IND 6.8UH 890MA 228MOHM SM |
2,065 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 890 mA | 850mA | Shielded | 228mOhm Max | - | 43MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
AWCS0023171515NJ00INDUCTOR RF |
2,000 |
|
Datasheet |
AWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 600 mA | - | Unshielded | 170mOhm Max | 50 @ 500MHz | 3.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
AWCS0023171556NJ00INDUCTOR RF |
2,000 |
|
Datasheet |
AWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 500 mA | - | Unshielded | 340mOhm Max | 60 @ 500MHz | 1.55GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
LSQPB322517T680KFIXED IND 68UH 300MA 1.68OHM SMD |
2,000 |
|
- |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±10% | 300 mA | 330mA | Unshielded | 1.68Ohm Max | - | 6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|

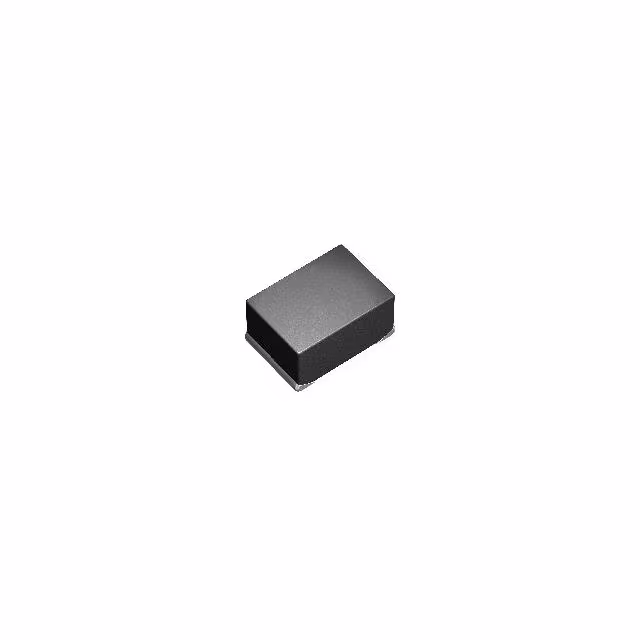

LSAPB2016KKTR33MFIXED IND 330NH 3.5A 30 MOHM SMD |
2,000 |
|
Datasheet |
LSAP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 3.5 A | 4.7A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSQPA201616T4R7MFIXED IND 4.7UH 530MA 481MOHM SM |
2,000 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 530 mA | 550mA | Unshielded | 481mOhm Max | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPA201616T6R8MFIXED IND 6.8UH 450MA 767MOHM SM |
2,000 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 450 mA | 450mA | Unshielded | 767mOhm Max | - | 38MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQPB322517T220KFIXED IND 22UH 470MA 828MOHM SMD |
2,000 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 470 mA | 550mA | Unshielded | 828mOhm Max | - | 13MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSXNE3030MKT1R0NNFIXED IND 1UH 1.71A 57.6MOHM SMD |
1,990 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.71 A | 2.2A | Shielded | 57.6mOhm Max | - | 111MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSQPA201616T220MFIXED IND 22UH 240MA 2.34OHM SMD |
1,990 |
|
- |
LSQP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 240 mA | 250mA | Unshielded | 2.34Ohm Max | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
|
AWCS00231715R39J00INDUCTOR RF |
1,980 |
|
Datasheet |
AWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 290 mA | - | Unshielded | 1.5Ohm Max | 48 @ 250MHz | 560MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
LSQPB322517T3R3MFIXED IND 3.3UH 1.2A 144MOHM SMD |
1,976 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.2 A | 1.45A | Unshielded | 144mOhm Max | - | 140MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSQPB322517T150KFIXED IND 15UH 530MA 684MOHM SMD |
1,965 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 530 mA | 700mA | Unshielded | 684mOhm Max | - | 20MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSXNE3030MKT150MNFIXED IND 15UH 570MA 540MOHM SMD |
1,953 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 570 mA | 530mA | Shielded | 540mOhm Max | - | 26MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSXNE3030MKT1R5NNFIXED IND 1.5UH 1.6A 66 MOHM SMD |
1,940 |
|
- |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 1.6 A | 1.7A | Shielded | 66mOhm Max | - | 95MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LSQPB322517T220MFIXED IND 22UH 470MA 690MOHM SMD |
1,931 |
|
- |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 470 mA | 550mA | Unshielded | 828mOhm Max | - | 13MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSQPB322517TR27MFIXED IND 270NH 2.85A 28.6 MOHM |
1,845 |
|
- |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 270 nH | ±20% | 2.85 A | 4.5A | Unshielded | 28.6mOhm Max | - | 390MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSQPB322517T6R8MFIXED IND 6.8UH 770MA 324MOHM SM |
1,650 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 770 mA | 1.05A | Unshielded | 324mOhm Max | - | 90MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSXNE3030MKT3R3MNFIXED IND 3.3UH 1.21A 120MOHM SM |
1,575 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.21 A | 1.2A | Shielded | 120mOhm Max | - | 61MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
