Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXNE3030MKT220MNFIXED IND 22UH 500MA 756MOHM SMD |
1,520 |
|
Datasheet |
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 500mA | Shielded | 756mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
AWCS00231715R22J00INDUCTOR RF |
1,444 |
|
Datasheet |
AWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 50 @ 250MHz | 850MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
LSQPB322517T150MFIXED IND 15UH 530MA 570MOHM SMD |
1,375 |
|
- |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 530 mA | 700mA | Unshielded | 684mOhm Max | - | 20MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LSQPB322517T100MFIXED IND 10UH 700MA 350MOHM SMD |
1,360 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 700 mA | 900mA | Unshielded | 420mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LRW0603WC4N7GG001EFIXED IND 4.7NH 700MA 110MOHM SM |
100,687 |
|
Datasheet |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±0.2nH | 700 mA | - | Unshielded | 110mOhm Max | 60 @ 900MHz | 5.8GHz | - | -40°C ~ 125°C | 900 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
LQG15WZ1N0B02DFIXED IND 1NH 1.2A 0.03OHM SMD |
29,723 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
LQG15WZ8N7G02DFIXED IND 8.7NH 550MA 0.17OHM SM |
29,654 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 8.7 nH | ±2% | 550 mA | - | Unshielded | 170mOhm Max | 23 @ 250MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

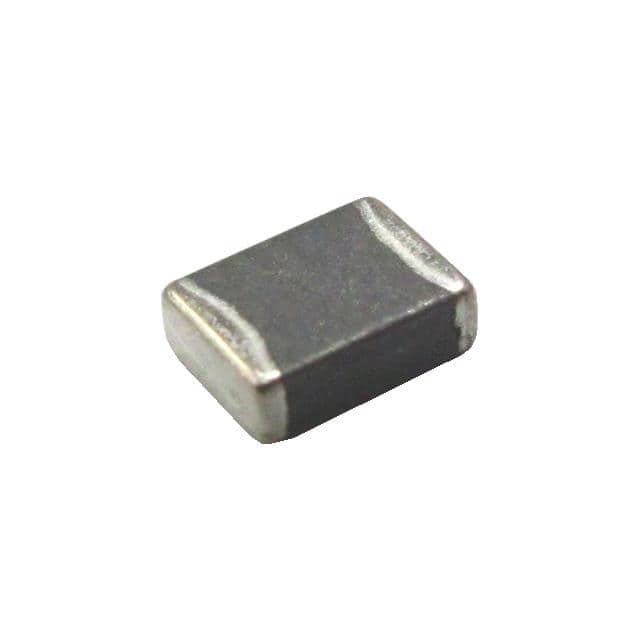

BKPE001608DZ2R2MA6INDUCTOR POWER |
21,930 |
|
Datasheet |
BKPE | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 700 mA | 300mA | Shielded | 380mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
PE-0805CLH1R0STSFIXED IND 1UH 1.15A 143MOHM SMD |
21,259 |
|
Datasheet |
0805CLH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | - | 1.15 A | 800mA | Shielded | 143mOhm Max | - | 75MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.083" L x 0.049" W (2.10mm x 1.25mm) | 0.039" (1.00mm) |
 MHQ Series.jpg)
|
MHQ1005PR10GTD25FIXED IND 100NH 150MA 2.5OHM SMD |
20,000 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 100 nH | ±2% | 150 mA | - | Unshielded | 2.5Ohm Max | 23 @ 250MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005PR12GTD25FIXED IND 120NH 140MA 2.7OHM SMD |
20,000 |
|
Datasheet |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 120 nH | ±2% | 140 mA | - | Unshielded | 2.7Ohm Max | 22 @ 250MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQG15WZ2N3B02DFIXED IND 2.3NH 1A 0.07OHM SMD |
19,111 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.3 nH | ±0.1nH | 1 A | - | Unshielded | 70mOhm Max | 23 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MHQ1005P7N5GTD25FIXED IND 7.5NH 600MA 160MOHM SM |
17,212 |
|
Datasheet |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 7.5 nH | ±2% | 600 mA | - | Unshielded | 160mOhm Max | 23 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQG15WZ16NG02DFIXED IND 16NH 260MA 0.8OHM SMD |
15,645 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 16 nH | ±2% | 260 mA | - | Unshielded | 800mOhm Max | 20 @ 250MHz | 2.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ33NG02DFIXED IND 33NH 220MA 1.5OHM SMD |
11,416 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 33 nH | ±2% | 220 mA | - | Unshielded | 1.5Ohm Max | 20 @ 250MHz | 1.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ2N4B02DFIXED IND 2.4NH 1A 0.06OHM SMD |
10,367 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.4 nH | ±0.1nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ6N2B02DFIXED IND 6.2NH 700MA 0.13OHM SM |
9,750 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 6.2 nH | ±0.1nH | 700 mA | - | Unshielded | 130mOhm Max | 23 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ47NG02DFIXED IND 47NH 190MA 1.6OHM SMD |
9,630 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 47 nH | ±2% | 190 mA | - | Unshielded | 1.6Ohm Max | 22 @ 250MHz | 1.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ3N2B02DFIXED IND 3.2NH 900MA 0.09OHM SM |
9,518 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.2 nH | ±0.1nH | 900 mA | - | Unshielded | 90mOhm Max | 23 @ 250MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ18NG02DFIXED IND 18NH 260MA 0.8OHM SMD |
9,330 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 18 nH | ±2% | 260 mA | - | Unshielded | 800mOhm Max | 22 @ 250MHz | 2.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
