Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSXND4040MKL150MDGFIXED IND 15UH 750MA 312MOHM SMD |
4,470 |
|
- |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 750 mA | 650mA | Shielded | 312mOhm Max | - | 24MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSXND4040MKL4R7MDGFIXED IND 4.7UH 1.5A 114MOHM SMD |
4,405 |
|
Datasheet |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 1.2A | Shielded | 114mOhm Max | - | 45MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|

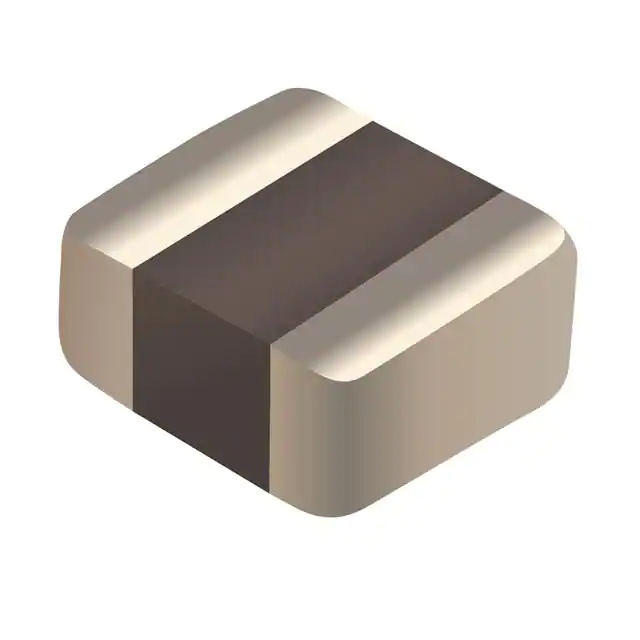

SRP2010DPA-R47MIND,2X1.6X1MM,0.47UH20%,3.6A,SHD |
4,110 |
|
Datasheet |
SRP2010DPA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 3.6 A | 4.5A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ASCH00160808R18J00INDUCTOR RF |
4,000 |
|
Datasheet |
ASCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 180 nH | ±5% | 250 mA | - | Shielded | 1.9Ohm Max | 8 @ 100MHz | 520MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
AISC-Q0603-33NG-TFIXED IND 33NH 600MA 0.22OHM SMD |
4,000 |
|
Datasheet |
AISC-Q0603 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±2% | 600 mA | - | Unshielded | 220mOhm Max | 40 @ 250MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-Q0603-22NG-TFIXED IND 22NH 700MA 0.19OHM SMD |
4,000 |
|
Datasheet |
AISC-Q0603 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 22 nH | ±2% | 700 mA | - | Unshielded | 190mOhm Max | 38 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
HTEB20120F-1R0MDRIND SMD 1.0UH HOT PRESSED CHOKE |
4,000 |
|
Datasheet |
HTEB20120F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 1 A | 1.71A | Unshielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
AISC-Q0603-10NG-TFIXED IND 10NH 700MA 0.13OHM SMD |
3,950 |
|
Datasheet |
AISC-Q0603 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±2% | 700 mA | - | Unshielded | 130mOhm Max | 31 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
HTEB16080F-1R5MSRIND SMD 1.5UH HOT PRESSED CHOKE |
3,740 |
|
Datasheet |
HTEB16080F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 700 mA | 900mA | Unshielded | 480mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
LSXND4040MKL6R8MDGFIXED IND 6.8UH 1.3A 150MOHM SMD |
3,660 |
|
- |
LSXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.3 A | 900mA | Shielded | 150mOhm Max | - | 35MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
F1C1-252012-1R5MFIXED IND 1.5 UH 3.2A 50 MOHM |
3,000 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 3.2 A | 4.1A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
F1C1-201612-2R2MFIXED IND 2.2UH 2.9A 90 MOHM |
2,915 |
|
Datasheet |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 2.9 A | 2.7A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
F1C1-252012-R15MFIXED IND 0.15 UH 10.0A 11 MOHM |
2,865 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 10 A | 12A | Shielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
F1C1-252012-R82MFIXED IND 0.82 UH 5.3A 24 MOHM |
2,700 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 5.3 A | 5.8A | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
F1C1-252012-R22MFIXED IND 0.22 UH 7.6A 14 MOHM |
2,490 |
|
Datasheet |
F1C1-2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 7.6 A | 9A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
MLF2012A3R3JTD25FIXED IND 3.3UH 50MA 600MOHM SMD |
2,228 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±5% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 60MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
AOTA-B252010SR33MTFIXED IND 0.33UH 5.0A 16MOHM SMD |
1,739 |
|
Datasheet |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 5 A | 7.5A | Shielded | 16mOhm Max | - | 95MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
SRP2010DPA-2R2MIND,2X1.6X1MM,2.2UH20%,1.6A,SHD |
1,497 |
|
Datasheet |
SRP2010DPA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 1.6 A | 2.2A | Shielded | 168mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
AOTA-B252010SR68MTFIXED IND 0.68UH 4.5A 29MOHM SMD |
1,485 |
|
Datasheet |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 4.5 A | 5.8A | Shielded | 29mOhm Max | - | 63MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BKPB002520101R0MA6INDUCTOR POWER |
24,000 |
|
Datasheet |
BKPB | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.5 A | 900mA | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
