Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7444011480220FIXED IND 22UH 8A 10 MOHM TH |
201 |
|
Datasheet |
WE-HIDA | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 8 A | 6.5A | Unshielded | 10mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.315" W (14.00mm x 8.00mm) | 0.630" (16.00mm) |
|
74434301213220FIXED IND 22UH 4A 50 MOHM SMD |
137 |
|
Datasheet |
WE-LHMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±15% | 4 A | 15A | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.543" W (13.80mm x 13.80mm) | 0.406" (10.30mm) |
|
SRP2313AA-4R7MFIXED IND 4.7UH 44A 2.2 MOHM SMD |
1,232 |
|
Datasheet |
SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 44 A | 34A | Shielded | 2.2mOhm Max | 40 @ 100kHz | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
SRP2313AA-230MFIXED IND 23UH 18A 11 MOHM SMD |
542 |
|
Datasheet |
SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 23 µH | ±20% | 18 A | 14A | Shielded | 11mOhm Max | 30 @ 100kHz | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|

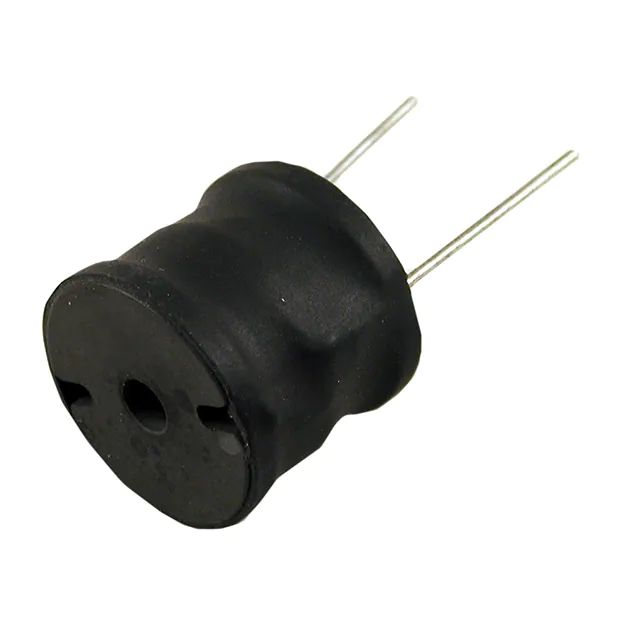

1539M03FIXED IND 25UH 8A 23 MOHM TH |
490 |
|
Datasheet |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 25 µH | ±10% | 8 A | - | Unshielded | 23mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|

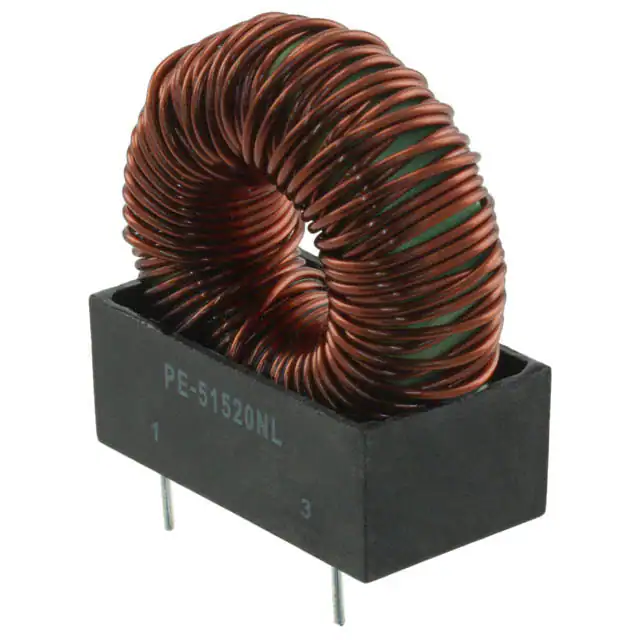

PE-51520NLFIXED IND 400UH 3.6A 130 MOHM TH |
778 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 400 µH | - | 3.6 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|
DC780R-154KFIXED IND 150UH 4A 98 MOHM TH |
962 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 4 A | 8.9A | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
SH150C-2.22-114FIXED IND 114UH 2.22A 100MOHM TH |
3,838 |
|
Datasheet |
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 114 µH | ±20% | 2.22 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
|
DC780R-332LFIXED IND 3.3UH 11.4A 5 MOHM TH |
177 |
|
Datasheet |
DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±15% | 11.4 A | 60A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
B82559A3152A024FIXED IND 1.5UH 47.1A 0.65 MOHM |
282 |
|
Datasheet |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 47.1 A | 79.3A | Shielded | 0.65mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.504" (12.80mm) |
|

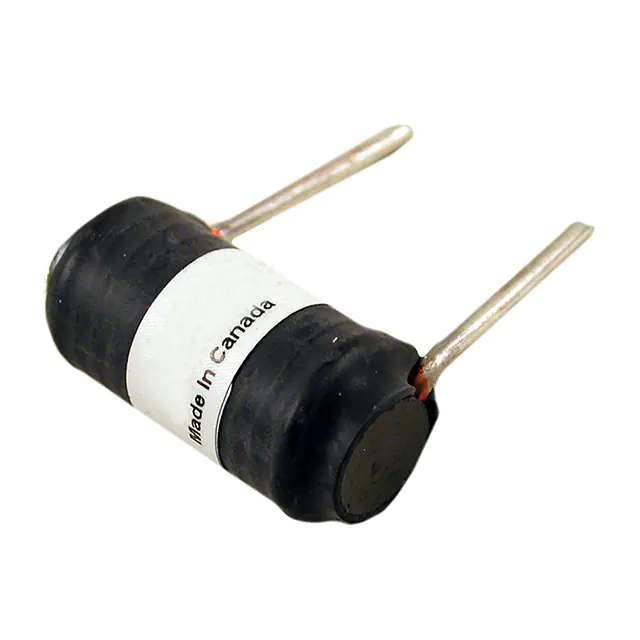

1538M11FIXED IND 50UH 8A 28 MOHM TH |
152 |
|
Datasheet |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 8 A | - | Unshielded | 28mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.120" L (22.35mm x 28.45mm) | - |
|
|
B82559A6472A024FIXED IND 4.7UH 37.3A 1.25 MOHM |
1,890 |
|
Datasheet |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 37.3 A | 46.4A | Shielded | 1.25mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.972" L x 0.898" W (24.70mm x 22.80mm) | 0.734" (18.65mm) |
|
1130-121K-RCFIXED IND 120UH 7.2A 46 MOHM TH |
6,676 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 7.2 A | - | Unshielded | 46mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-100K-RCFIXED IND 10UH 17A 6 MOHM TH |
2,105 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 17 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

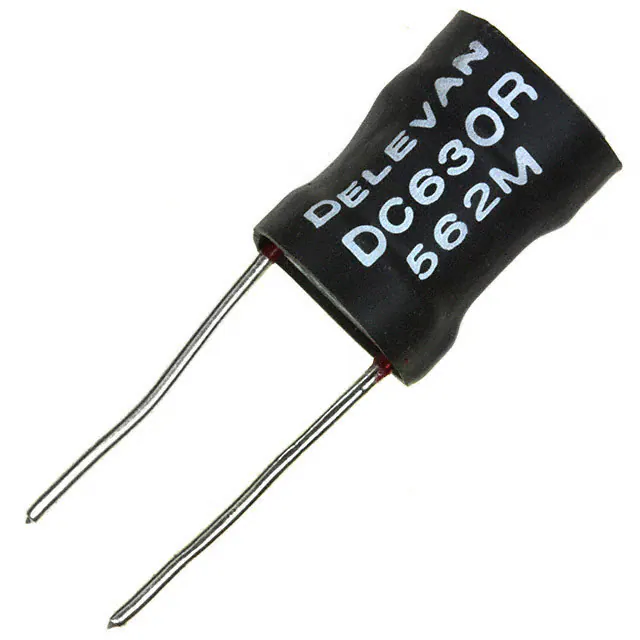

DC630R-562MFIXED IND 5.6UH 11.7A 7 MOHM TH |
307 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 11.7 A | 29A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

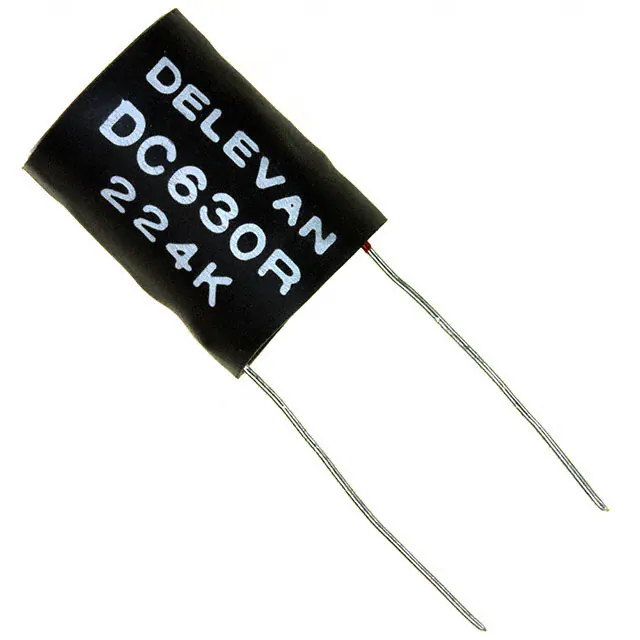

DC630R-224KFIXED IND 220UH 2.42A 168MOHM TH |
1,052 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 2.42 A | 4.6A | Unshielded | 168mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

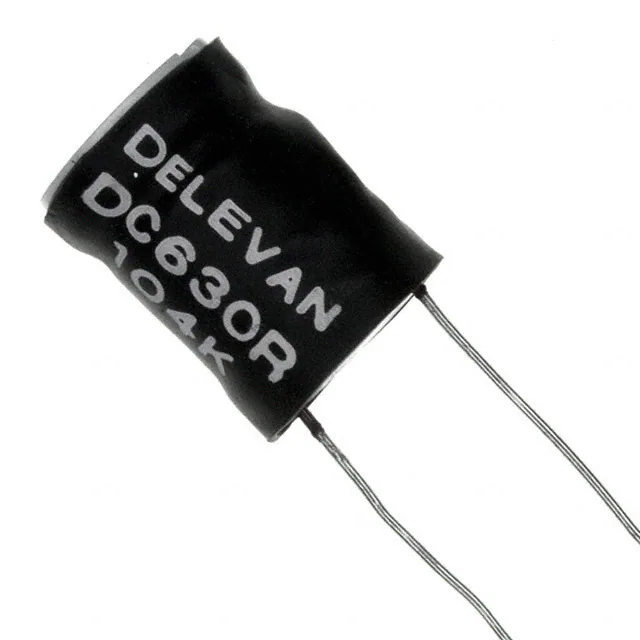

DC630R-104KFIXED IND 100UH 3.21A 95 MOHM TH |
864 |
|
Datasheet |
DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 3.21 A | 6.8A | Unshielded | 95mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

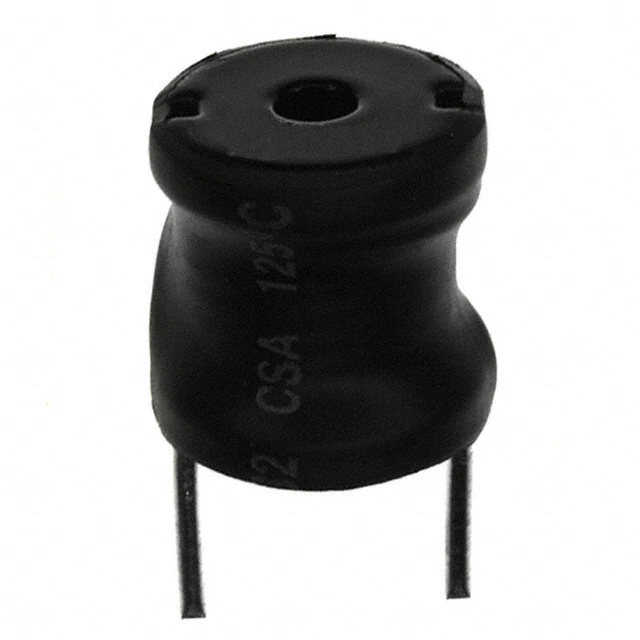

1120-4R7M-RCFIXED IND 4.7UH 11.4A 5 MOHM TH |
664 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 11.4 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-101K-RCFIXED IND 100UH 4A 80 MOHM TH |
563 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | - | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1120-271K-RCFIXED IND 270UH 2A 213 MOHM TH |
420 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 2 A | - | Unshielded | 213mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
