Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4922R-48LFIXED IND 8.2MH 77MA 66 OHM SMD |
3,082 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±15% | 77 mA | 77mA | Unshielded | 66Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-49LFIXED IND 10MH 71MA 74 OHM SMD |
2,113 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±15% | 71 mA | 71mA | Unshielded | 74Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
S1812R-474JFIXED IND 470UH 91MA 24 OHM SMD |
1,500 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±5% | 91 mA | - | Shielded | 24Ohm Max | 40 @ 790kHz | 3.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.189" L x 0.134" W (4.80mm x 3.40mm) | 0.134" (3.40mm) |
|

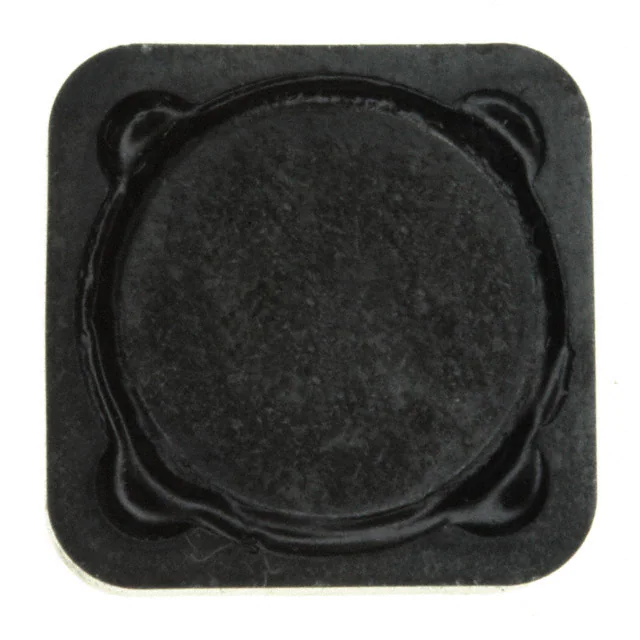

SPD127R-334MFIXED IND 330UH 1A 620 MOHM SMD |
5,869 |
|
Datasheet |
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1 A | 1A | Shielded | 620mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127R-563MFIXED IND 56UH 2.3A 120 MOHM SMD |
1,590 |
|
Datasheet |
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.3 A | 2.3A | Shielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
SPD127R-224MFIXED IND 220UH 1.2A 390MOHM SMD |
330 |
|
Datasheet |
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 1.2A | Shielded | 390mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
HCV1206-1R0-RFIXED IND 1UH 14A 4.6 MOHM SMD |
0 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 14 A | 24.5A | Unshielded | 4.6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
5729-RCFIXED IND 100UH 2.5A 80 MOHM TH |
1,040 |
|
Datasheet |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±15% | 2.5 A | - | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.850" Dia x 0.360" W (21.59mm x 9.14mm) | - |
|

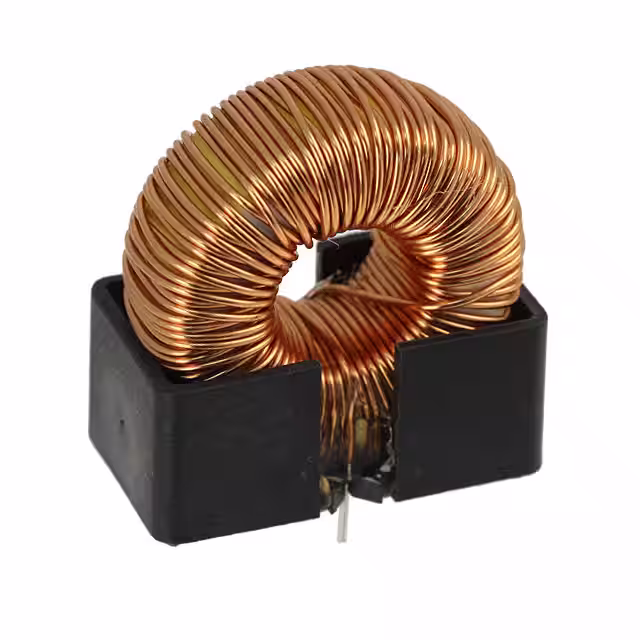

PE-53120NLFIXED IND 1MH 950MA 240 MOHM TH |
477 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
1008R-221KFIXED IND 220NH 1.055A 135 MOHM |
3,487 |
|
Datasheet |
1008R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±10% | 1.055 A | - | Unshielded | 135mOhm Max | 40 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.105" L x 0.095" W (2.66mm x 2.41mm) | 0.095" (2.41mm) |
|

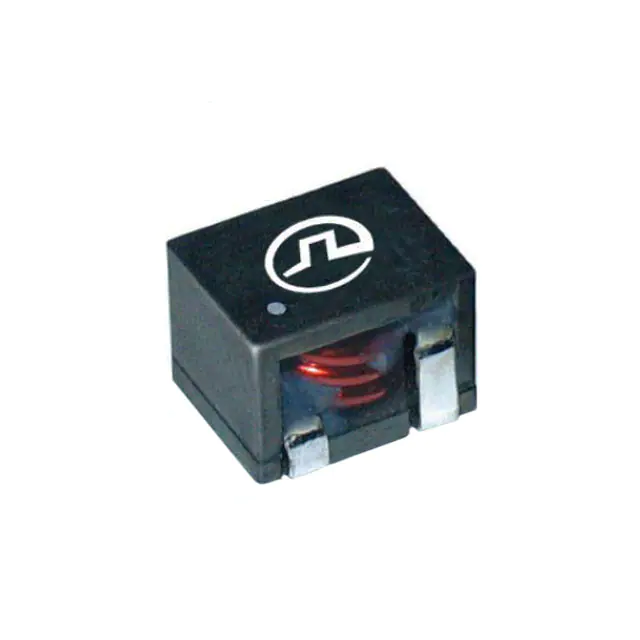

PG1096.223NLTPULSE XFMR 19.5UH |
304 |
|
Datasheet |
PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 19.5 µH | ±20% | 17 A | 19A | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
SH50S-1.4-176FIXED IND 176UH 1.4A 140MOHM SMD |
1,422 |
|
Datasheet |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 176 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.411" (10.45mm) |
|
|
SH50S-1.4-220FIXED IND 220UH 1.4A 380MOHM SMD |
546 |
|
Datasheet |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
.jpg)
|
AIRD-03-470KFIXED IND 47UH 9A 24 MOHM TH |
416 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 9 A | 19A | Unshielded | 24mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
|
AIRD-03-820KFIXED IND 82UH 9A 32 MOHM TH |
350 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 9 A | 14A | Unshielded | 32mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
IHTH0750IZEB1R0M5AFIXED IND 1UH 66A 0.92 MOHM TH |
102 |
|
Datasheet |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 1 µH | ±20% | 66 A | 44A | Shielded | 0.92mOhm Max | - | 35.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.755" Dia (19.18mm) | 0.354" (8.99mm) |
|

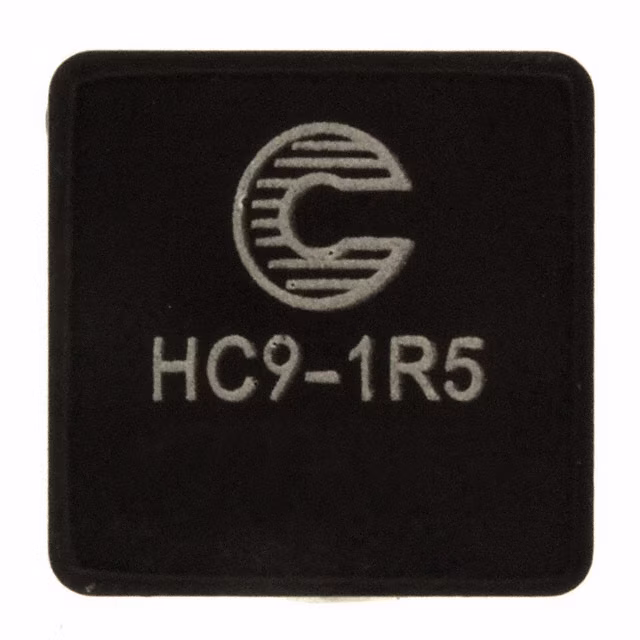

HC9-1R5-RFIXED IND 1.5UH 21A 2.27MOHM SMD |
483 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±15% | 21 A | 32A | Unshielded | 2.27mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | 0.295" (7.50mm) |
|
8532R-17LFIXED IND 22UH 2.66A 50 MOHM SMD |
1,644 |
|
Datasheet |
8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±15% | 2.66 A | 1.4A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | 0.286" (7.26mm) |
|

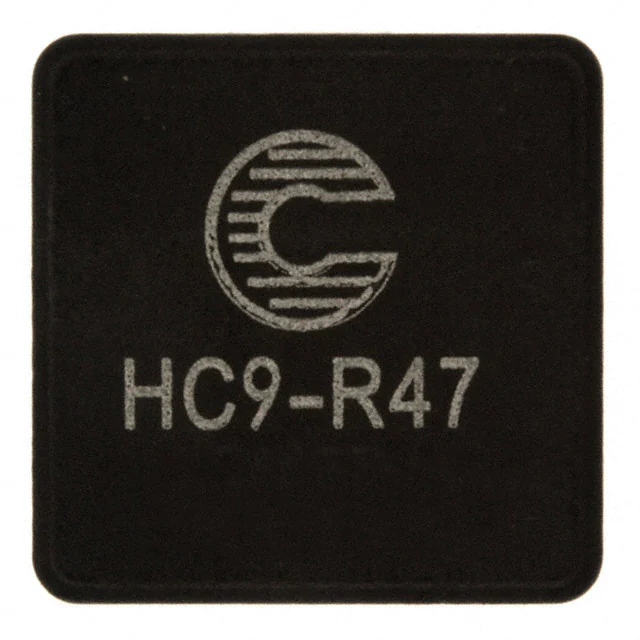

HC9-R47-RFIXED IND 470NH 33.7A 0.88 MOHM |
827 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±15% | 33.7 A | 57A | Unshielded | 0.88mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | 0.295" (7.50mm) |
|
2474R-13LFIXED IND 10UH 3.27A 33 MOHM TH |
2,100 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±15% | 3.27 A | 2A | Unshielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
