Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74439370082FIXED IND 8.2UH 13A 6.5MOHM SMD |
324 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 8.2 µH | ±20% | 13 A | 44A | Shielded | 6.5mOhm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|

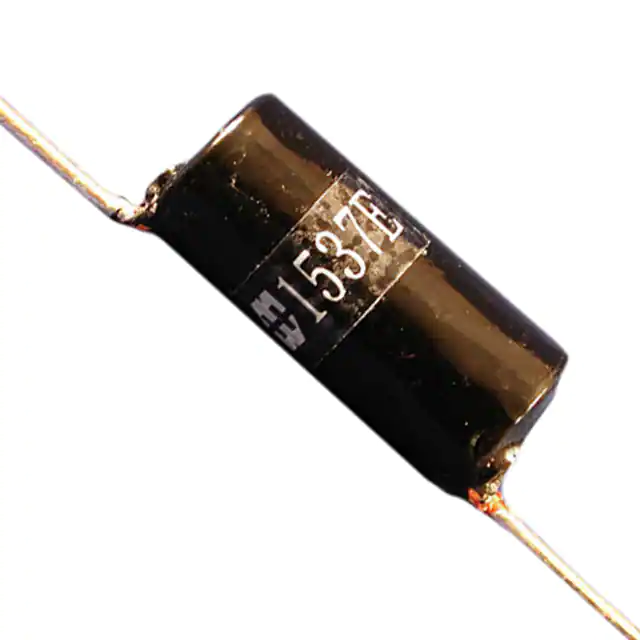

1537EFIXED IND 10UH 20A 6 MOHM TH |
587 |
|
Datasheet |
1537 | Axial | Bulk | Active | Molded | Ferrite | 10 µH | ±5% | 20 A | - | Unshielded | 6mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.630" Dia x 1.250" L (16.00mm x 31.75mm) | - |
|
M83446/39-39FFIXED IND 15UH 283MA 2.5 OHM SMD |
308 |
|
Datasheet |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±5% | 283 mA | - | Unshielded | 2.5Ohm Max | 50 @ 2.5MHz | 17MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

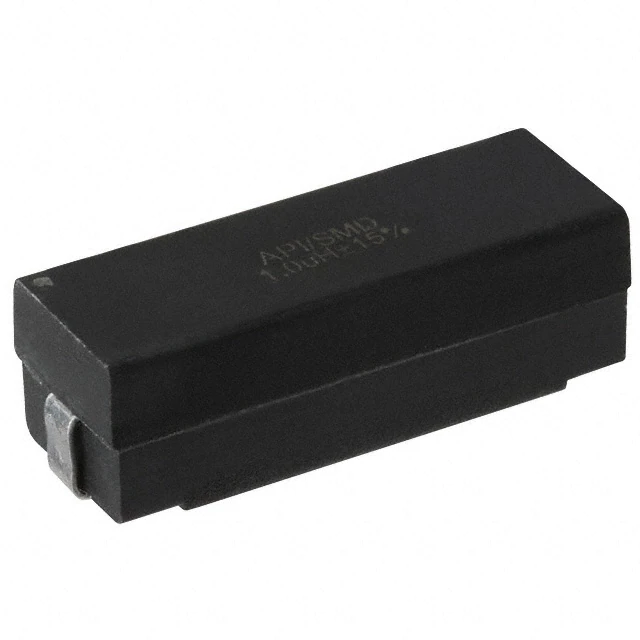

8532R-25LFIXED IND 100UH 1.3A 208MOHM SMD |
1,254 |
|
Datasheet |
8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 1.3 A | 640mA | Unshielded | 208mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | 0.286" (7.26mm) |
|
74435580330FIXED IND 3.3UH 29A 1.7 MOHM SMD |
278 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±20% | 29 A | 45A | Shielded | 1.7mOhm | - | 26.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
74435580820FIXED IND 8.2UH 25.5A 2.7MOHM SM |
267 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 8.2 µH | ±20% | 25.5 A | 30A | Shielded | 2.7mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
7443630220FIXED IND 2.2UH 28A 1.5 MOHM SMD |
339 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 2.2 µH | ±15% | 28 A | 52A | Shielded | 1.5mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|
|
7443630070FIXED IND 700NH 32A 0.83MOHM SMD |
110 |
|
Datasheet |
WE-HCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 700 nH | ±15% | 32 A | 75A | Shielded | 0.83mOhm | - | 65MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.551" (14.00mm) |
|

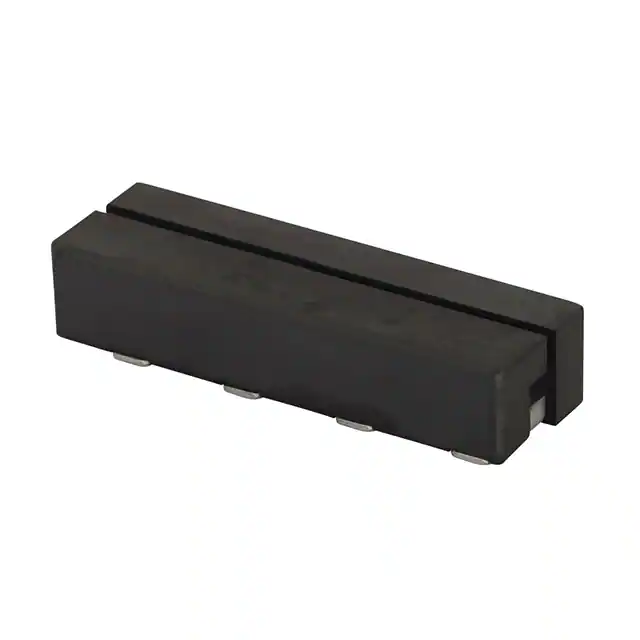

CLB1108-4-50TR-RFIXED IND 200NH 0.00028OHM SMD |
366 |
|
Datasheet |
CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±20% | - | 25A | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 0.315" (8.00mm) |
|

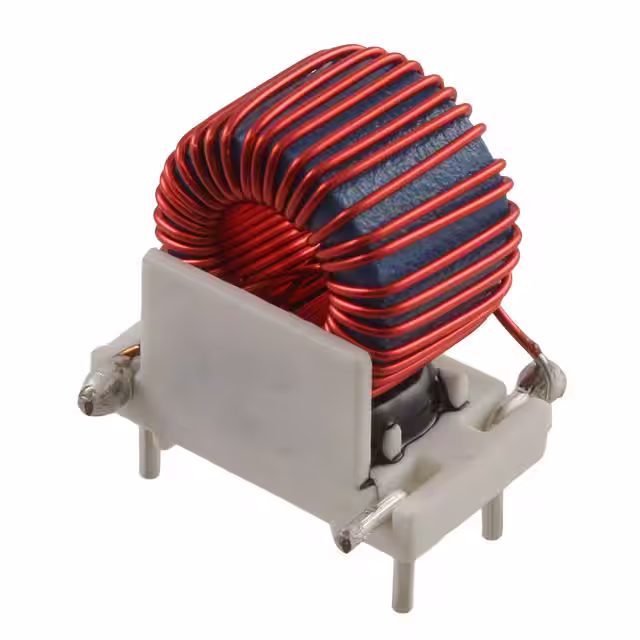

CTX100-1-52M-RFIXED IND 100UH 2.5A 106 MOHM TH |
186 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 2.5 A | 2.4A | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.776" (19.70mm) |
|
B82559A1042A025FIXED IND 440NH 0.2 MOHM SMD |
241 |
|
Datasheet |
ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 440 nH | ±7% | - | 71A | Shielded | 0.2mOhm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.352" (8.95mm) |
|
2474R-39LFIXED IND 1.5MH 340MA 3 OHM TH |
2,025 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 1.5 mH | ±15% | 340 mA | 160mA | Unshielded | 3Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|

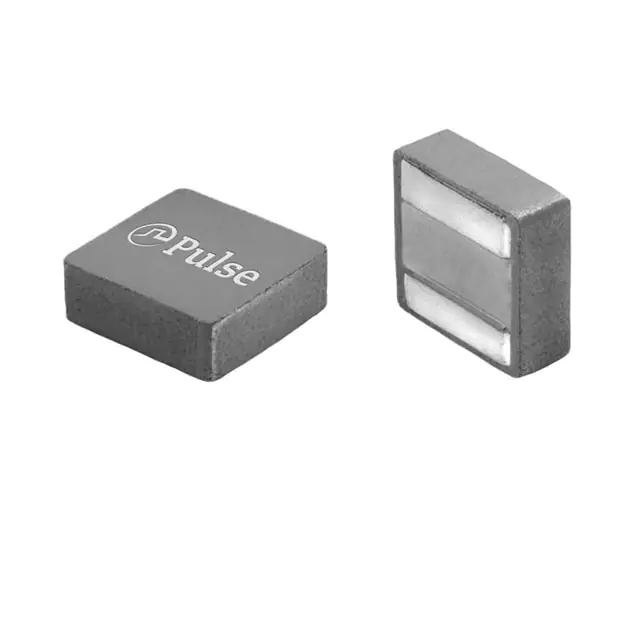

PA2247.223NLTFIXED IND 22UH 16A 15.8MOHM SMD |
534 |
|
Datasheet |
PA2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 16 A | 18A | Unshielded | 15.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|
B82559A7103A020FIXED IND 10UH 3.9 MOHM SMD |
902 |
|
Datasheet |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | - | 18.3A | Shielded | 3.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.437" (11.10mm) |
|
SH50C-2.0-470FIXED IND 470UH 2A 170 MOHM TH |
36,038 |
|
Datasheet |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 2 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
HC2LP-1R0-RFIXED IND 1UH 33A 1.3 MOHM SMD |
169 |
|
Datasheet |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 33 A | 42.5A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|

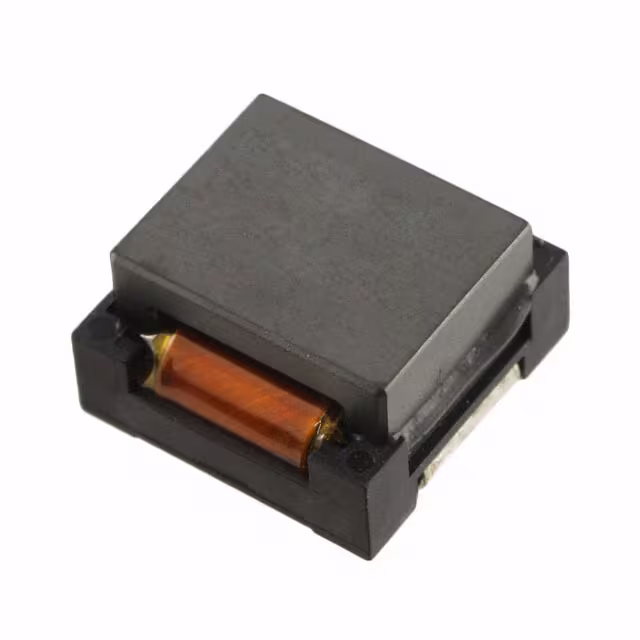

HC2LP-R68-RFIXED IND 680NH 52.9A 0.6MOHM SM |
128 |
|
Datasheet |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 52.9 A | 50A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|
B82559B2152A027FIXED IND 1.5UH 52.5A 0.46 MOHM |
574 |
|
Datasheet |
ERU27 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 52.5 A | 67A | Shielded | 0.46mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.094" L x 1.016" W (27.80mm x 25.80mm) | 0.482" (12.25mm) |
|
HCM1A1707-100-RFIXED IND 10UH 12A 10MOHM SMD |
313 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 12 A | 14A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
B82559A2102A020FIXED IND 1UH 0.65 MOHM SMD |
185 |
|
Datasheet |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | - | 50A | Shielded | 0.65mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.402" (10.20mm) |
